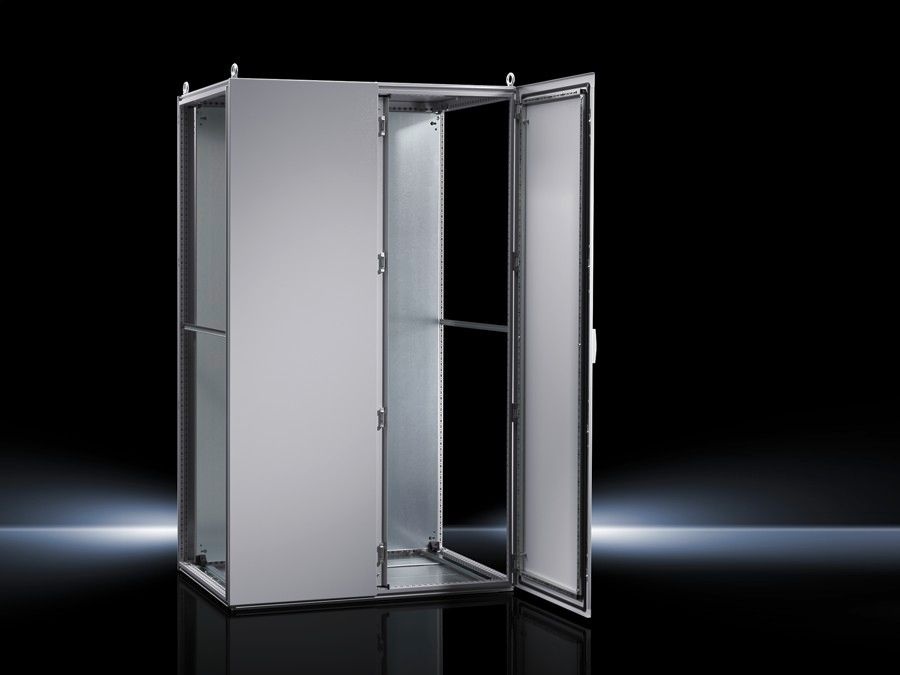

Rittal 8004500 Baying Enclosure System
Rittal 8004500 Baying Enclosure System
Part #:8004500
SKU #: 2196832
Key Features
Part #:8004500
SKU #: 2196832
Brand: Rittal
Capacity: 1400, 1400 kg
Finish: Dipcoat Primed/Powder Coated
NEMA Rating: NEMA 12/IP55/IK09
Series: TS/TS8
Type: Compact
- Full flexibility with the use of accessories, thanks to a fully symmetrical frame section, with identical accessories for the width and depth
- High protection category of up to IP66 NEMA 4/4X
- Bayable on all sides
- Door hinge is easily swapped to the opposite side without machining
- Automatic potential equalization via the assembly components with all enclosure panels and gland plates
- Enclosure has a high load bearing capacity of up to 1400 kg
- Simple, fast assembly of the mounting plate
- Slide rails may be removed and installed in the side frame section
- Effective space utilization by using the inner and outer mounting level of the frame section
- The integral enclosure protection channel prevents the ingress of dirt and water when the door is opened
- Maximum space for cable entry with multiple divided gland plates
- Optimum sealing, 4-point lock system
- 16-fold tubular frame system, flexible baying options and modular design
- Symmetrical profile in the width and depth, offers a significant space gain, plus simple interior installation
- Ensures bay ability from all sides
- Integral, automatic potential equalization of all enclosure panels and the triple surface treatment ensure optimum safety
Rittal 8004500 Baying Enclosure System
Rittal Baying Enclosure System, Compact, Series: TS/TS8, 39 in Width, 16 in Depth, NEMA 12/IP55/IK09, 4-Point Lock, 1400 kg, Freestanding Mount, Sheet Steel, Dipcoat Primed/Powder Coated, Light Gray
Additional Description: RTL -8004500 2000H1000W0400D TS DBL TXT RAL7035 8004500
Catalog Description: Baying systems TS 8, material: Enclosure frame: Sheet steel, 1.5 mm, Roof: Sheet steel, 1.5 mm, Door: Sheet steel, 2.0 mm, Rear panel: Sheet steel, 1.5 mm, surface: Enclosure frame: Dipcoat-primed, Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint, color: RAL 7035, supply includes: Enclosure frame, Door(s), Roof plate, Rear panel, detachable, 4 eyebolts, Lock: 3 mm double-bit, description: Baying systems TS 8 with mounting plate. Protection category IP 55.
