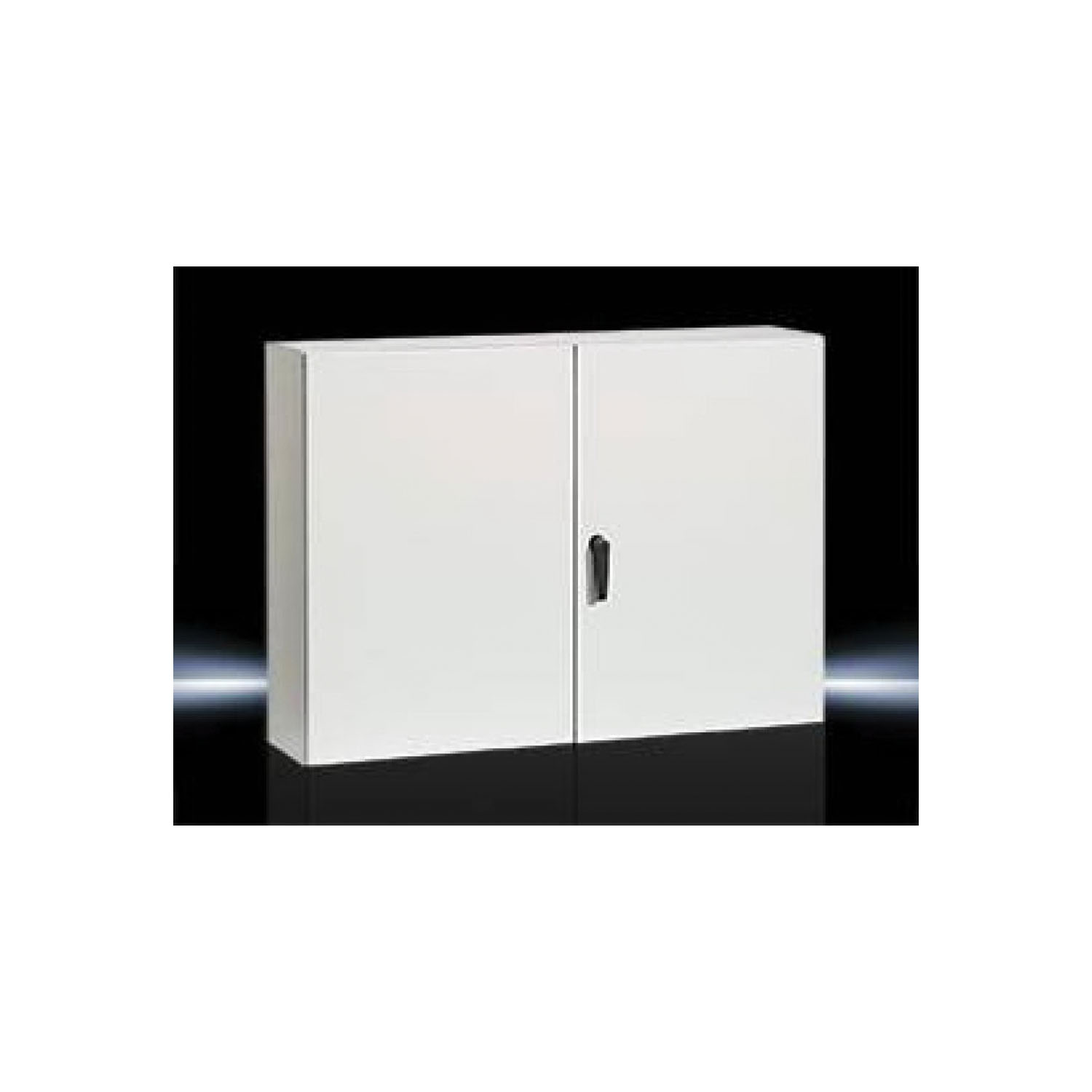

Rittal 8017564 Enclosure
Image Disclaimers Message
Rittal 8017564 Enclosure
Rittal 8017564 Enclosure
Part #:8017564
SKU #: 2125898
Key Features
Part #:8017564
SKU #: 2125898
Brand: Rittal
NEMA Rating: NEMA 12/IP55
Panel Size: 39 in W x 28 in H
Series: WM Series
Depth: 9.8 in
Length: 30 in
- These double door wall mount enclosures can be used for virtually any application
- The WM series ensures NEMA protection through a secure locking system, foamed in place gasket and knife edge sealing surface
- Cold rolled steel body and door and a zinc-plated mounting panel
- 0.08 in housing, door material THK
- 0.1 in mounting material THK
- 2 number of doors
- 3-point locking system
Rittal 8017564 Enclosure
Rittal Enclosure, Series: WM Series, 30 in Length, 41 in Width, 9.8 in Depth, NEMA 12/IP55, 39 in W x 28 in H Panel, Wall Mount, Carbon Steel
Additional Description: RTL -8017564 (N) WM304210NC WM 30X42X10 CARBON STEEL 7035 8017564 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Compact enclosures WM, material: Door: Sheet steel, all-round foamed-in PU seal, Enclosure: Sheet steel, surface: dipcoat-primed and powder-coated, textured paint, Mounting plate: Zinc-plated, color: RAL 7035, supply includes: Enclosure with door(s), Mounting plate, Rear wall mounting holes, description: These double door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a cold rolled steel body and door, and a zinc plated mounting panel.
