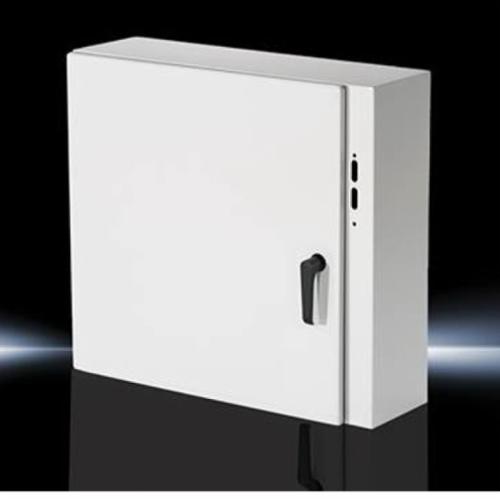

Rittal 8017592 Enclosure
Part Number # 8017592
SKU # 2124893
Rittal 8017592 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 8017592 |
| SKU #: | 2124893 |
| Finish: | Dip Coated Primed/Powder Coated, Dipcoat Primed/Powder Coated |
| Insulation: | Foamed-In PU Seal |
| NEMA Rating: | NEMA 4/IP66 |
| Panel Size: | 57 x 33, 57 x 33 in |
| Series: | WM Series |
| Type: | Compact |
| Color: | Light gray |
| Depth: | 300, 300 mm |
| Material: | Stainless Steel |
| Mounting type: | Wall |
| Width: | 975, 975 mm |
| UNSPSC: | 39121324 |
| UPC: | 00639889831698 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Rittal 8017592 Enclosure
Brand: Rittal
Part Number: 8017592
Rittal Enclosure, Compact, Series: WM Series, 975 mm Width, 300 mm D, NEMA 4/IP66, Hinged Cover, 57 x 33 in Panel, Foamed-In PU Seal, Wall Mount, Stainless Steel, Dipcoat Primed/Powder Coated, Light Gray
Additional Description: RTL -8017592 WM603812XC WM 60X38X12 FMD CARBON STEEL 703 8017592
Catalog Description: These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a cold rolled steel body and door, and a zinc plated mounting panel.
8017592 Item Features
- single-piece welded cold rolled steel body
- Left hand hinged door (the carbon steel single door configuration is reversible)
- Single door enclosures less than 20 in in height have one 1/4 turn latch with screwdriver insert
- Single door enclosures 20 to 40 in in height have two 1/4 turn latches with screwdriver inserts
- Single door enclosures greater than or equal to 42 in in height have a three-point latching tool to open L-handle
- Double door and disconnect enclosures have a three-point latching tool to open L-handle
- Wall mounting holes (carbon steel versions), blind riv-nuts (stainless steel versions)
- Foamed-in place gasket
- Slope top enclosures have a 20 deg sloped roof that overhangs the door
- Stainless steel 1.4301 (AISI 304) lock insert
- Multi-fold single piece body construction
- Brushed surface
- These flange mount disconnect wall mount enclosures can be used for virtually any application
- The WM series ensures NEMA protection through a secure locking system, foamed-in place gasket and knife edge sealing surface
- Dip coated primed and powder coated and textured paint
SKU #2124893Part Number #8017592UNSPSC39121324UPC00639889831698
