Rittal 8017644 Enclosure
Image Disclaimers Message
Rittal 8017644 Enclosure
Rittal 8017644 Enclosure
Part #:8017644
SKU #: 2125851
Key Features
Part #:8017644
SKU #: 2125851
Brand: Rittal
Finish: Brushed
Insulation: Polyurethane Seal
NEMA Rating: NEMA 12/3R/4X/IP55/IP66
Panel Size: 10 in W x 15 in H, 15 in H x 10 in W
Series: WM Series
- Door bars for wire management and component mounting
- Foam in place gasketing assures a continuous seal
- Removable hinge pins allow easy door removal for modification
- Opposite side has pre-drilled holes for convenient door reversal
- Ground provisions
- Panel depth adjustable mounting provisions
- Knife edge flange trough collar diverts liquids, dirt and dust
- Fully welded construction, powder coated RAL7035 light gray
- The WM series ensures NEMA protection through a secure locking system, foamed-in place gasket and knife edge sealing surface
- Stylish, modern design, outstanding strength, stability, protection against contaminates, dust protection
Rittal 8017644 Enclosure

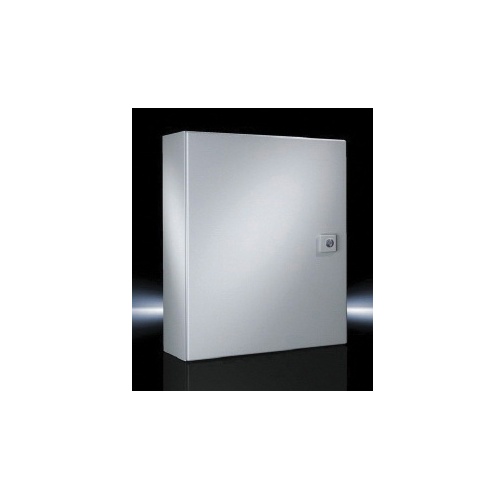

Rittal Enclosure, 1-Door Compact Non-Disconnect, Series: WM Series, 16 in Length, 12 in Width, 8 in Depth, NEMA 12/3R/4X/IP55/IP66 NEMA Rating, Left Hand Hinged Cover, 10 in W x 15 in H Panel, Lock: Quarter-Turn Latch, Polyurethane Seal Insulation, Wall Mounting, 316 Stainless Steel, Brushed, Light Gray
Additional Description: RTL -8017644 WM161208N6 WM161208N6 WM 16X12X08 316 #4 BRUSHED 8017644
Catalog Description: Compact enclosures WM, material: Door: T316 stainless steel, all-round foamed-in PU seal, Enclosure: T316 stainless steel, surface: Enclosure and door: Brushed, grain 240, Mounting plate: Zinc-plated, supply includes: Enclosure with door(s), L/h door hinge, Mounting plate, Rear wall mounting holes, description: These single door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a T316 stainless steel body and door, and a zinc plated mounting panel.
