Part Number # 8018630
SKU # 2218180
8018630

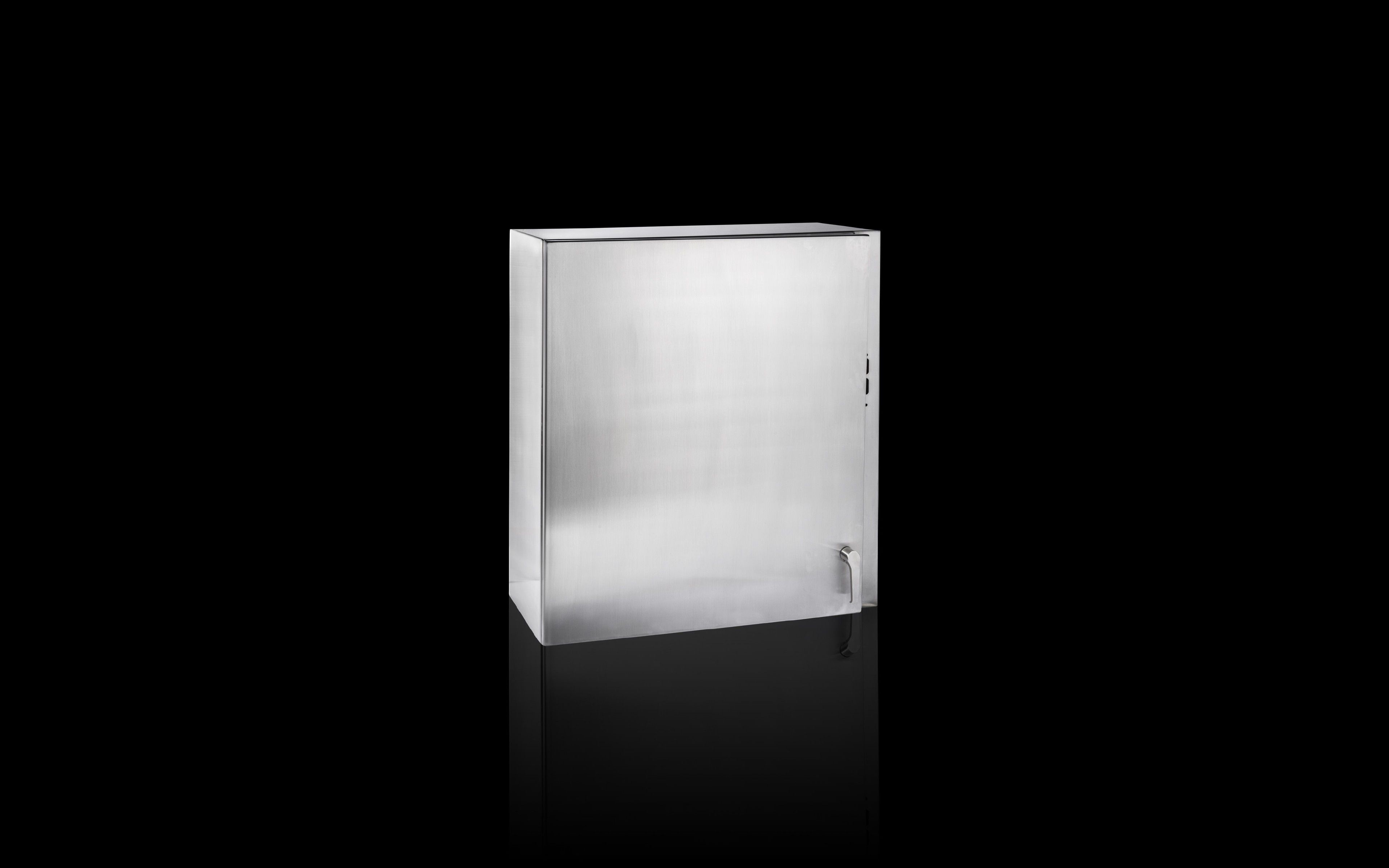

Rittal 8018630 WM Series 1-Door Compact Disconnect Enclosure
Part Number # 8018630
SKU # 2218180
$2605.84 / Each
Typical price:$4560.21 / Each
Rittal 8018630 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 8018630 |
| SKU #: | 2218180 |
| Finish: | Brushed |
| Insulation: | Polyurethane Seal |
| NEMA Rating: | NEMA 12/3R/4X/IP55/IP66 |
| Panel Size: | 33 in W x 45 in H |
| Series: | WM Series |
| Type: | 1-Door Compact Disconnect |
| Country of origin: | US |
| Depth: | 12 in |
| Length: | 48 in |
| Material: | 304 Stainless Steel |
| Mounting type: | Wall |
| Width: | 38 in |
| Manufacturer Name: | Rittal |
| UNSPSC: | 39121324 |
| UPC: | 00639889839489 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2605.84 / Each
Typical price:$4560.21 / Each
Quantity:
- Rittal Enclosure, 1-Door Compact Disconnect, Series: WM Series, 48 in Length, 38 in Width, 12 in Depth, NEMA 12/3R/4X/IP55/IP66, Left Hand Hinged Cover, 33 in W x 45 in H Panel, Lock: 3-Point Latch, Polyurethane Seal, Wall Mount, 304 Stainless Steel, Brushed, Light Gray
8018630 Specifications
- Door bars for wire management and component mounting
- Stylish, modern design, outstanding strength, stability, protection against contaminates, dust protection
- Foam in place gasketing assures a continuous seal
- Removable hinge pins allow easy door removal for modification
- Opposite side has pre-drilled holes for convenient door reversal
- Ground provisions
- Panel depth adjustable mounting provisions
- Knife edge flange trough collar diverts liquids, dirt and dust
- Fully welded construction, powder coated RAL7035 light gray
- The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket and knife edge sealing surface
8018630 Application
Industrial and Plant Floor Environment Applications8018630 Includes
Zinc Galvanized Mounting Panel, Door, Blind Rivet Nut, 3-Point Latch L-Handle8018630 Item Features
- Door bars for wire management and component mounting
- Foam in place gasketing assures a continuous seal
- Removable hinge pins allow easy door removal for modification
- Opposite side has pre-drilled holes for convenient door reversal
- Ground provisions
- Panel depth adjustable mounting provisions
- Knife edge flange trough collar diverts liquids, dirt and dust
- Fully welded construction, powder coated RAL7035 light gray
- The WM series ensures NEMA protection through a secure locking system, foamed-in place gasket and knife edge sealing surface
- Stylish, modern design, outstanding strength, stability, protection against contaminates, dust protection
8018630 Standards
cUL File No. E170282|UL ListedSKU #2218180Part Number #8018630UNSPSC39121324UPC00639889839489
Image provided may only be a representation of final product and may include optional equipment
