Brand: Rittal

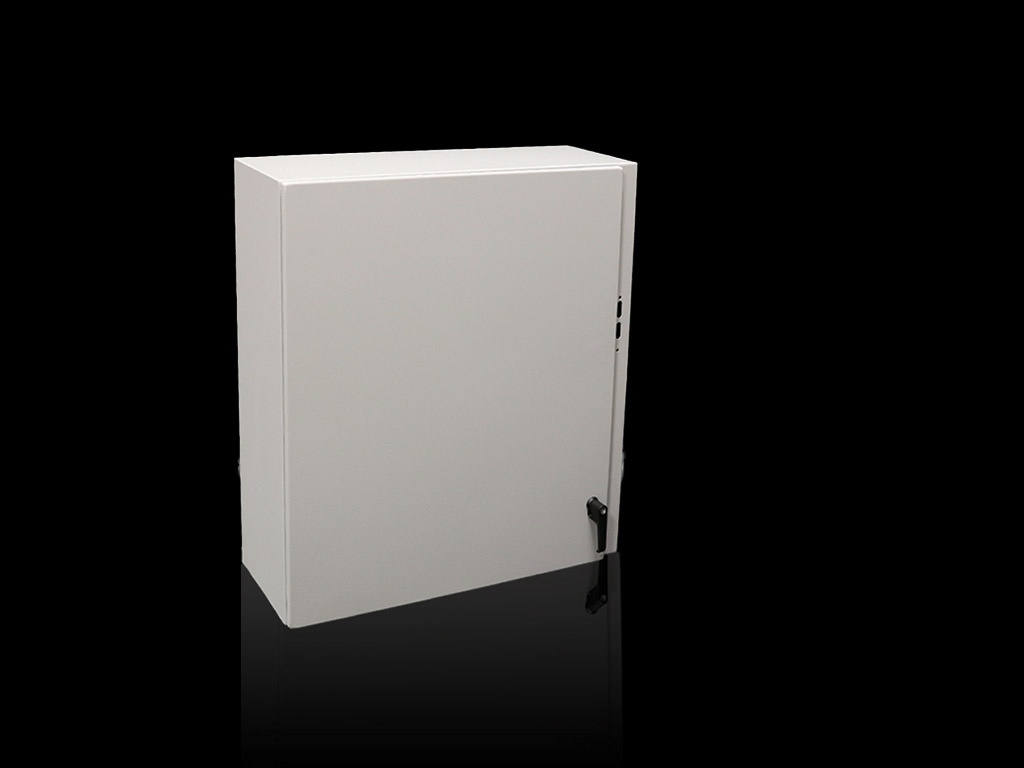

Rittal 8018979 WM Series 1-Door Disconnect Enclosure, 26 in W x 12 in D, NEMA 4 NEMA Rating, Carbon Steel
Image Disclaimers Message
Brand: Rittal
Rittal 8018979 WM Series 1-Door Disconnect Enclosure, 26 in W x 12 in D, NEMA 4 NEMA Rating, Carbon Steel
Brand: Rittal
Rittal 8018979 WM Series 1-Door Disconnect Enclosure, 26 in W x 12 in D, NEMA 4 NEMA Rating, Carbon Steel
Part #:8018979
SKU #: 2250091
$576.40/EA
Key Features
Part #:8018979
SKU #: 2250091
Brand: Rittal
Finish: Dipcoat Primed/Powder Coated
NEMA Rating: NEMA 4
Panel Size: 22 in W x 29 in H
Series: WM Series
Type: 1-Door Disconnect
$576.40/EA
- single-piece welded cold-rolled steel body
- Zinc plated mounting panel standard
- Foamed-in place gasket
- Quick-release hidden 130 deg door hinges
- Electrophoresis dip coated primer with powder coated surface
- Flange trough collar opening channels liquids and dust away from enclosure gasket and enclosure interior
- Left hand hinged door (the single door configuration is reversible)
- Wall mounting holes
- Single door enclosures 20 to 40 in H have two 1/4 turn latches with screwdriver inserts
Specifications
Brand: Rittal
Finish: Dipcoat Primed/Powder Coated
NEMA Rating: NEMA 4
Panel Size: 22 in W x 29 in H
Series: WM Series
Type: 1-Door Disconnect
Color: Light gray
Depth: 12 in
Material: Carbon Steel
Mounting type: Wall
Width: 26 in
UNSPSC: 39121321
UPC: 00063988985756
Rittal 8018979 WM Series 1-Door Disconnect Enclosure, 26 in W x 12 in D, NEMA 4 NEMA Rating, Carbon Steel
Additional Description: RTL -8018979 WM302612XC WM 30X26X12 FMD CARBON STEEL 7035
