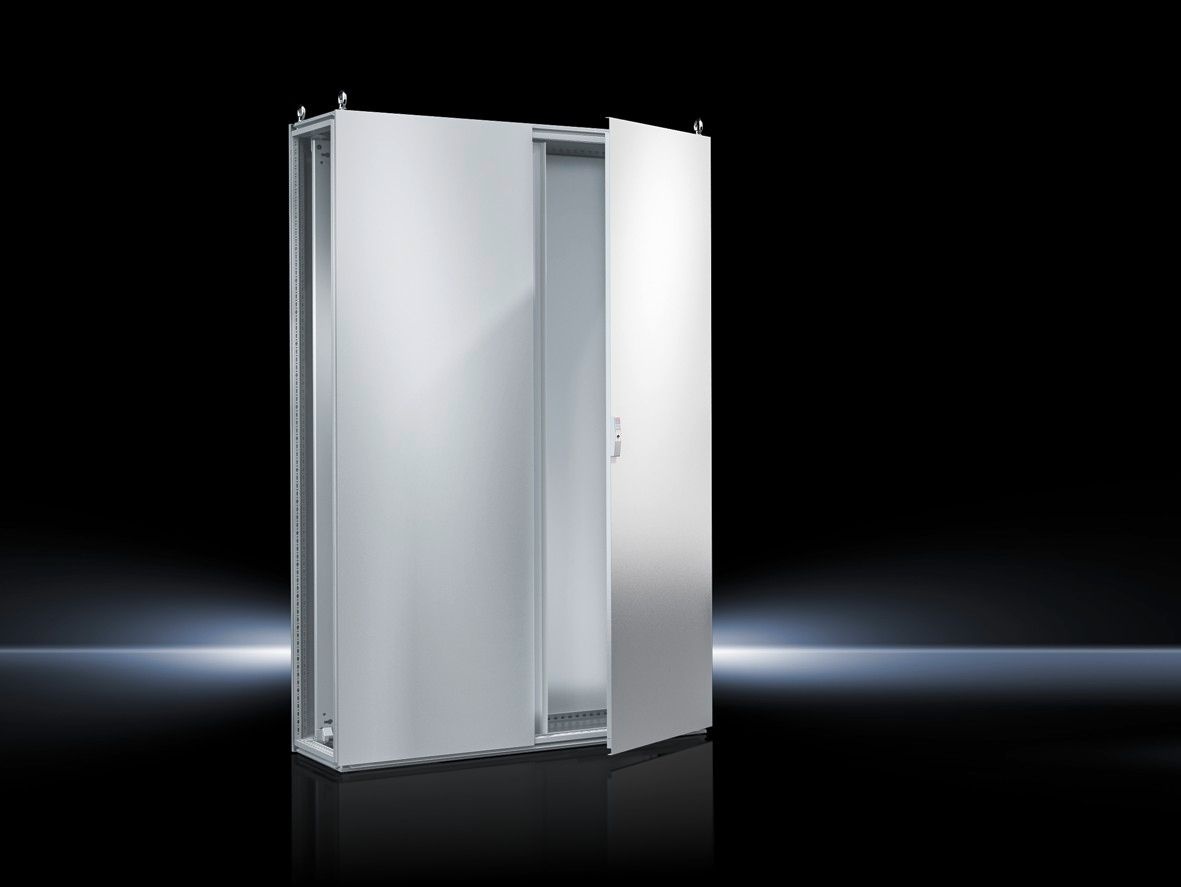

Rittal 8205500 Enclosure
Image Disclaimers Message
Rittal 8205500 Enclosure
Rittal 8205500 Enclosure
Part #:8205500
SKU #: 1375574
Key Features
Part #:8205500
SKU #: 1375574
Brand: Rittal
Finish: Dip Coated Primed/Powder Coated, Dipcoat Primed/Powder Coated
NEMA Rating: NEMA 12/IP55
Series: TS 8
Type: Compact Double Door
Color: Light gray
- 16-fold tubular frame system, flexible baying options and modular design
- Dip coated primed enclosure frame
- Dip coated primed, powder coated on the outside, textured paint door, roof and rear panel
- Right hand door catch on single door enclosures may be swapped to the left
Rittal 8205500 Enclosure
Rittal Enclosure, Compact Double Door, Series: TS 8, 47 in Width, 20 in Depth, 79 in Height, NEMA 12/IP55, Continuous Hinged Cover, Lock: 3 mm Double Bit, Freestanding Mount, Sheet Steel, Dipcoat Primed/Powder Coated, Light Gray
Additional Description: RTL -8205500 2000H1200W0500D TS DBL TXT D/D 8205500
Catalog Description: Baying systems TS 8, material: Enclosure frame: Sheet steel, 1.5 mm, Roof: Sheet steel, 1.5 mm, Door: Sheet steel, 2.0 mm, Rear panel: Sheet steel, 1.5 mm, surface: Enclosure frame: Dipcoat-primed, Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint, color: RAL 7035, supply includes: Enclosure frame, Door(s), Roof plate, Rear panel, detachable, 4 eyebolts, Lock: 3 mm double-bit, description: Baying systems TS 8 with mounting plate. Protection category IP 55.
