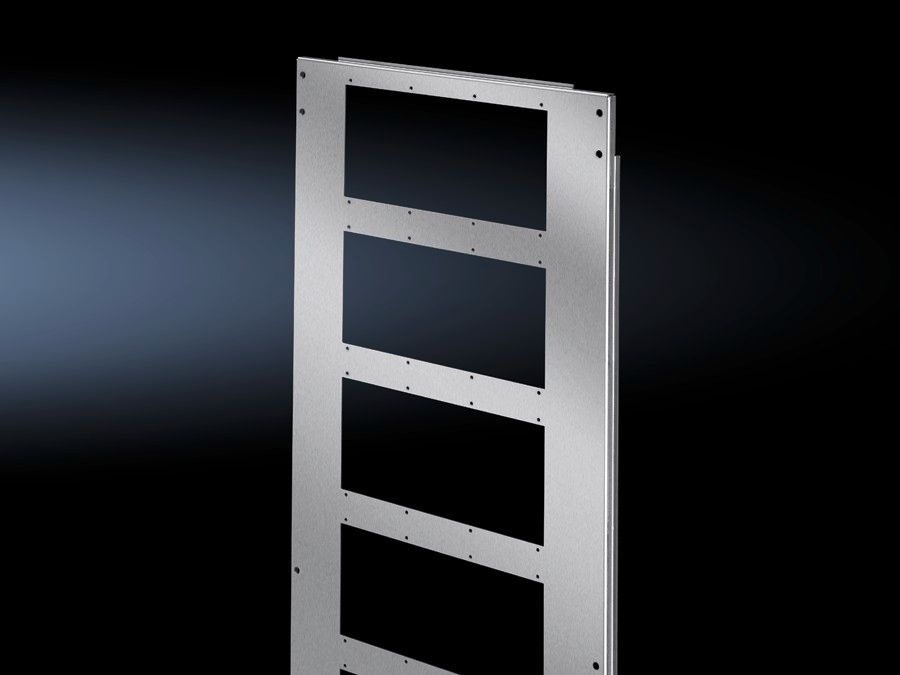

Rittal 8609100 Divider Panel
Part Number # 8609100
SKU # 2202572

8609100
Rittal 8609100 Divider Panel
Part Number # 8609100
SKU # 2202572
Rittal 8609100 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 8609100 |
| SKU #: | 2202572 |
| Suitable For Use With: | TS 8 Series Enclosure |
| UNSPSC: | 39121321 |
| UPC: | 00639889340879 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Rittal 8609100 Divider Panel
Brand: Rittal
Part Number: 8609100
Rittal Divider Panel, 500 mm Depth, 1800 mm Height, For Use With: TS 8 Series Enclosure, Sheet Steel, Zinc Plated Finish
Additional Description: RTL -8609100 (N) 1800H0500D TS PARTITION WALL F/MODULE PLATE WALL NON-CANCELABLE, NON-RETURNABLE
Catalog Description: TS Divider panel, for module plates, for WD: 1800x500 mm, Number of cut-outs: 9
8609100 Application
Used to notches in the corners and half-way up the sides permit the use of angular baying brackets and baying brackets, even with a divider panel fitted8609100 Includes
M5x12 Multi-Tooth Screws, Assembly Parts8609100 Item Features
- The cut-outs of a divider panel are individually equipped with module plates for 16 or 24-pole connectors, with module plates for cable entry and with solid module plates
- Usually only some of the total number of connector cut-outs are used
- Due to the new divider panel technique, the cut-outs do not need to be covered individually
- The solid module plate is used instead
- Less plates, less screws, less assembly work
8609100 Standards
RoHS Compliant|EAC ApprovedSKU #2202572Part Number #8609100UNSPSC39121321UPC00639889340879
Image provided may only be a representation of final product and may include optional equipment
