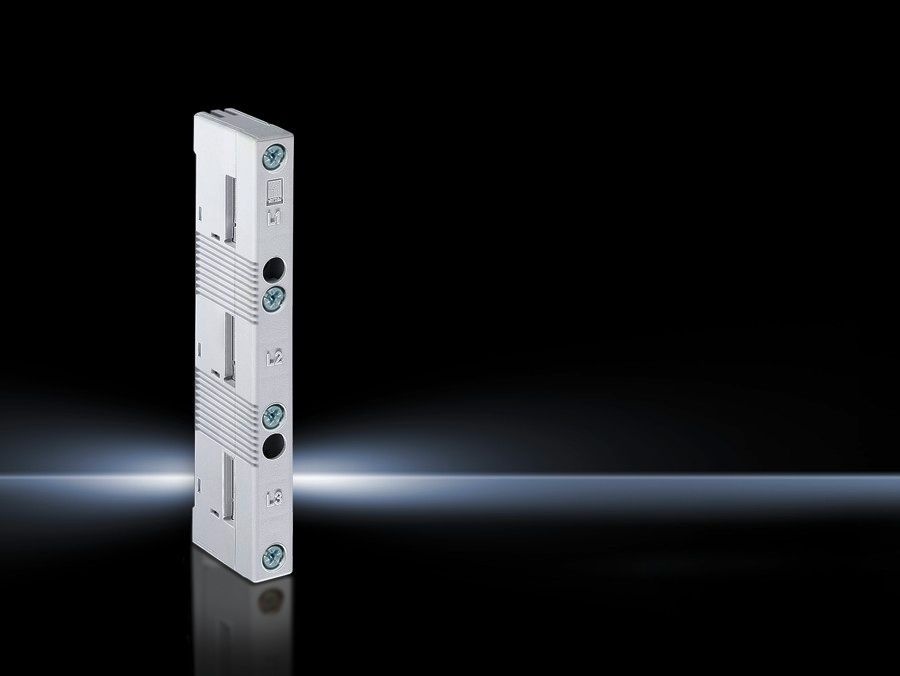

Rittal 9340050 Busbar Support
Part Number # 9340050
SKU # 2126046
$183.98 / Pack
Typical price:$229.98 / Pack
Rittal 9340050 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 9340050 |
| SKU #: | 2126046 |
| Specifications: | 1000 V AC, 1500 V DC, 3-Pole, 3-Phase, 60 mm Centre-to-Centre Spacing, 1000 VAC, 1500 VDC, 3-Pole, 3-Phase, 60 mm Centre-to-Centre Spacing |
| Suitable For Use With: | 15 x 5 to 30 x 10 mm Busbars |
| Color: | Pale Gray |
| Country of origin: | DE |
| Material: | Polyamide |
| Manufacturer Name: | Rittal |
| UNSPSC: | 39121701 |
| UPC: | 00639889829862 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$183.98 / Pack
Typical price:$229.98 / Pack
Quantity:
- Rittal Busbar Support, For Use With: 15 x 5 to 30 x 10 mm Busbars, 1000 V AC, 1500 V DC, 3-Pole, 3-Phase, 60 mm Centre-to-Centre Spacing, Polyamide, Pale Gray
9340050 Application
For AC and DC applications9340050 Item Features
- Fire protection corresponding to UL 94-V0
- Pale gray (RAL 7035) busbar support
9340050 Standards
UL Listed|UL94 V-0 Flammability RatingSKU #2126046Part Number #9340050UNSPSC39121701UPC00639889829862
