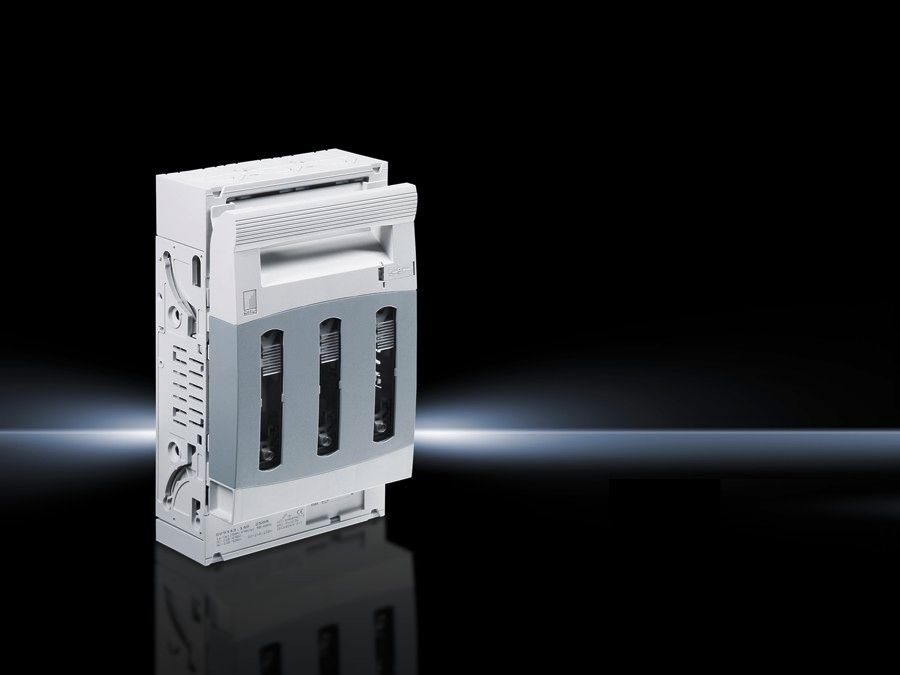

Rittal 9343110 Fuse Switch Disconnector
Part Number # 9343110
SKU # 2145225
$631.96 / Each
Typical price:$789.95 / Each
Rittal 9343110 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 9343110 |
| SKU #: | 2145225 |
| Amperage Rating: | 630, 630 A |
| Dimensions: | 298 mm H x 184 mm W |
| Finish: | Silver Plated |
| Number of Poles: | 3 |
| Series: | SV Series |
| Terminal Type: | M10 Screw, Screw |
| Type: | Type NH Isolator |
| Material: | Polyamide |
| Manufacturer Name: | Rittal |
| UNSPSC: | 39122233 |
| UPC: | 00639889840812 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$631.96 / Each
Typical price:$789.95 / Each
Quantity:
Rittal 9343110 Fuse Switch Disconnector
Brand: Rittal
Part Number: 9343110
Rittal Fuse Switch Disconnector, Type NH Isolator, Series: SV Series, 690 VAC, 630 A, 3 Pole, Screw Terminal, 298 mm H x 184 mm W Dimensions, Polyamide, Light Gray/Silver Gray, Silver Plated
Additional Description: RTL -9343110 (N) NH FUSED ISOLATOR - 250A 60 MM SCREW M10 SCREW TERMINAL - 1 9343110 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: SV NH fuse-switch disconnector, size 1, 250 A, 690 V , 3-pole, screw M10
9343110 Application
For busbar with 5 or 10 mm cross section and industrial applications9343110 Item Features
- Light gray Chassis, silver gray cover
- Top/bottom cable entry
9343110 Standards
cUL Listed|EC|EAC Certified|IEC/DIN EN 60947-3|DIN EN 60269-2|UL 94-V-0 Flammability RatingSKU #2145225Part Number #9343110UNSPSC39122233UPC00639889840812
Image provided may only be a representation of final product and may include optional equipment
