9975042
Rittal 9975042 Swing Panel Kit
Part Number # 9975042
SKU # 2365938
$133.67 / Each
Typical price:$167.08 / Each
Rittal 9975042 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 9975042 |
| SKU #: | 2365938 |
| Suitable For Use With: | WMSP Series WMSP3024C 2-Hinge 24 in W x 30 in H x 1.5 mm THK Carbon Steel/Stainless Steel Wall Mount Enclosure |
| UNSPSC: | 39121321 |
| UPC: | 00063988989703 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
$133.67 / Each
Typical price:$167.08 / Each
Quantity:
Rittal 9975042 Swing Panel Kit
Brand: Rittal
Part Number: 9975042
Rittal Swing Panel Kit, For Use With: WMSP Series WMSP3024C 2-Hinge 24 in W x 30 in H x 1.5 mm THK Carbon Steel/Stainless Steel Wall Mount Enclosure, Carbon Steel, Powder Coated
Additional Description: RTL -9975042 SWING PANEL WMSP3024C
Catalog Description: Suitable for WM carbon steel, WM stainless steel
9975042 Application
For providing a barrier against incidental contact with live components during routine maintenance9975042 Item Features
- WM swing panel does not jeopardize the UL type 4/4X rating of the enclosure
- Easy, no drilling installation
- Simplified design allows quick installation and provides substantial labor savings
- Maximum swing of 98 deg
- Electrophoresis dip-coat primer with powder coated surface finish for all carbon steel 1.5 mm THK swing panels
- Distance from swing panel face to enclosure door is 2-1/2 in to allow for extra deep push buttons
- The swing panel bracket kit is installed in minutes without the need to drill the enclosure body
- The swing panel comes with two pre-installed quarter turn locks and is internally attached to the brackets in the same way as the enclosure door
- Required 9975021 swing panel bracket kit
9975042 Standards
RoHS Compliant|UL ListedSKU #2365938Part Number #9975042UNSPSC39121321UPC00063988989703

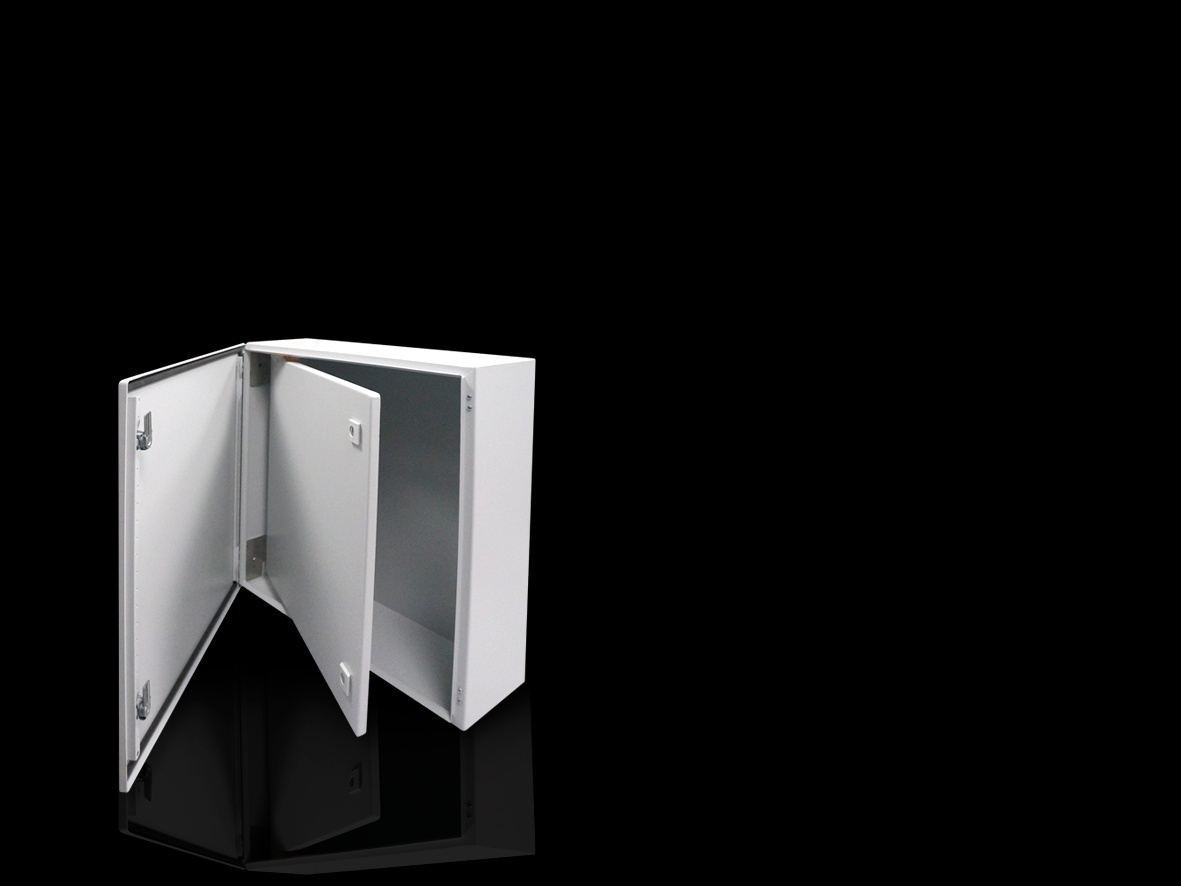

Image provided may only be a representation of final product and may include optional equipment
