Part Number # PRSTG2
SKU # 2437826
PRSTG2
Robroy PRSTG2 Redh2Ot Knockout Hub
Part Number # PRSTG2
SKU # 2437826
Robroy PRSTG2 Key Features
| Brand: | Robroy |
|---|---|
| Part Number # : | PRSTG2 |
| SKU #: | 2437826 |
| Dimensions: | 2.25 in OD x 2.22 in L |
| Finish: | PVC Coated |
| Size: | 3/4 in |
| Suitable For Use With: | Sheet Metal Electrical Enclosure |
| Type: | Type STG |
| Country of origin: | US |
| Material: | Steel |
| Mounting type: | Threaded |
| Manufacturer Name: | Robroy Industries |
| UNSPSC: | 39131706 |
| UPC: | 00784011207497 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Robroy PRSTG2 Redh2Ot Knockout Hub
Brand: Robroy
Part Number: PRSTG2
Robroy RedH2OT® Knockout Hub, Type STG, 3/4 in Size, For Use With: Sheet Metal Electrical Enclosure, Threaded Mounting, Steel, Gray/Red, PVC Coated, 2.25 in OD x 2.22 in L Dimensions
Additional Description: ROBR-PRSTG2 (N) 3/4 KNOCKOUT HUB W/GRND NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Plasti-Bond ST style knockout hubs are used to terminate conduit runs through the wall of a sheet metal electrical enclosure. They are available with or without grounding lug. STTB style hubs are "Through-Bulkhead" fittings used to pass conduit runs through firewalls or bulkheads up to 1/8" thick. STTTB style hubs perform the same function for unlimited wall thicknesses, (furnished without nipples).
PRSTG2 Application
Electrical and Data Wire Raceways in Harsh Environment ApplicationsPRSTG2 Item Features
- 40 mil gray PVC exterior, 2 mil red urethane interior coating
- Sealing sleeves on conduit side of hub
- Molded PVC gasket seals flush with enclosure wall
- O-ring gasket provides additional seal
- NEMA 2/3-gang/3-gang/4/4X/11/12 enclosure
- 1/8 in THK wall
- Insulated throat
PRSTG2 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 514B|UL File No. E200413|CSA Certified|NEC Certified|CEC Certified|Class I, Div 2|Class II, Div 1, 2|Class III, Div 1, 2SKU #2437826Part Number #PRSTG2UNSPSC39131706UPC00784011207497

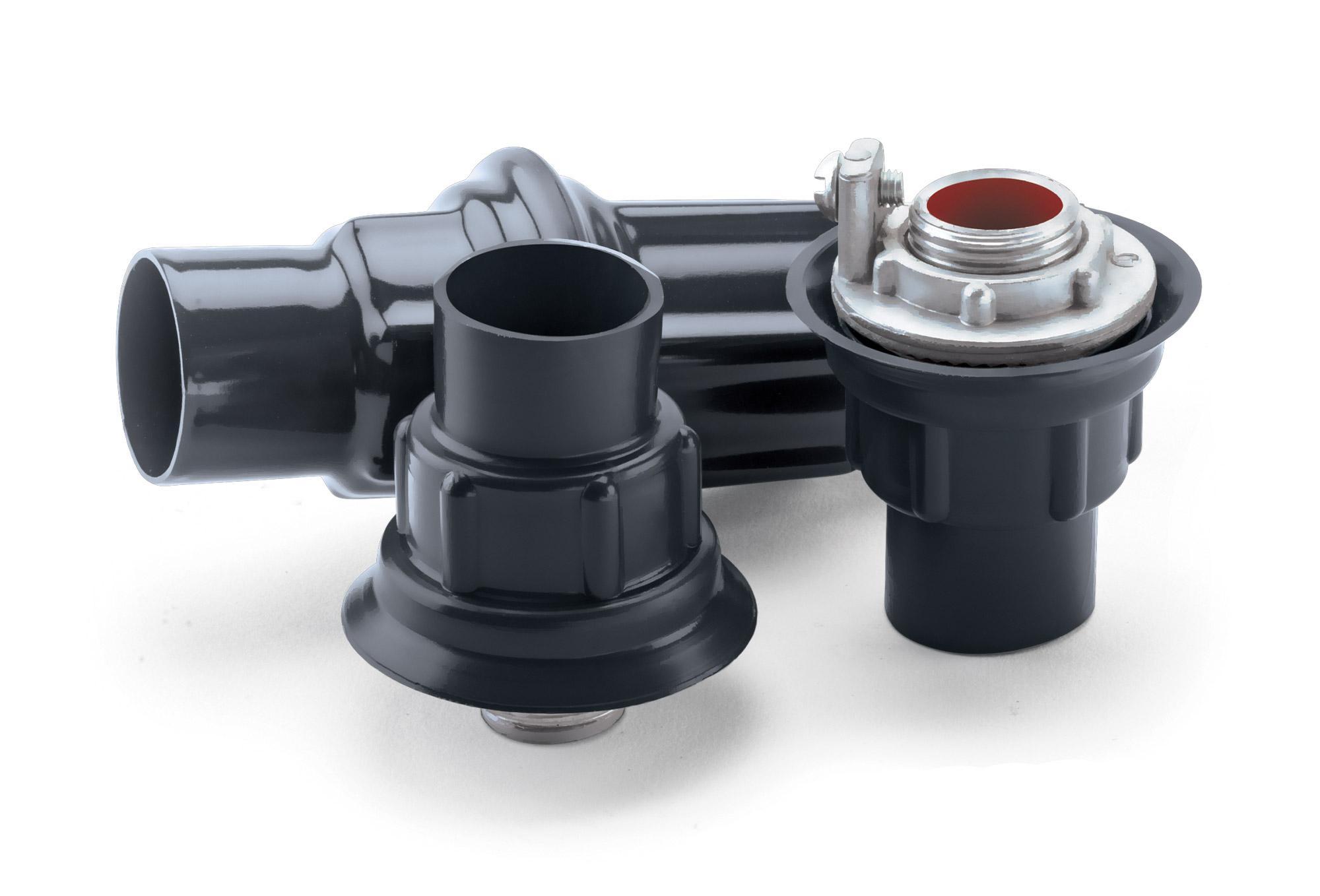

Image provided may only be a representation of final product and may include optional equipment
