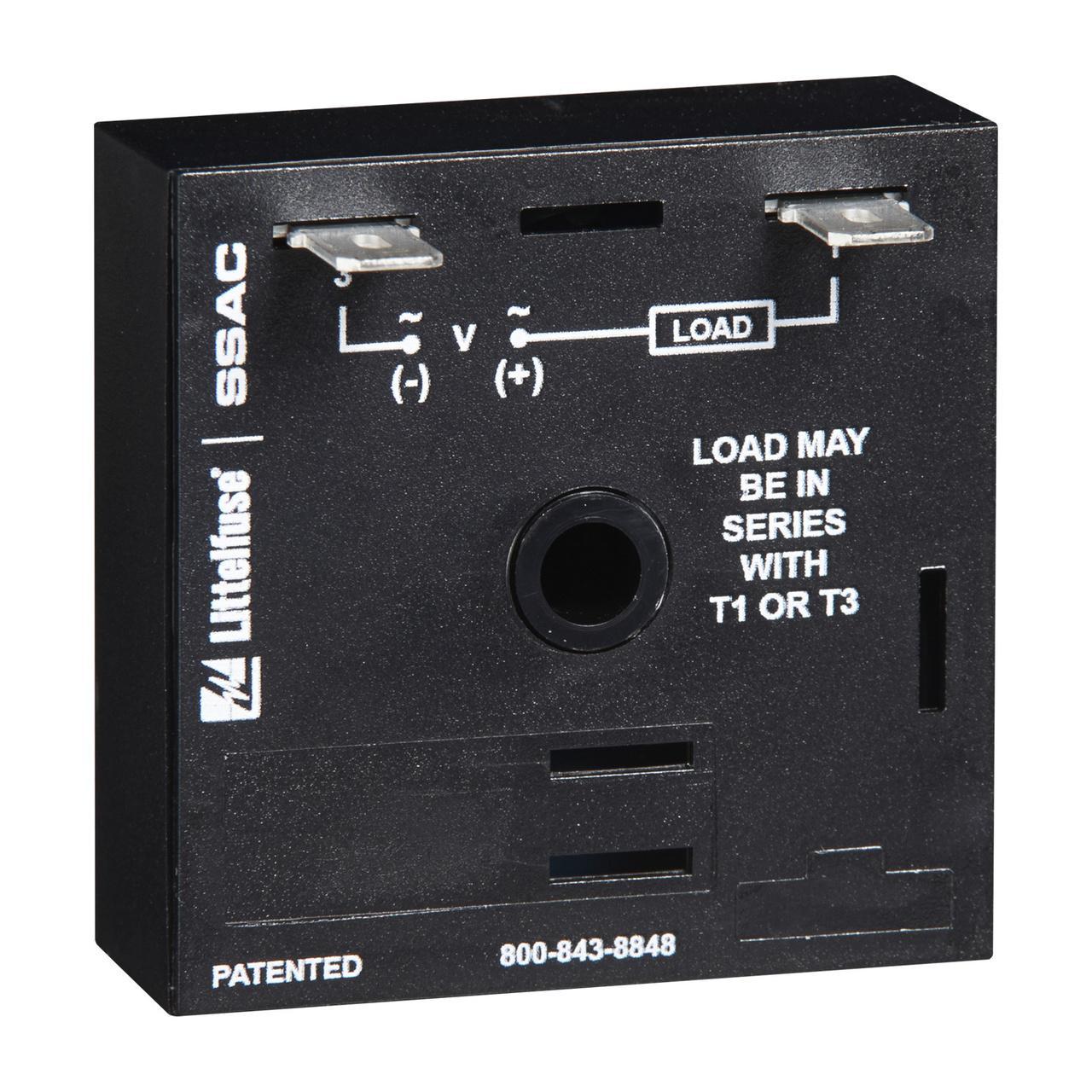

SSAC-SYMCOM KSD1123 Time Relay
SSAC-SYMCOM KSD1123 Time Relay
Part #:KSD1123
SKU #: 2405141
Key Features
Part #:KSD1123
SKU #: 2405141
Brand: Littelfuse
SSAC-SYMCOM KSD1123 Time Relay
Littelfuse® SSAC® Time Delay Relay, Adjustable External, Series: KSD1, Operation Mode: Delay On Make, 12 VDC, SPDT/NO-NC (1 Form C), 0.1 to 10 min, Male Quick-Connect Terminal, -40 to 60 deg F, Surface Mount, 2 in H x 2 in W x 1.21 in D
Additional Description: LTFS-KSD1123 DIGI-TIMER (D.O.M.)
Catalog Description: The KSD1 Series features two-terminal, series-connection with the load. The KSD1 Series is an ideal choice for delay-onmake timing applications. This series is designed for general purpose commercial and industrial applications where a small, cost effective, reliable solid-state timer is required. The factory calibration for fixed time delays is within 5% of the target time delay. The repeat accuracy, under stable conditions, is 0.5% of the selected time delay. This series is designed for popular AC and DC voltages. Time delays of 0.1 seconds to 1000 minutes are available in 6 ranges. The output is rated 1A steady and 10Ainrush. The modules are totally solid state and encapsulated to protect the electronic circuitry. Operation (Delay-on-Make): Upon application of input voltage, the time delay begins. The output is de-energized before and during the time delay. At the end of the time delay, the output energizes and remains energized until input voltage is removed. Reset: Removing input
