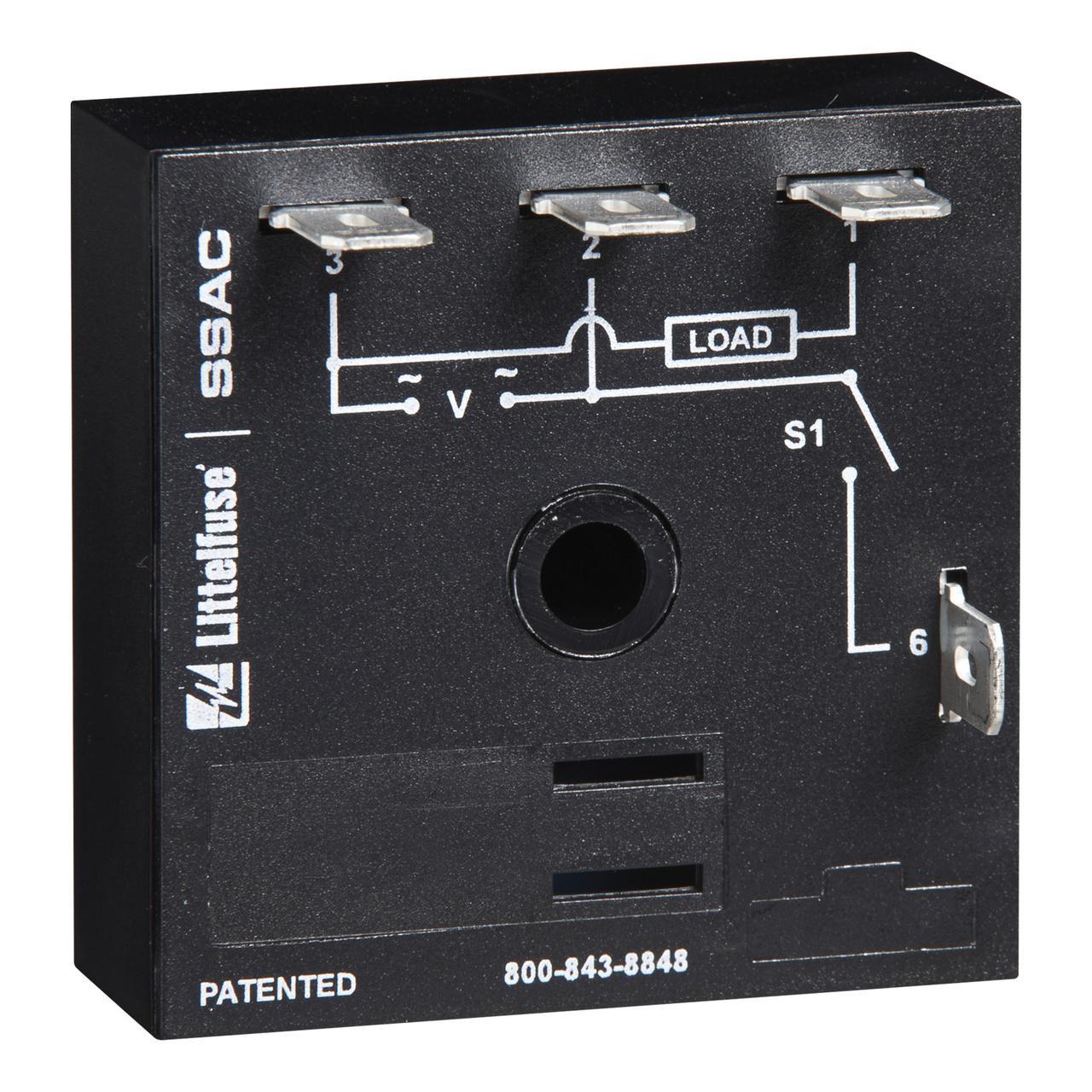

SSAC-SYMCOM TSB422 Timer Control
Part Number # TSB422
SKU # 2223360
$571.80 / 10Each
Typical price:$1070.00 / Each
Littelfuse TSB422 Key Features
| Brand: | Littelfuse |
|---|---|
| Part Number # : | TSB422 |
| SKU #: | 2223360 |
| Amperage Rating: | 1 A |
| Dimensions: | 2 in H x 2 in W x 1.21 in D |
| Operation Mode: | Delay On Break |
| Series: | TSB |
| Temperature Rating (Degrees F): | -40 to 167 deg F |
| Time Setting: | 0.5 to 60 s |
| Country of origin: | MX |
| Mounting type: | Surface |
| Manufacturer Name: | Littelfuse |
| UNSPSC: | 39122329 |
| UPC: | 00079458020434 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$571.80 / 10Each
Typical price:$1070.00 / Each
Quantity:
- Littelfuse Timing Relay, Series: TSB, Operation Mode: Delay On Break, 120 V AC, 1 A, 0.5 to 60 s, -40 to 167 deg F, Surface Mount, 2 in H x 2 in W x 1.21 in D
TSB422 Item Features
- +/-20% input tolerance
- 50/60 Hz input AC line frequency
- Solid-state output
- 1 A steady state 10 A inrush at 60 deg C output load rating
- 2.5 VAC at 1 A output voltage drop
- 5 mA at 230 VAC minimum output holding current
- +/-5% time delay tolerance
- +/-2% or 20 ms whichever is greater repeat accuracy
- +/-10% set point vs ambient temperature and operating voltage
- 100 MOhm insulation resistance
- 2000 Vrms terminals to mounting surface
- Encapsulated circuitry
- 1/4 in male quick connect terminals
- Surface mount with one #10 (M5 x 0.8) screw
- -40 to 185 deg F storage temperature
- 95% relative non-condensing humidity
- External adjustment
TSB422 Standards
CE Marked|CSA Certified|UR ListedSKU #2223360Part Number #TSB422UNSPSC39122329UPC00079458020434
