Part Number # 8501CDO21V60
SKU # 2459558
8501CDO21V60
Schneider Electric 8501CDO21V60
Part Number # 8501CDO21V60
SKU # 2459558
$101.10 / Each
Typical price:$104.22 / Each
Square D 8501CDO21V60 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8501CDO21V60 |
| SKU #: | 2459558 |
| Amperage Rating: | 30 A |
| Coil Voltage: | 110 V DC |
| Contact Form: | 1NO 1 Form A SPST |
| Series: | 8501C |
| Temperature Rating (Degrees F): | -67 to 131 deg F |
| Terminal Type: | Screw Clamp |
| Type: | 1-Phase |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122324 |
| UPC: | 00785901052227 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$101.10 / Each
Typical price:$104.22 / Each
Quantity:
Schneider Electric 8501CDO21V60
Brand: Square D
Part Number: 8501CDO21V60
Square D™ Power Relay, 1-Phase, Series: 8501C, 30 A, 110 VDC Coil, 1NO-SPST Contact Form, Panel Mounting, Screw Clamp Terminal, -67 to 131 deg F
Additional Description: SQD -8501CDO21V60 Power Relay, Type C, 20A resistive at 110 VDC, SPST, 1 normally open contact, 110 VDC coil
Catalog Description: Power Relay, Type C, 20A resistive at 110 VDC, SPST, 1 normally open contact, 110 VDC coil
8501CDO21V60 Application
For controlling small single phase motors and other light loads such as electric heaters, pilot lights or audible signals, pumps, conveyors and material handling equipment applications8501CDO21V60 Item Features
- Durable open frame construction
- 500 VAC maximum switching voltage
- 30 A line rated current
8501CDO21V60 Standards
RoHS Compliant|UL File No. E78351|CSA File No. 218139|IEC 60947-4-1|RoHS Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2459558Part Number #8501CDO21V60UNSPSC39122324UPC00785901052227

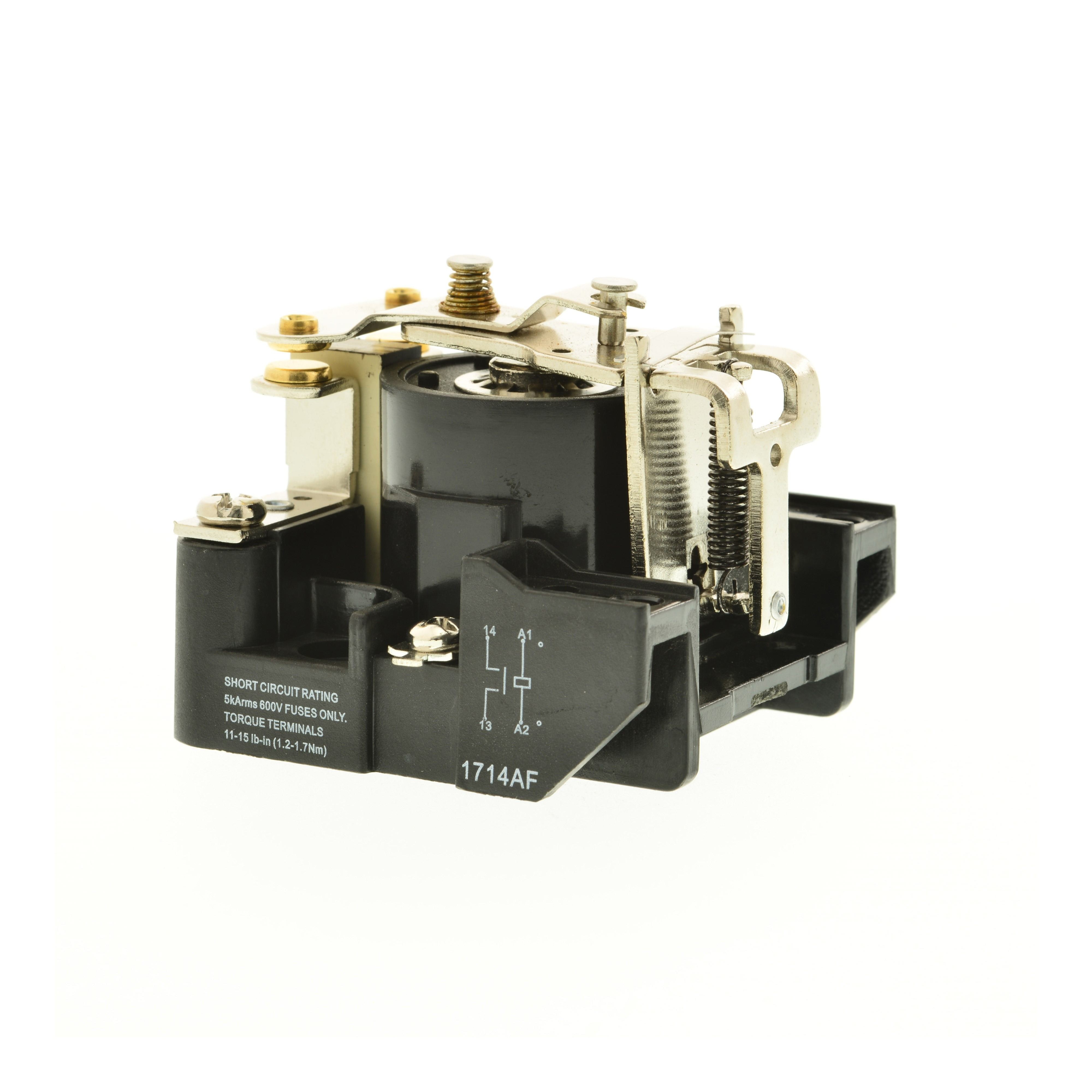

Image provided may only be a representation of final product and may include optional equipment
