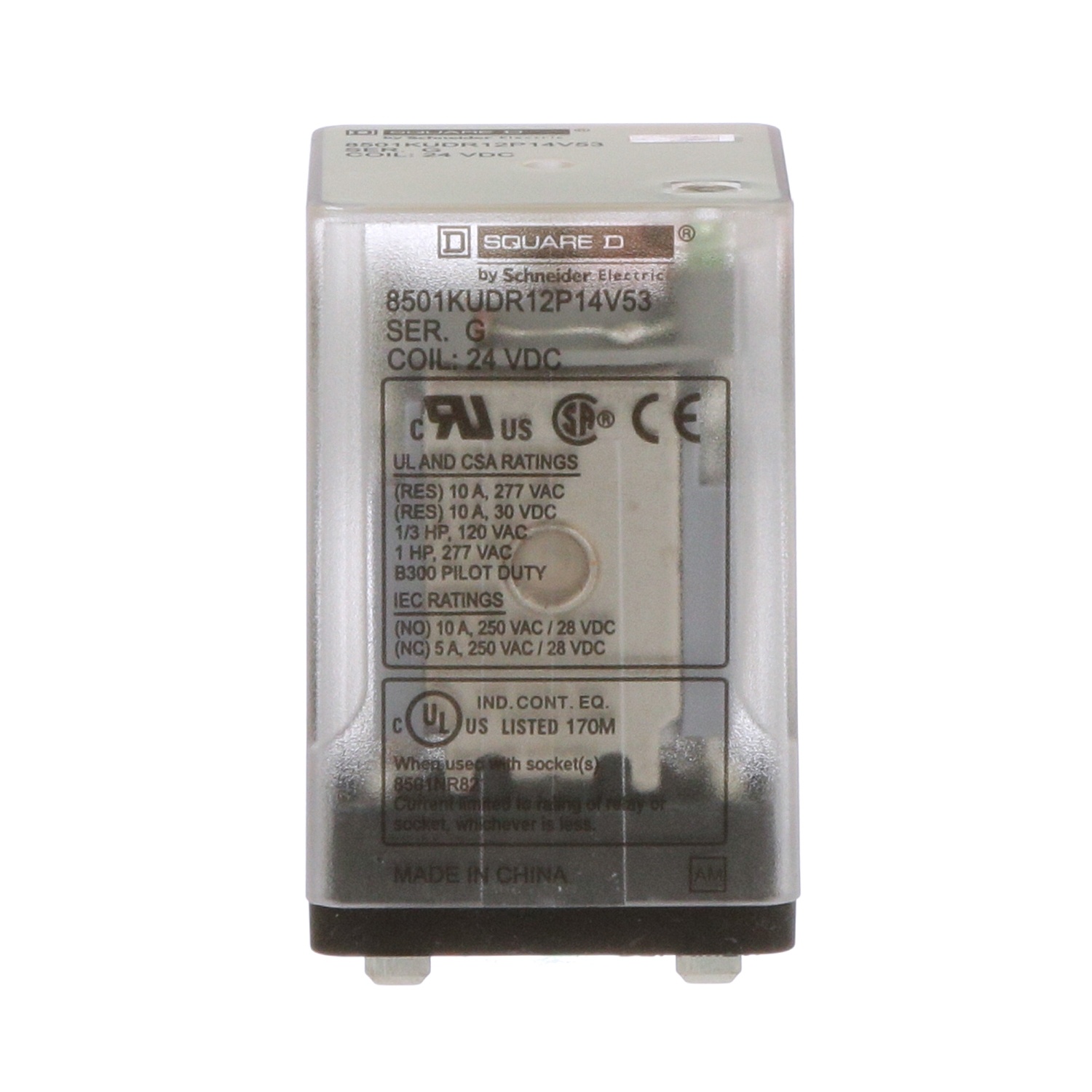

Schneider Electric 8501KUDR12P14V53
Schneider Electric 8501KUDR12P14V53
Part #:8501KUDR12P14V53
SKU #: 2435100
Key Features
Part #:8501KUDR12P14V53
SKU #: 2435100
Brand: Square D
Amperage Rating: 10 A
Coil Voltage: 300 VAC/30 VDC
Contact Form: 2CO-DPDT
Contact Rating: 3 A 120 VAC/1.5 A 240 VAC/10 A 277 VAC/10 A 30 VDC
Dimensions: 1.37 in W x 1.4 in D x 2.25 in H
- Without test button
- https://www.youtube.com/embed/zaDOKFz6F6U
Schneider Electric 8501KUDR12P14V53
Square D™ Universal Plug-In Relay, Type K, Series: 8501K, 10 A, 300 VAC/30 VDC Coil, 2CO-DPDT Contact Form, 3 A 120 VAC/1.5 A 240 VAC/10 A 277 VAC/10 A 30 VDC Contact, 8 Pins, 2 Pole, Spade Pin Terminal, Green LED Display, -40 to 131 deg F, 1.37 in W x 1.4 in D x 2.25 in H Dimensions
Additional Description: SQD -8501KUDR12P14V53 RELAY 2CO QC PIN 10A@240V 24VDC COIL LED
Catalog Description: Plug in relay, Type KU, blade, 0.5 HP at 240 VAC, 10A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 24 VDC coil
