Part Number # 8903LXG80V02CR6
SKU # 2428898

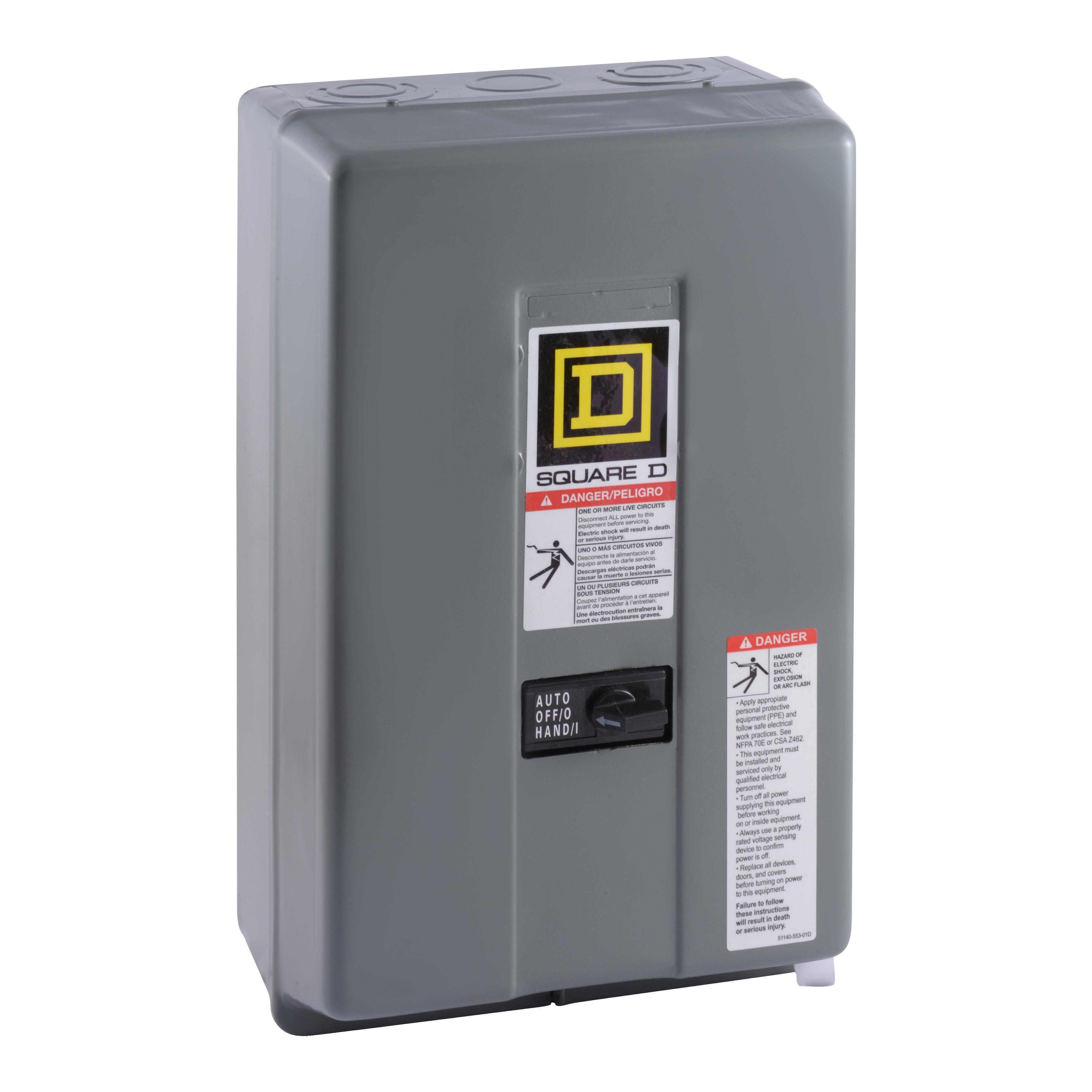

Image provided may only be a representation of
final product and may include optional equipment
8903LXG80V02CR6
Schneider Electric 8903LXG80V02CR6 Lighting Contactor
Part Number # 8903LXG80V02CR6
SKU # 2428898
Schneider Electric 8903LXG80V02CR6 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 8903LXG80V02CR6 |
| SKU #: | 2428898 |
| Coil Voltage: | 110 V AC at 50 Hz to 120 V AC at 60 Hz, 110 VAC at 50 Hz to 120 VAC at 60 Hz |
| Contact Configuration: | 8NO |
| Contact Rating: | 30 A |
| Dimensions: | 7.8 in W x 6.02 in D x 12.68 in H |
| Enclosure Type: | NEMA 1 |
| Finish: | Painted |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 8 |
| Operating Cycles: | 1000 cpm |
| Operating Temperature: | 0 to 40 deg C |
| Series: | 8903 |
| Terminal Type: | Screw Clamp |
| Type: | Mechanically Held Type LX |
| Wattage: | 6.9 kW at 200 V/7.9 kW at 230 V/13.1 kW at 380 V/15.9 kW at 460 V/19.9 kW at 575 V |
| Connection type: | Screw Clamp |
| Country of origin: | MX |
| Material: | Sheet Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901023364 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric 8903LXG80V02CR6 Lighting Contactor
Brand: Schneider Electric
Part Number: 8903LXG80V02CR6
Square D™ Lighting Contactor, Mechanically Held Type LX, Series: 8903, 110 VAC at 50 Hz to 120 VAC at 60 Hz Coil, 8 Pole, 50/60 Hz Frequency, 6.9 kW at 200 V/7.9 kW at 230 V/13.1 kW at 380 V/15.9 kW at 460 V/19.9 kW at 575 V Wattage, 8NO Contact Configuration, 30 A Contact, Screw Clamp Connection, Screw Clamp Terminal, NEMA 1 Enclosure, 1000 cpm Operating Cycles, 0 to 40 deg C Operating, Surface Mounting, Sheet Steel, Painted, 7.8 in W x 6.02 in D x 12.68 in H Dimensions
Additional Description: SQD -8903LXG80V02CR6 (N) LIGHTING CONTACTOR 600VAC 30A LX NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Contactor, Type LX multipole lightling, mechanically held, 30A, 8 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1 [TAA]
8903LXG80V02CR6 Application
Lighting Management, Electrical Heating Control8903LXG80V02CR6 Item Features
- Multi-pole lighting contactors are available in wide variety of enclosures suitable for lighting control
- Field-convertible contacts with N.O. and N.C. indicators
- Thousands of possible contact configurations
- https://www.youtube.com/embed/cPMJNL-eQdk
8903LXG80V02CR6 Standards
CSA File LR60905 Class 3211-07|ECCN: EAR99|RoHS Compliant|UL File E78427 CCN NRNT|PROP65:This product can expose you to chemicals including: Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2428898Part Number #8903LXG80V02CR6UNSPSC39121529UPC00785901023364
