Part Number # 9001BW91YU
SKU # 2247432
Image Disclaimers Message
Brand: Schneider Electric
9001BW91YU

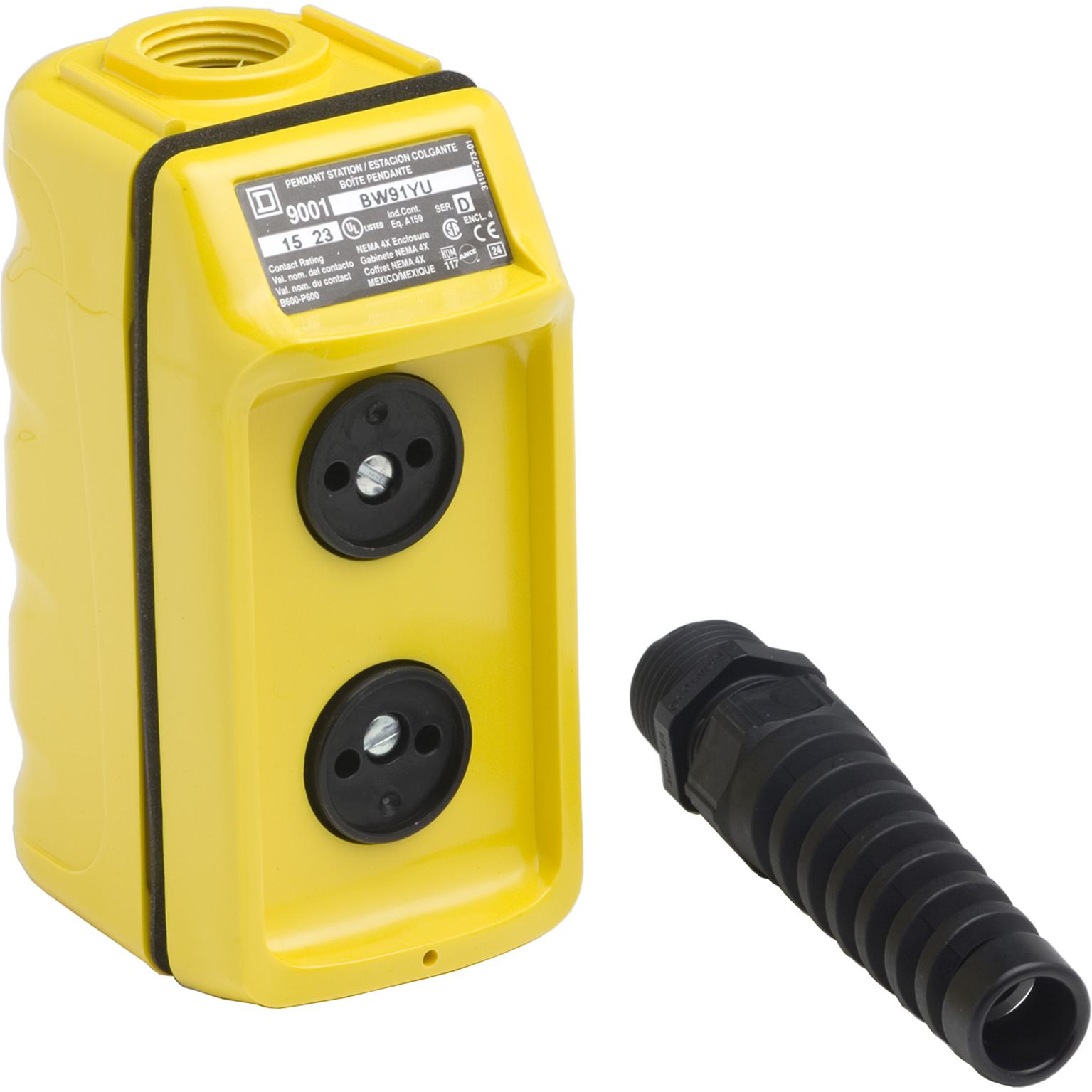

Schneider Electric 9001BW91YU Harmony Pendant Control Station
Part Number # 9001BW91YU
SKU # 2247432
$135.97 / Each
Schneider Electric 9001BW91YU Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 9001BW91YU |
| SKU #: | 2247432 |
| Amperage Rating: | 5, 5 A |
| Contact Configuration: | 1NC-1NO, 1NO-1NC, 2NO-2NC |
| Contact Form: | Momentary |
| Contact Rating: | 5 A at 600 VAC |
| Dimensions: | 4.25 in H x 2.76 in W x 3.6 in D |
| Legend: | User Configurable |
| NEMA Rating: | NEMA 1/3/3R/4/4X, NEMA 4 |
| Number of Operators: | 2 |
| Operating Temperature: | -13 to 140, -13 to 140 deg F |
| Operator Type: | Momentary |
| Series: | 9001B |
| Type: | Type BW |
| Color: | Yellow |
| Country of origin: | MX |
| Material: | Die Cast Zinc, Polycarbonate |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121561 |
| UPC: | 00785901578079 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$135.97 / Each
Quantity:
- Schneider Electric Harmony Pendant Control Station, Type BW, Series: 9001B, 600 VAC, 5 A, 2 Operators, 1NO-1NC Contact Configuration, Momentary Operator, Legend: User Configurable, NEMA 1/3/3R/4/4X NEMA Rating, Panel Mounting, -13 to 140 deg F Operating, Polycarbonate, Yellow, 4.25 in H x 2.76 in W x 3.6 in D Dimensions
9001BW91YU Specifications
- 1/2 to 14 NPT cable entry
9001BW91YU Application
Hoist Applications9001BW91YU Item Features
- 1/2 to 14 NPT cable entry
9001BW91YU Standards
RoHS Compliant|UL Listed|CE Certified|CSA Certified|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2247432Part Number #9001BW91YUUNSPSC39121561UPC00785901578079
