Part Number # 9001K1L35LGGH5
SKU # 2450360
Image Disclaimers Message
9001K1L35LGGH5

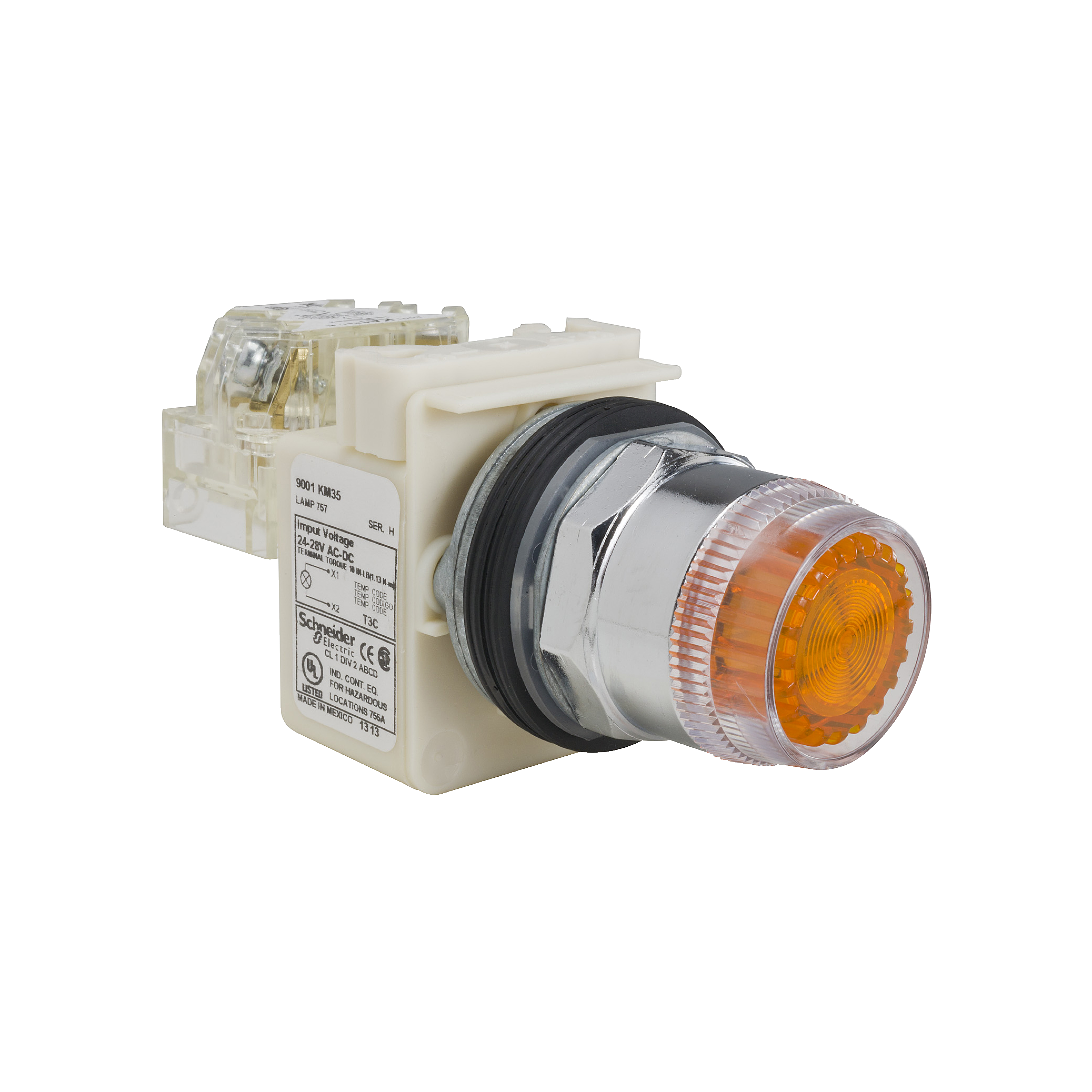

Schneider Electric 9001K1L35LGGH5
Part Number # 9001K1L35LGGH5
SKU # 2450360
$217.54 / Each
Square D (Schneider Electric) 9001K1L35LGGH5 Key Features
| Brand: | Square D (Schneider Electric) |
|---|---|
| Part Number # : | 9001K1L35LGGH5 |
| SKU #: | 2450360 |
| Actuator: | Flush |
| Bezel/Housing: | Polished Chrome Metal |
| Contact Configuration: | 1NO |
| Contact Rating: | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Enclosure Type: | NEMA 1/2/3/3R/4/6/12/13/IP65 |
| Environmental Conditions: | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| Lamp Type: | BA9S LED |
| Operator Type: | Flush, Full Guard Button/Spring Return |
| Series: | 9001K |
| Size: | 30 mm |
| Terminal Type: | Screw Clamp |
| Type: | Type K Direct Heavy Duty Unmarked |
| Color: | Green |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 00785901702764 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$217.54 / Each
Quantity:
- Square D Harmony Illuminated Pushbutton, Type K Direct Heavy Duty Unmarked, Series: 9001K, 30 mm Size, 1NO Contact Configuration, Slow Break Contact, Momentary Contact Mode, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, Flush Operator, BA9S LED Lamp, Bezel/Housing: Polished Chrome Metal, Flush Actuator, Screw Clamp Terminal, NEMA 1/2/3/3R/4/6/12/13/IP65 Enclosure, Panel Mounting, Green, Environmental Conditions: -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature
9001K1L35LGGH5 Application
Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Wastewater, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation, Textile, Heavy Industry and Robust Applications9001K1L35LGGH5 Item Features
- It has a metal bezel and is supplied with a 24Vac/dc integral LED
- It fits in a 30mm hole
- Full Guard Button
- https://www.youtube.com/embed/z4UUZQz35-w
9001K1L35LGGH5 Standards
RoHS Compliant|UL File No. E78403 CCN NKCR|CSA File No. LR25490 Class 3211 03|CE Certified|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60529|JIS C 4520/852|UL 508|CSA File No. 14|Green Premium|REACH Compliant|WEEE Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2450360Part Number #9001K1L35LGGH5UNSPSC39122216UPC00785901702764
