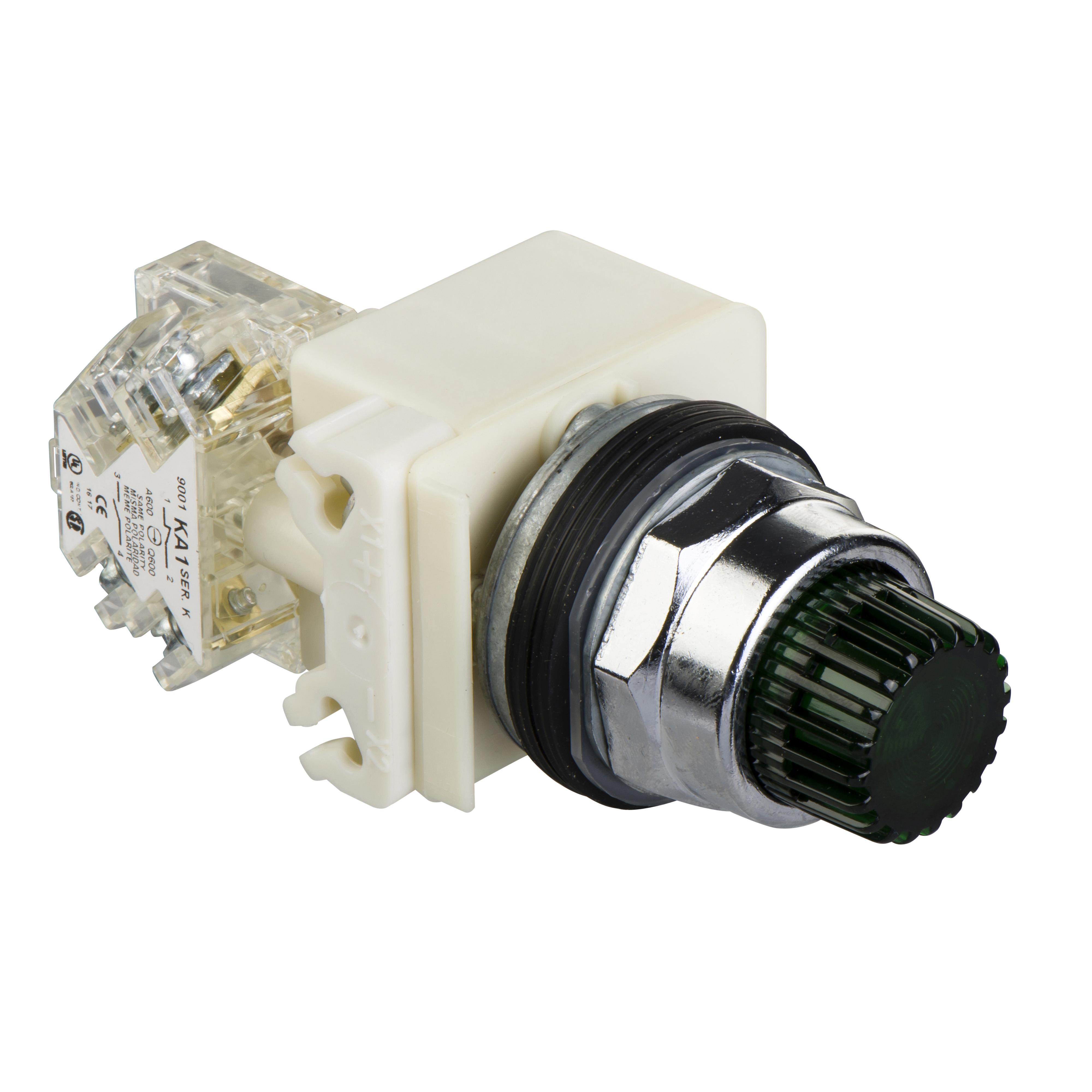

Schneider Electric 9001K2L38LGGH13 Harmony Illuminated Pushbutton
Part Number # 9001K2L38LGGH13
SKU # 2227834
$235.31 / Each
Typical price:$239.24 / Each
Schneider Electric 9001K2L38LGGH13 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 9001K2L38LGGH13 |
| SKU #: | 2227834 |
| Contact Configuration: | 1CO |
| Contact Rating: | 6 A at 120 V AC, 3 A at 240 V AC, 1.5 A at 480 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC |
| Enclosure Type: | NEMA 1/2/3/3R/4/6/12/13/IP65 |
| Environmental Conditions: | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| Lamp Type: | BA9S LED |
| Series: | 9001K |
| Size: | 30 mm |
| Type: | Type K Heavy Duty Dust/Oil/Watertight |
| Mounting type: | Panel |
| UNSPSC: | 39122216 |
| UPC: | 00785901028116 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$235.31 / Each
Typical price:$239.24 / Each
Quantity:
- Schneider Electric Harmony Illuminated Pushbutton, Type K Heavy Duty Dust/Oil/Watertight, Series: 9001K, 30 mm Size, 1CO Contact Configuration, Slow Break Contact, Momentary Contact Mode, 6 A at 120 V AC, 3 A at 240 V AC, 1.5 A at 480 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC Contact, BA9S LED Lamp, Bezel/Housing: Polished Chrome Bezel, Spring Return Actuator, Screw Clamp Terminal, NEMA 1/2/3/3R/4/6/12/13/IP65 Enclosure, Panel Mounting, Green, Environmental Conditions: -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature
9001K2L38LGGH13 Application
Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Wastewater, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation, Textile, Heavy Industry, Robust and Indoor/Outdoor Applications9001K2L38LGGH13 Item Features
- Improved security thanks to finger-safe contact blocks and light modules
- Robustness to withstand the harshest environments
- Easy, secure mounting system
- Automatic self-grounding operators without additional wiring
- A large metal set of accessories to customize your product
- Single screw Contact Block Fastening
- https://www.youtube.com/watch?v=z4UUZQz35-w&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn
9001K2L38LGGH13 Standards
CE Marking|CSA Certified File No. LR25490 Class 3211-03|CSA Certified No. 14|ECCN: EAR99|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60529|JIS C-4520/852|UL 508|Green Premium Compliant|REACH Compliant|UL Listed File No. E78403 CCN NKCR|WEEE Listed|PROP65: This product can expose you to chemicals including - lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2227834Part Number #9001K2L38LGGH13UNSPSC39122216UPC00785901028116
Image provided may only be a representation of final product and may include optional equipment
