Brand: Schneider Electric
9001KR3R

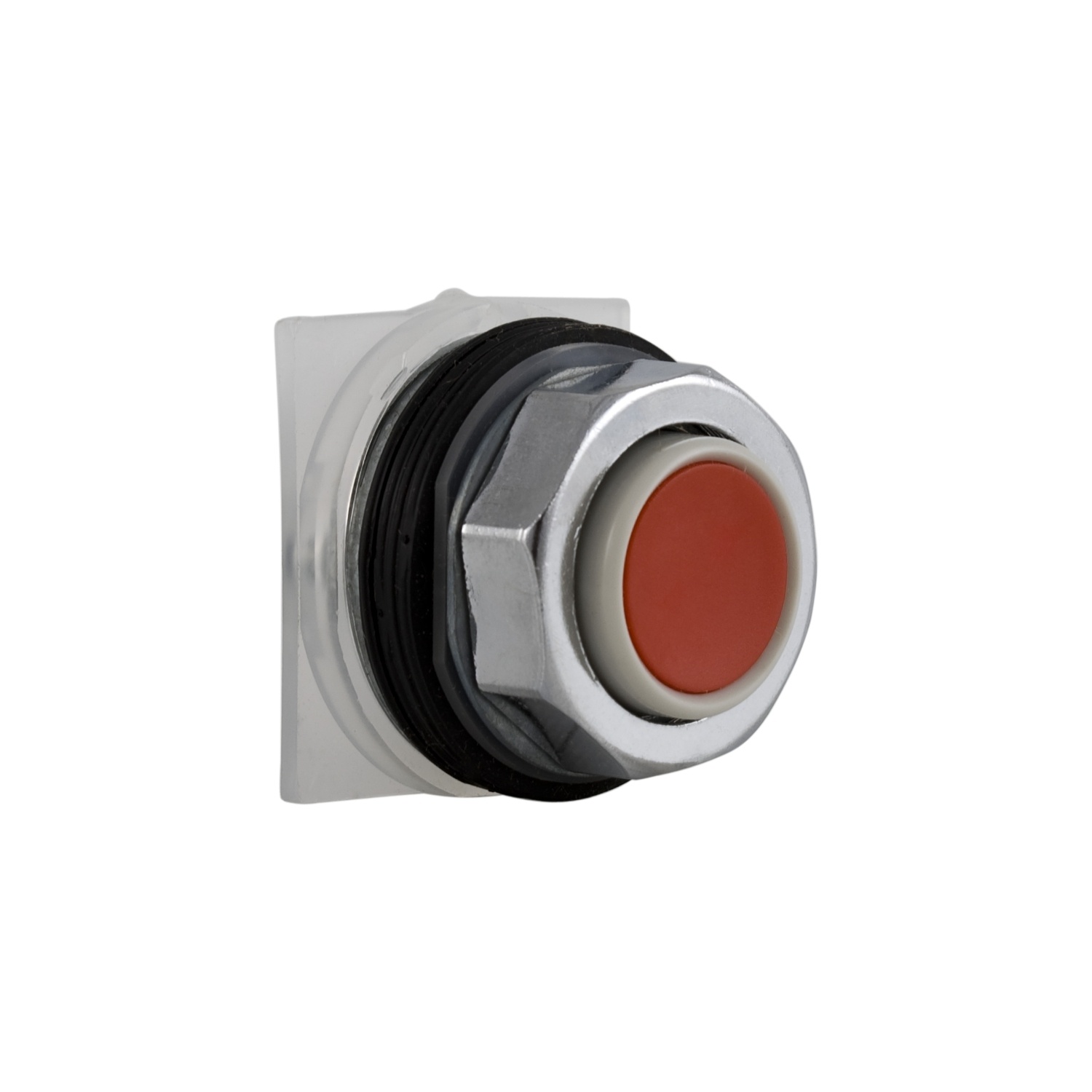

Schneider Electric 9001KR3R Harmony Pushbutton Operator
Part Number # 9001KR3R
SKU # 35565
$40.38 / Each
Schneider Electric 9001KR3R Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 9001KR3R |
| SKU #: | 35565 |
| Bezel/Housing: | Polished Chrome Metal |
| Contact Rating: | 6 A at 120 V AC, 3 A at 240 V AC, 1.5 A at 480 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Contacts: | Slow Break |
| Enclosure Type: | NEMA 1/2/3/3R/4/6/12/13/IP66 |
| Number of Positions: | 2 |
| Operator Type: | Flush/Spring Return, Spring Return |
| Series: | 9001KR |
| Size: | 1.18 in, 30 |
| Temperature Rating (Degrees F): | -13 to 158, -13 to 158 deg F |
| Terminal Type: | Screw, Screw/Clamp |
| Type: | Heavy Duty Non-Illuminated Round Type K Unmarked, Type K Dusttight/Oiltight/Watertight Heavy Duty Round Unmarked |
| Color: | Red |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 00785901874904 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$40.38 / Each
Quantity:
- Schneider Electric Square D Harmony Pushbutton Operator, Heavy Duty Non-Illuminated Round Type K Unmarked, Series: 9001KR, 1.18 in, Momentary Contact Mode, 6 A at 120 V AC, 3 A at 240 V AC, 1.5 A at 480 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC Contact, 2 Positions, Flush/Spring Return Operator, 600 VAC, NEMA 1/2/3/3R/4/6/12/13/IP66, Screw Terminal, Panel Mount, Bezel/Housing: Polished Chrome Metal, -13 to 158 deg F, Red
9001KR3R Application
Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Wastewater, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation, Textile, Heavy Industry, Robust and Indoor/Outdoor Applications9001KR3R Item Features
- It fits in a 30mm hole
- It has a chromium-plated metal bezel
9001KR3R Standards
RoHS Compliant|UL File No. E78403 CCN NKCR|CSA File No. LR25490 Class 3211 03|CE Certified|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60529|JIS C 4520/852|UL 508|CSA File No. 14|Green Premium|REACH Compliant|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #35565Part Number #9001KR3RUNSPSC39122216UPC00785901874904
