Part Number # 9001KR8G
SKU # 2451832
Image provided may only be a representation of
final product and may include optional equipment
9001KR8G
Schneider Electric 9001KR8G
Part Number # 9001KR8G
SKU # 2451832
Schneider Electric 9001KR8G Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 9001KR8G |
| SKU #: | 2451832 |
| Bezel/Housing: | Polished Chrome Metal |
| Contact Configuration: | 3PST |
| Contact Rating: | 6 A at 120 V AC, 3 A at 240 V AC, 1.5 A at 480 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Enclosure Type: | NEMA 1/2/3/3R/4/6/12/13/IP66 |
| Number of Positions: | 3 |
| Operator Type: | Flush/Full Guard Button/Mushroom Head/Spring Return |
| Series: | 9001KR |
| Size: | 1.18 in |
| Temperature Rating (Degrees F): | -13 to 158 deg F |
| Terminal Type: | Screw |
| Type: | Heavy Duty Non-Illuminated Round Type K Unmarked |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 00785901820611 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric 9001KR8G
Brand: Schneider Electric
Part Number: 9001KR8G

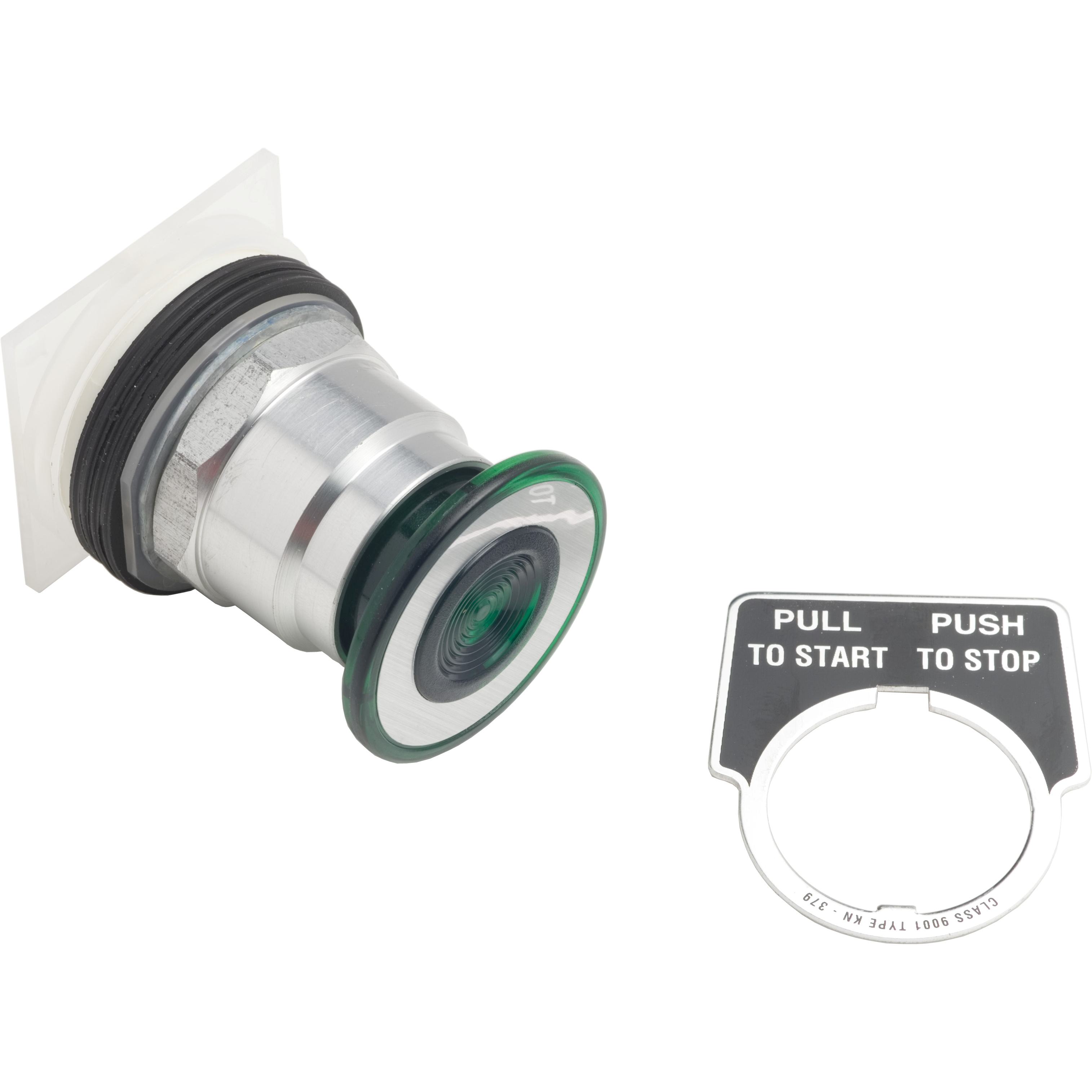

Schneider Electric Harmony™ Non-Illuminated Pushbutton Operator, Type K Dusttight/Oiltight/Watertight Heavy Duty Round Unmarked, Series: 9001KR, 30 mm Size, 3PST Contact Configuration, Maintained/Momentary Contact Mode, Slow-Break Contacts, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, 3 Positions, Flush/Full Guard Button/Mushroom Head/Spring Return Operator, 600 VAC, NEMA 1/2/3/3R/4/6/12/13/IP66 Enclosur
Additional Description: SQD -9001KR8G HEAD PB METAL SNAP GREEN MUSHR 41MM
Catalog Description: Head for spring return push button, Harmony 9001K, metal, green, mushroom 41mm, 30mm, 3 positions
9001KR8G Application
Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Wastewater, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation, Textile, Heavy Industries, Robust, Indoor and Outdoor Applications9001KR8G Item Features
- Without contact block
- Full guard in metal
9001KR8G Standards
RoHS Compliant|UL File No. E78403 CCN NKCR|CSA File No. LR25490 Class 3211 03|CE Certified|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60529|JIS C 4520/852|UL 508|CSA File No. 14|Green Premium|REACH Compliant|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2451832Part Number #9001KR8GUNSPSC39122216UPC00785901820611
