Part Number # 9001KR9R21H6
SKU # 2466884
9001KR9R21H6
Schneider Electric 9001KR9R21H6
Part Number # 9001KR9R21H6
SKU # 2466884
Square D (Schneider Electric) 9001KR9R21H6 Key Features
| Brand: | Square D (Schneider Electric) |
|---|---|
| Part Number # : | 9001KR9R21H6 |
| SKU #: | 2466884 |
| Actuator: | Mushroom Head |
| Bezel/Housing: | Polished Chrome Metal |
| Contact Configuration: | 1NC |
| Contact Rating: | 6 A at 120 V AC, 3 A at 240 V AC, 1.5 A at 480 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC |
| Enclosure Type: | NEMA 1/2/3/3R/4/6/12/13/IP66 |
| Environmental Conditions: | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| Series: | 9001KR |
| Size: | 30 mm |
| Terminal Type: | Screw Clamp |
| Type: | Type K Heavy Duty Dusttight/Oiltight/Watertight Unmarked |
| UNSPSC: | 39122216 |
| UPC: | 00785901159780 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric 9001KR9R21H6
Brand: Square D (Schneider Electric)
Part Number: 9001KR9R21H6
Schneider Electric Harmony™ Square D™ Non-Illuminated Pushbutton, Type K Heavy Duty Dusttight/Oiltight/Watertight Unmarked, Series: 9001KR, 30 mm Size, 1NC Contact Configuration, Slow Break Contact, Maintained/Push-Pull Contact Mode, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, 2 Positions, Bezel/Housing: Polished Chrome Metal, Mushroom Head Actuator, Screw Clamp Terminal, NEMA 1/2/3/3R/4/6/12/13/I
Additional Description: SQD -9001KR9R21H6 (N) PUSH BUTTON 600VAC 10A 30MM T-K NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Push-button, Harmony 9001K, metal, mushroom 57mm, red, 30mm, 2 positions, push-pull, 1 NC
9001KR9R21H6 Application
Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Wastewater, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation, Textile, Heavy Industry, Robust and Indoor/Outdoor Applications9001KR9R21H6 Item Features
- This Schneider Electric Harmony 9001K modular red push-button has 2 positions and operates with a stay-put mechanism
- It has a round shape and is supplied with contact block, 40mm mushroom head and 1 x NC contact
- It fits in a 30mm hole
- https://www.youtube.com/embed/z4UUZQz35-w
9001KR9R21H6 Standards
RoHS Compliant|UL File No. E78403 CCN NKCR|CSA File No. LR25490 Class 3211 03|CE Certified|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60529|JIS C 4520/852|UL 508|CSA File No. 14|Green Premium|REACH Compliant|WEEE Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2466884Part Number #9001KR9R21H6UNSPSC39122216UPC00785901159780

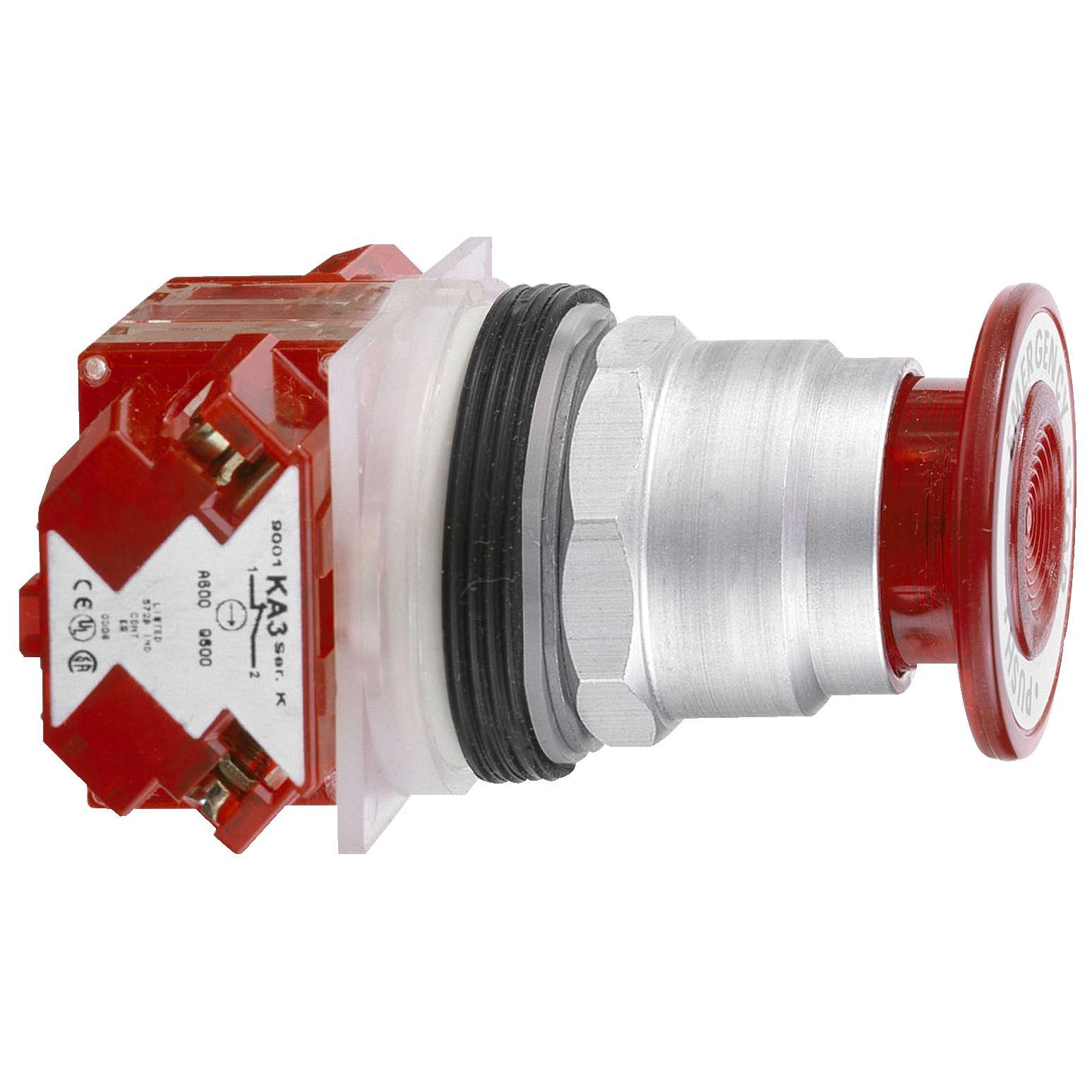

Image provided may only be a representation of final product and may include optional equipment
