Part Number # 9001KR9RH8
SKU # 2247214

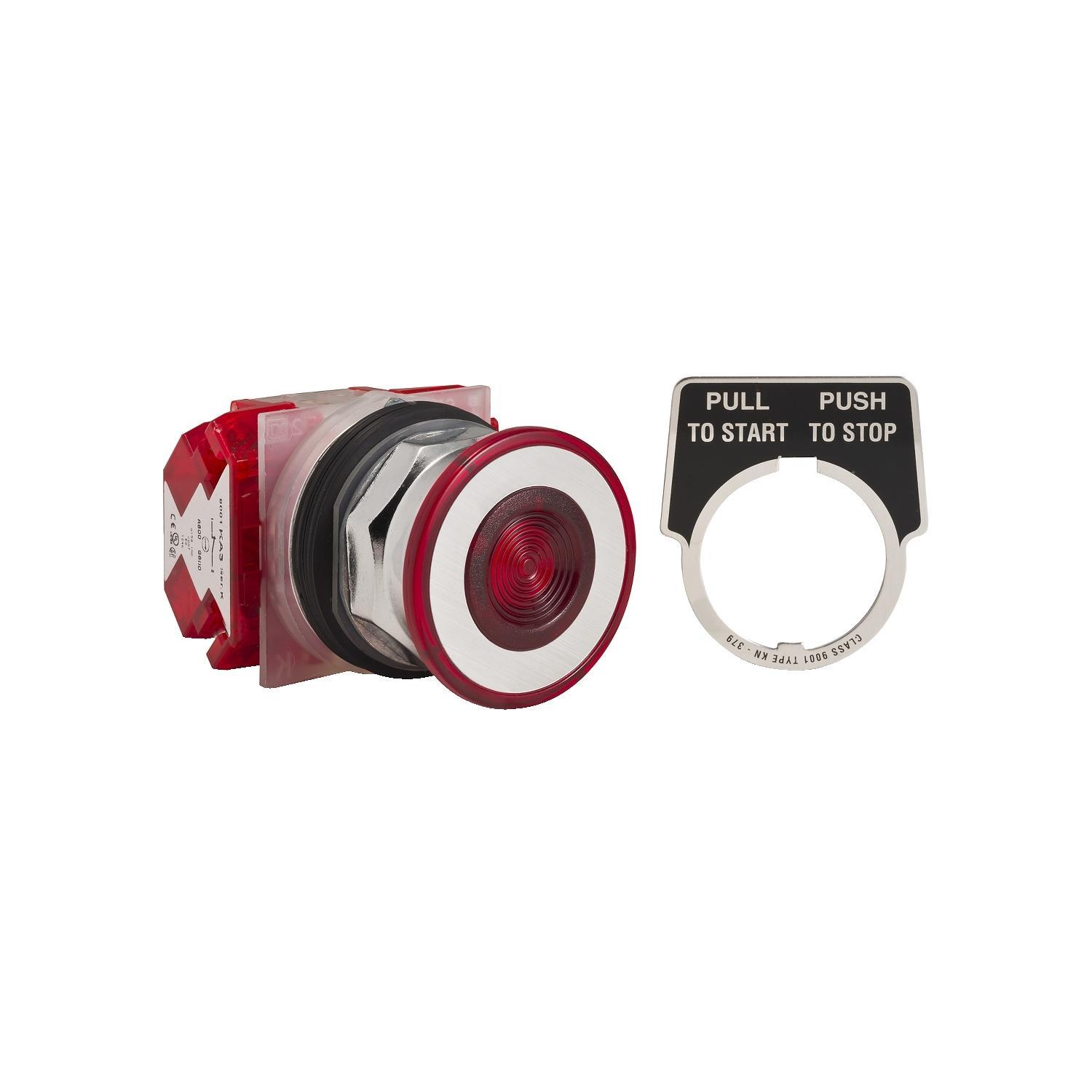

Image provided may only be a representation of
final product and may include optional equipment
9001KR9RH8
Schneider Electric 9001KR9RH8 Harmony Non-Illuminated Pushbutton
Part Number # 9001KR9RH8
SKU # 2247214
Schneider Electric 9001KR9RH8 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 9001KR9RH8 |
| SKU #: | 2247214 |
| Actuator: | Mushroom Head |
| Bezel/Housing: | Polished Chrome Metal |
| Contact Configuration: | 2NC |
| Contact Rating: | 6 A at 120 V AC, 3 A at 240 V AC, 1.5 A at 460 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Enclosure Type: | NEMA 1/2/3/3R/4/6/12/13/IP65/IP66 |
| Environmental Conditions: | -22 to 140 deg F Operating, -40 to 158 deg F Storage |
| Operator Type: | Push-Pull/Spring Return |
| Series: | 9001KR |
| Size: | 30, 30 mm |
| Terminal Type: | Screw Clamp |
| Type: | Type K Heavy Duty Dusttight/Oiltight/Watertight Mechanically Interlocked |
| Connection type: | Screw-On |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 00785901034407 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric 9001KR9RH8 Harmony Non-Illuminated Pushbutton
Brand: Schneider Electric
Part Number: 9001KR9RH8
Schneider Electric Harmony Non-Illuminated Pushbutton, Type K Heavy Duty Dusttight/Oiltight/Watertight Mechanically Interlocked, Series: 9001KR, 30 mm Size, 2NC Contact Configuration, Slow Break Contact, Maintained Contact Mode, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, Push-Pull/Spring Return Operator, Bezel/Housing: Polished Chrome Metal, Mushroom Head Actuator, Screw-On Connection, Screw Clamp Terminal,
Additional Description: SQD -9001KR9RH8 (N) PUSH BUTTON 600VAC 10A 30MM T-K NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull, 2NC
9001KR9RH8 Application
Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Wastewater, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation and Textile, Petrochemical, Material Handling, Wastewater Treatment, Metallurgy and Industrial Applications9001KR9RH8 Item Features
- Full size and shallow depth light modules
- Reduced panel space with side by side mounting
- Easy to actuate, tactile feel operators
- Maintenance-free operation
- Simplified installation and identification
- Wide range of accessories, colored lenses and knobs for customer adaptations
- Full guard in plastic
- Without indicator
- https://www.youtube.com/watch?v=z4UUZQz35-w&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn
9001KR9RH8 Standards
RoHS Compliant|REACH Compliant|CSA C22.2 No. 14|UL 508|CE Certified|EN/IEC 60947-5-1|EN/IEC 60947-1|EN/IEC 60947-5-4|JIS C 4520|JIS C 852|Green Premium|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2247214Part Number #9001KR9RH8UNSPSC39122216UPC00785901034407
