Part Number # 9001SKR4GH5
SKU # 2441668
Image Disclaimers Message
Brand: Schneider Electric
9001SKR4GH5
Schneider Electric 9001SKR4GH5
Part Number # 9001SKR4GH5
SKU # 2441668
$175.70 / Each
Schneider Electric 9001SKR4GH5 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 9001SKR4GH5 |
| SKU #: | 2441668 |
| Actuator: | Mushroom Head |
| Bezel/Housing: | Plastic |
| Contact Configuration: | 1NO |
| Contact Rating: | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Enclosure Type: | NEMA 1/2/3/3R/4/4X/12/13/IP65/IP66 |
| Environmental Conditions: | -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| Operator Type: | Spring Return |
| Series: | 9001SK |
| Size: | 30 mm |
| Terminal Type: | Screw Clamp |
| Type: | Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Mechanically Interlocked |
| Color: | Green |
| Connection type: | Snap-In |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 00785901042792 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$175.70 / Each
Quantity:
- Square D Harmony Non-Illuminated Pushbutton, Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Mechanically Interlocked, Series: 9001SK, 30 mm Size, 1NO Contact Configuration, Slow Break Contact, Momentary Contact Mode, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, Bezel/Housing: Plastic, Mushroom Head Actuator, Snap-In Connection, Screw Clamp Terminal, NEMA 1/2/3/3R/4/4X/12/13/IP65/IP66 Enclosure, Panel Mounting, Green, Environmental Conditions: -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature
9001SKR4GH5 Application
Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Wastewater, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation and Textile, Petrochemical, Material Handling, Wastewater Treatment, Metallurgy and Industrial Applications9001SKR4GH5 Item Features

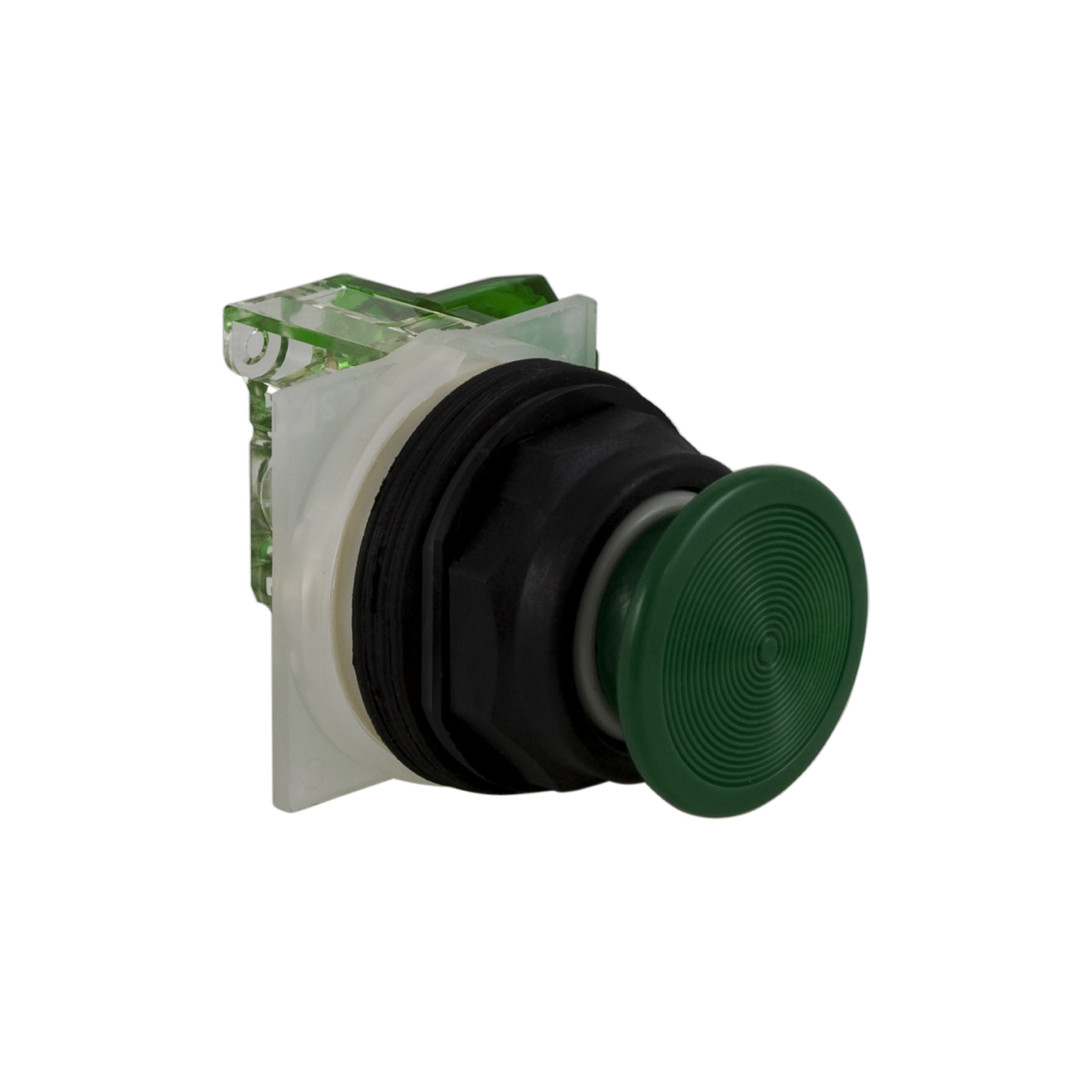

- This Schneider Electric Harmony 9001SK modular flush green push-button has 2 positions, operates with spring return mechanism and has a double insulated plastic bezel
- It has 1 x NO contact and fits in a 30mm hole
- It is supplied with contact block and us
9001SKR4GH5 Standards
RoHS Compliant|REACH Compliant|CSA File No. LR25490|CSA C22.2 No. 14|Class 3211-03|UL 508|UL File No. E78403|UL File No. E42259|CCN NKCR|EN/IEC 60947-1|EN/IEC60947-5-1|EN/IEC60947-5-4|JIS C 4520|JIS C 852|CE Certified|Green Premium|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2441668Part Number #9001SKR4GH5UNSPSC39122216UPC00785901042792
