Part Number # 9001SKR9GH13
SKU # 2441266
9001SKR9GH13
Schneider Electric 9001SKR9GH13
Part Number # 9001SKR9GH13
SKU # 2441266
Square D 9001SKR9GH13 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 9001SKR9GH13 |
| SKU #: | 2441266 |
| Actuator: | Mushroom Head |
| Bezel/Housing: | Plastic |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Contact Rating: | 6 A at 120 V AC, 3 A at 240 V AC, 1.5 A at 460 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Enclosure Type: | NEMA 1/2/3/3R/4/4X/12/13/IP65/IP66 |
| Environmental Conditions: | -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| Number of Positions: | 2 |
| Operator Type: | Push-Pull/Spring Return |
| Series: | 9001SK |
| Size: | 30 mm |
| Terminal Type: | Screw Clamp |
| Type: | Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Mechanically Interlocked |
| Connection type: | Screw-On |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 00785901043027 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric 9001SKR9GH13
Brand: Square D
Part Number: 9001SKR9GH13
Square D™ Harmony™ Non-Illuminated Pushbutton, Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Mechanically Interlocked, Series: 9001SK, 30 mm, 1NO-1NC, Slow Break Contact, Maintained Contact Mode, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, Push-Pull/Spring Return Operator, 2 Positions, Bezel/Housing: Plastic, Mushroom Head, Screw-On, Screw Clamp Terminal, NEMA 1/2/3/3R/4/4X/12/13/IP65/
Additional Description: SQD -9001SKR9GH13 PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS
Catalog Description: Push-button, Harmony 9001SK, plastic, mushroom 41mm, green, 30mm, 2 positions, push-pull, 1 C/O
9001SKR9GH13 Application
Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Wastewater, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation and Textile, Petrochemical, Material Handling, Wastewater Treatment, Metallurgy and Industrial Applications9001SKR9GH13 Item Features
- This Schneider Electric Harmony 9001SK modular green push-button has 2 positions and operates with a stay-put mechanism
- It has a round shape and is supplied with contact block, 40mm mushroom head and 1 x NO + 1 x NC contact
- It fits in a 30mm hole
- It ha
9001SKR9GH13 Standards
RoHS Compliant|REACH Compliant|CSA File No. LR25490|CSA C22.2 No. 14|Class 3211-03|UL 508|UL File No. E78403|UL File No. E42259|CCN NKCR|EN/IEC 60947-1|EN/IEC60947-5-1|EN/IEC60947-5-4|JIS C 4520|JIS C 852|CE Certified|Green Premium|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2441266Part Number #9001SKR9GH13UNSPSC39122216UPC00785901043027

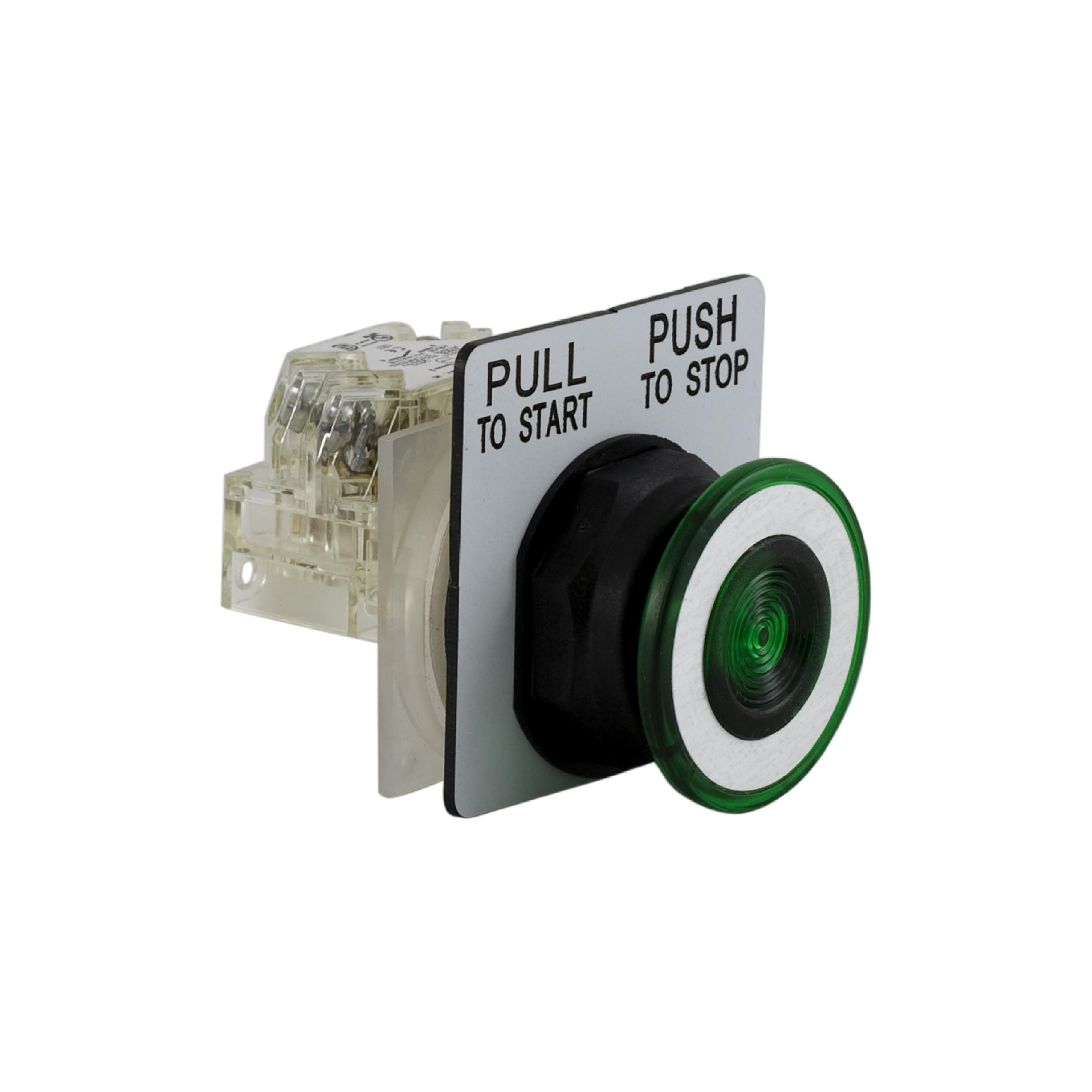

Image provided may only be a representation of final product and may include optional equipment
