Part Number # 9001SKS11BH2
SKU # 2239905
Image Disclaimers Message
9001SKS11BH2

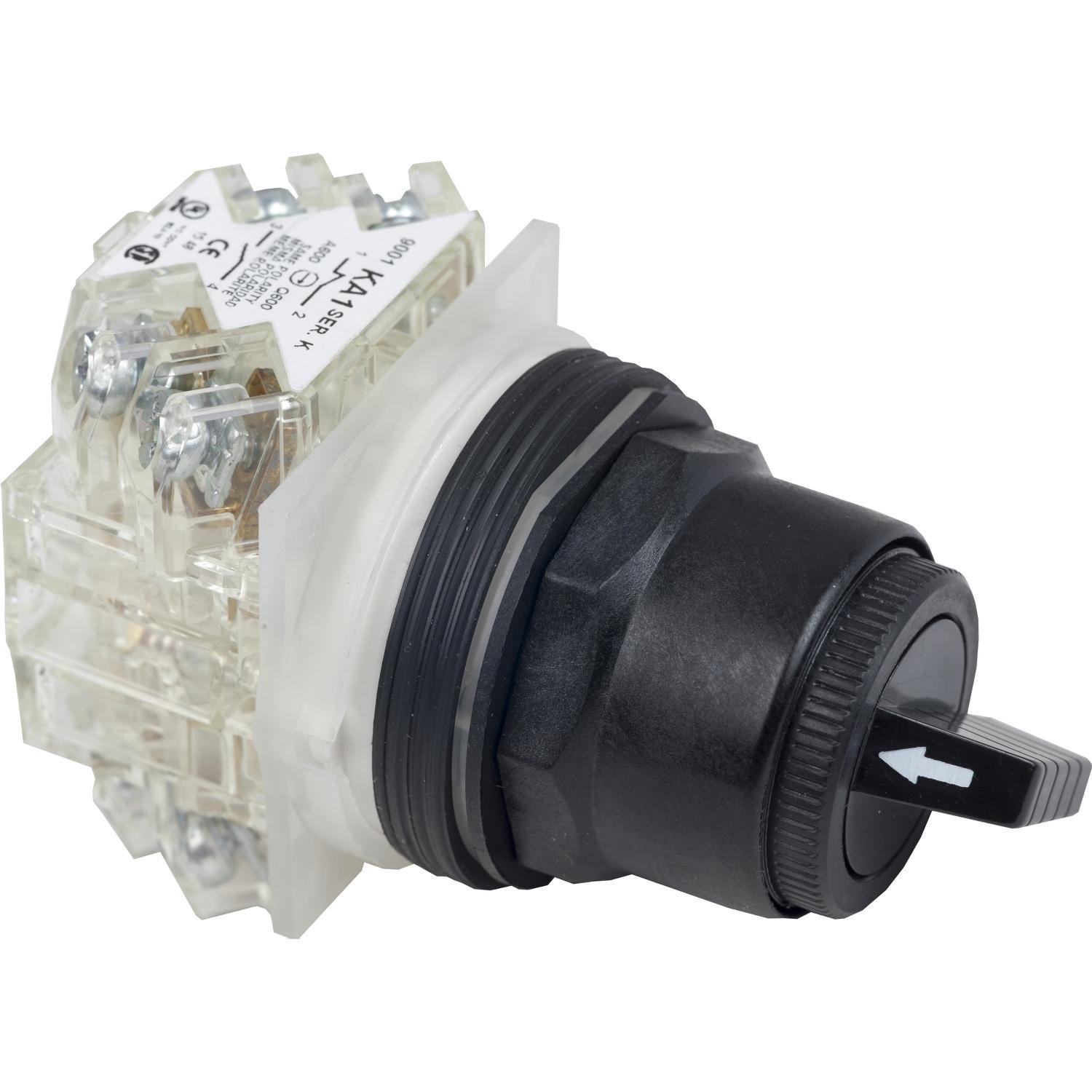

Schneider Electric 9001SKS11BH2 Harmony Selector Switch
Part Number # 9001SKS11BH2
SKU # 2239905
$158.98 / Each
Schneider Electric 9001SKS11BH2 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 9001SKS11BH2 |
| SKU #: | 2239905 |
| Bezel/Housing: | Plastic |
| Cam Code: | E |
| Contact Configuration: | 2NO-2NC |
| Contact Rating: | 6 A at 120 V AC, 3 A at 240 V AC, 1.5 A at 480 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC, AC15 - DC13, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC, AC15 - DC13 |
| Enclosure Type: | NEMA 1/2/3/3R/4/4X/6/12/13/IP66 |
| Environmental Conditions: | -13 to 158 deg F Operating, -40 to 158 deg F Storage, -25 to 70 deg C Operating Temperature, -40 to 158 deg F Storage Temperature |
| Number of Positions: | 2 |
| Operator Type: | Knob |
| Series: | 9001SK |
| Size: | 1.18 in, 30 |
| Terminal Type: | Screw |
| Throw: | 70 deg/Left to Right |
| Type: | Heavy Duty Non-Illuminated Round Type SK, Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Heavy Duty Round |
| Color: | Black |
| Connection type: | Screw Clamp |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 00785901043539 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$158.98 / Each
Quantity:
- Schneider Electric Harmony Selector Switch, Heavy Duty Non-Illuminated Round Type SK, Series: 9001SK, 1.18 in, 2NO-2NC, Slow Break Contact, Maintained Contact Mode, 6 A at 120 V AC, 3 A at 240 V AC, 1.5 A at 480 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC, AC15 - DC13 Contact, Knob Operator, 2 Positions, 70 deg/Left to Right Throw, Cam Code: E, Bezel/Housing: Plastic, Screw Terminal, NEMA 1/2/3/3R/4/4X/6/12/13/IP66, Panel Mount, Black, Environmental Conditions: -25 to 70 deg C Operating Temperature, -40 to 158 deg F Storage Temperature
9001SKS11BH2 Application
Non-Illuminated Pushbutton, Automotive, Machine Tools, Crane/Hoist, Food, Beverage, Material Handling, Petrochemical, Waste Water Treatment, Metallurgy, Industrial and Indoor/Outdoor Applications9001SKS11BH2 Item Features
- This robust range offers long-term reliability in heavy duty industrial applications and extreme environments
- Simple and easy installation reduces commissioning time
- Flexible, compact and modular, it enables you to build the right operator to meet your requirements
- Easy installation with octagonal ring nut
9001SKS11BH2 Standards
CE Marking|CSA Certified File No. LR24590 Class 3211-03|ECCN: EAR99|REACH Compliant|Green Premium Compliant|IEC/EN Certified|NOM Certified|UL Listed File No. E42259 CCN NKCR|WEEE Listed|PROP65: This product can expose you to chemicals including - nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2239905Part Number #9001SKS11BH2UNSPSC39122216UPC00785901043539
