Part Number # 9001SKS72FBH37
SKU # 2401232
Image provided may only be a representation of
final product and may include optional equipment
9001SKS72FBH37

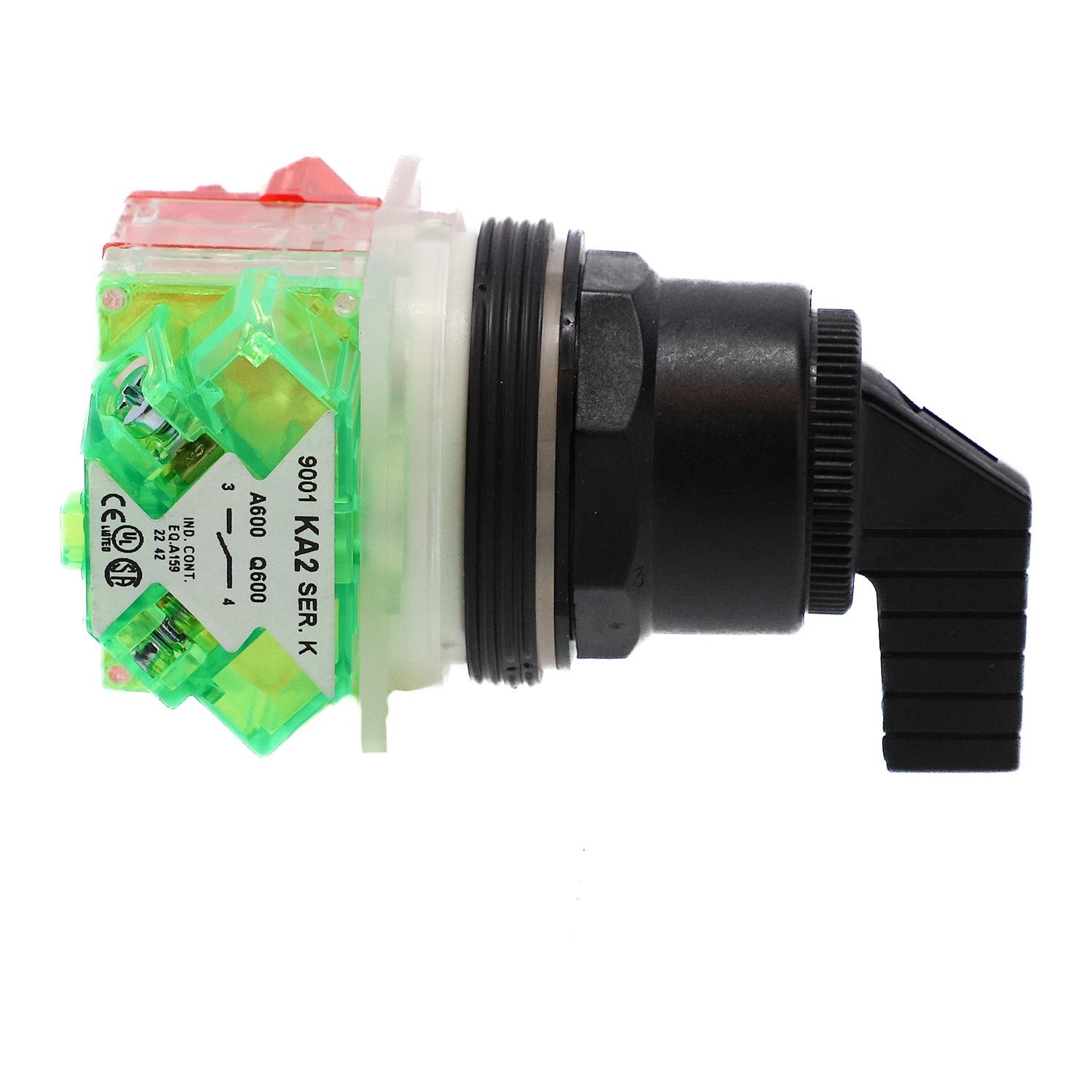

Schneider Electric 9001SKS72FBH37 Harmony Selector Switch
Part Number # 9001SKS72FBH37
SKU # 2401232
Schneider Electric 9001SKS72FBH37 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 9001SKS72FBH37 |
| SKU #: | 2401232 |
| Bezel/Housing: | Black Plastic |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Contact Rating: | 10 A 600 V AC, 10 A 600 VAC |
| Enclosure Type: | NEMA 1/2/3/3R/4/4X/6/12/13/IP66 |
| Environmental Conditions: | -25 to 70 deg C Operating/-40 to 70 deg C Storage |
| Series: | 9001SK |
| Size: | 30 mm |
| Terminal Type: | Screw Clamp |
| Throw: | Right To Centre Spring Return |
| Connection type: | Cable Connector |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 00785901398769 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric 9001SKS72FBH37 Harmony Selector Switch
Brand: Schneider Electric
Part Number: 9001SKS72FBH37
Square D Harmony Selector Switch, Series: 9001SK, 30 mm, 1NO-1NC, Silver Alloy Contact, 10 A 600 VAC Contact, Right To Centre Spring Return Throw, Bezel/Housing: Black Plastic, Cable Connector, Screw Clamp Terminal, NEMA 1/2/3/3R/4/4X/6/12/13/IP66, Panel Mount, Environmental Conditions: -25 to 70 deg C Operating/-40 to 70 deg C Storage
Additional Description: SQD -9001SKS72FBH37 (N) SELECTOR SWITCH 600VAC 10A 30MM SK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Selector switch, Harmony 9001SK, plastic, long handle, black, 30mm, 3 positions, spring return right to center, 1 NC + 1 NO
9001SKS72FBH37 Application
For automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy9001SKS72FBH37 Item Features
- Simple and easy installation reduces commissioning time
- Flexible, compact and modular, it enables you to build the right operator to meet your requirements
- Suitable for use in applications requiring resistance to corrosion
9001SKS72FBH37 Standards
IEC 60529|CE Certified|CSA LR24590|Class 3211 03|Green Premium|RoHS Compliant|UL E42259|CCN|NKCR|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65PROP65s.ca.govSKU #2401232Part Number #9001SKS72FBH37UNSPSC39122216UPC00785901398769
