9080FB3611J

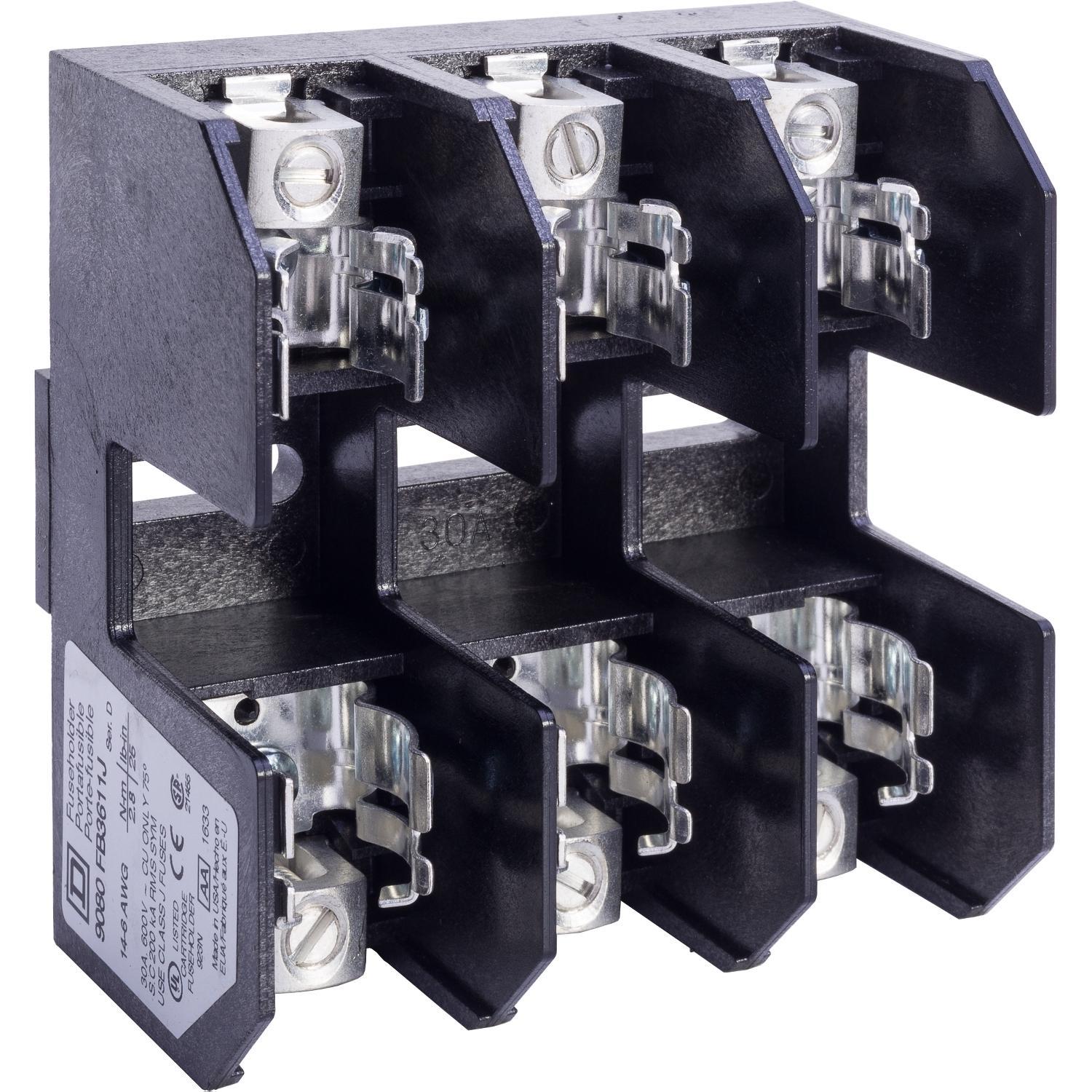

Schneider Electric 9080FB3611J Type FB Fuse Holder
Part Number # 9080FB3611J
SKU # 141271
$85.25 / Each
Typical price:$93.56 / Each
Schneider Electric 9080FB3611J Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 9080FB3611J |
| SKU #: | 141271 |
| Amperage Rating: | 30, 30 A |
| Class: | J |
| Dimensions: | 4.07 in H x 4.72 in W x 2.09 in D, 4.72 in W x 2.09 in D x 4.07 in H |
| Fuse Diameter: | 13/16, 13/16 in |
| Fuse Length: | 2-1/4, 2-1/4 in |
| Number of Poles: | 3 |
| Suitable For Use With: | Thermoplastic |
| Temperature Rating (Degrees F): | -40 to 257, -40 to 257 deg F |
| Type: | Type FB |
| Wire Size: | 14 to 2, 14 to 2 AWG |
| Connection type: | Box Lug/Screw |
| Country of origin: | US |
| Material: | Thermoplastic |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121624 |
| UPC: | 00785901139638 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$85.25 / Each
Typical price:$93.56 / Each
Quantity:
- Square D Fuse Holder, Type FB, 600 V AC/DC, 30 A, 3 Pole, Class: J, Box Lug/Screw Connection, 14 to 2 AWG Wire, Surface Mounting, 2-1/4 in Fuse Length, 13/16 in Diameter Fuse, -40 to 257 deg F, Thermoplastic, 4.72 in W x 2.09 in D x 4.07 in H Dimensions
9080FB3611J Specifications
- All class H, R and J fuseholders have reinforced fuse clips
- Versatility, ease of use
- Labor savings
- Enhanced panel design
- This family of fuseholders can be used to protect control circuits and equipment in control panels
- High impact thermoplastic
- Screw terminals 25 in-lb for AWG 14 to 6 wire copper terminal tightening torque
9080FB3611J Application
Control System and Industrial Control Application9080FB3611J Item Features
- All class H, R and J fuse holders have reinforced fuse clips
- Versatility, ease of use
- Labor savings
- Enhanced panel design
- This family of fuseholders can be used to protect control circuits and equipment in control panels
- High impact thermoplastic housing
- Screw terminals 25 in-lb for AWG 14 to 6 wire copper terminal tightening torque
9080FB3611J Standards
CSA file 70360 class 6225 01;CE;UL listed file E40747 CCN IZLTSKU #141271Part Number #9080FB3611JUNSPSC39121624UPC00785901139638
