Part Number # 9422ATDF631
SKU # 84815

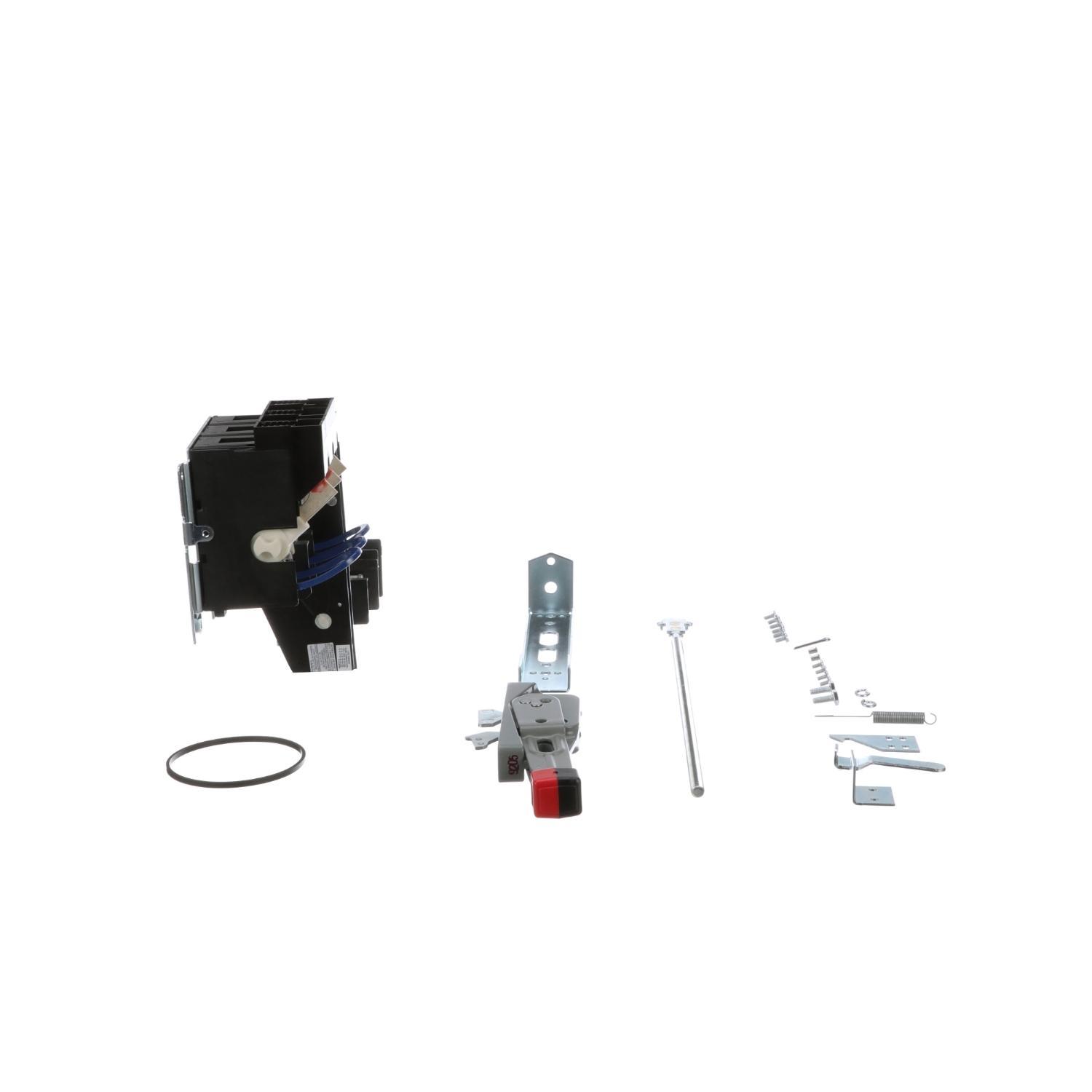

Image provided may only be a representation of
final product and may include optional equipment
9422ATDF631
Schneider Electric 9422ATDF631 Fixed/Variable Depth Fusible Disconnect Switch
Part Number # 9422ATDF631
SKU # 84815
Schneider Electric 9422ATDF631 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 9422ATDF631 |
| SKU #: | 84815 |
| Actuator Type: | Handle |
| Amperage Rating: | 60 A |
| Enclosure Type: | NEMA 1/3/3R/4/12 |
| Horsepower: | 50, 50 hp |
| Number of Poles: | 3 |
| Series: | 9422AT |
| Terminal Type: | Lug |
| Type: | Fixed/Variable Depth Fusible |
| Country of origin: | MX |
| Mounting type: | Bracket/Flange |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122233 |
| UPC: | 00785901872191 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric 9422ATDF631 Fixed/Variable Depth Fusible Disconnect Switch
Brand: Schneider Electric
Part Number: 9422ATDF631
Square D Disconnect Switch, Fixed/Variable Depth Fusible, Series: 9422AT, 600 VAC, 60 A, 50 hp, 3 Pole, Handle Actuator, Class H/J/K/R Insulation, NEMA 1/3/3R/4/12 Enclosure, Bracket/Flange Mounting, Lug Terminal
Additional Description: SQD -9422ATDF631 Switch A1 Handle+Mech Fuse 60A 600VAC
Catalog Description: Operating mechanism, flange mounted, variable depth, 60A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4
9422ATDF631 Application
For control panel installations and variable depth rod operator applications9422ATDF631 Includes
9422A1 6 in Handle, 9422TDF63 6-5/8 to 18 in Variable Depth Disconnect Switch and Operating Mechanism9422ATDF631 Item Features
- Used with all disconnect switch and circuit breaker installations
- Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
- Two mounting methods offered for flexibility
9422ATDF631 Standards
RoHS Compliant|ECCN: EAR99|CSA File No. LR44199 Class 4652-04|UL File No. E52639|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov9422ATDF631 Warranty
18 monthsSKU #84815Part Number #9422ATDF631UNSPSC39122233UPC00785901872191
