Part Number # A9F85363
SKU # 2462795
A9F85363
Schneider Electric A9F85363
Part Number # A9F85363
SKU # 2462795
$395.27 / Each
Typical price:$450.00 / Each
Square D (Schneider Electric) A9F85363 Key Features
| Brand: | Square D (Schneider Electric) |
|---|---|
| Part Number # : | A9F85363 |
| SKU #: | 2462795 |
| Actuator Type: | Toggle |
| Amperage Rating: | 63 A |
| Dimensions: | 3.3 in H x 2.1 in W x 3.09 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 15 kA |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -31 to 158 deg F |
| Trip Range: | 12 x In +/- 20 % |
| Trip Type: | D-Curve/Thermal Magnetic |
| Connection type: | Terminal |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 03606480083280 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$395.27 / Each
Typical price:$450.00 / Each
Quantity:
- Schneider Electric, A9F85363, Circuit Breaker, 63 A, 50/60 Hz Frequency, 15 kA Interrupt, D-Curve/Thermal Magnetic Trip, 12 x In +/- 20 % Trip, 3 Pole, Toggle Actuator, Terminal Connection, IP20 Enclosure, DIN Rail Mounting, -31 to 158 deg F, 3.3 in H x 2.1 in W x 3.09 in D Dimensions, White
A9F85363 Item Features
- Combine short-circuit and overload currents protection
- Visitrip system for fast detection of faulty outgoers for shorter repair times
- VisiSafe system for offering enhanced security when it comes to circuit protection
- Option to add auxiliaries, remote monitoring and residual current device (Vigi)
- Faster, better and more flexible installation of device thanks to comb busbar
A9F85363 Standards
IP20|IEC 60947-2|IEC 60898-1|EN 60898-1|EN 60947-2SKU #2462795Part Number #A9F85363UNSPSC39121603UPC03606480083280

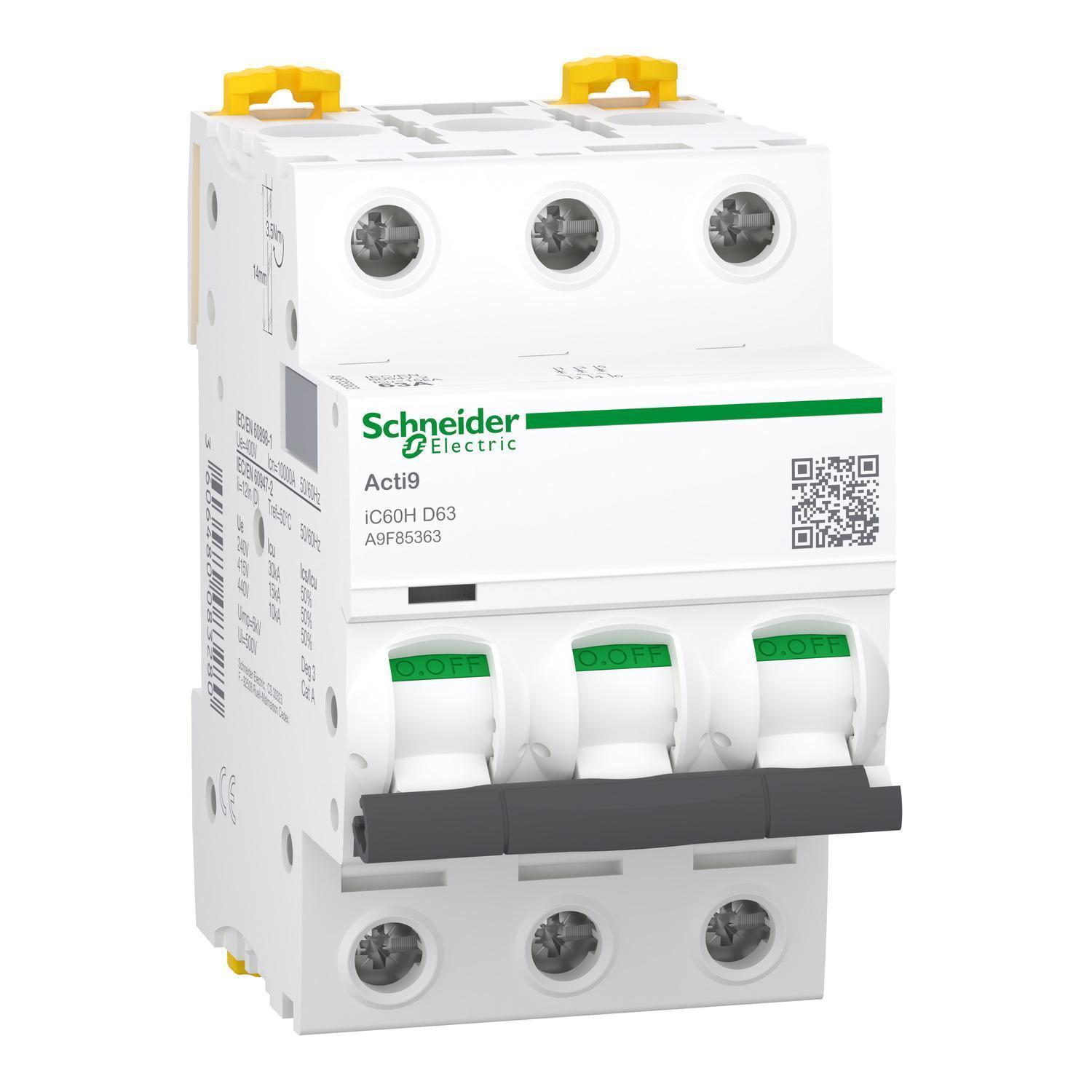

Image provided may only be a representation of final product and may include optional equipment
