Part Number # A9MEM3200
SKU # 2456559
A9MEM3200

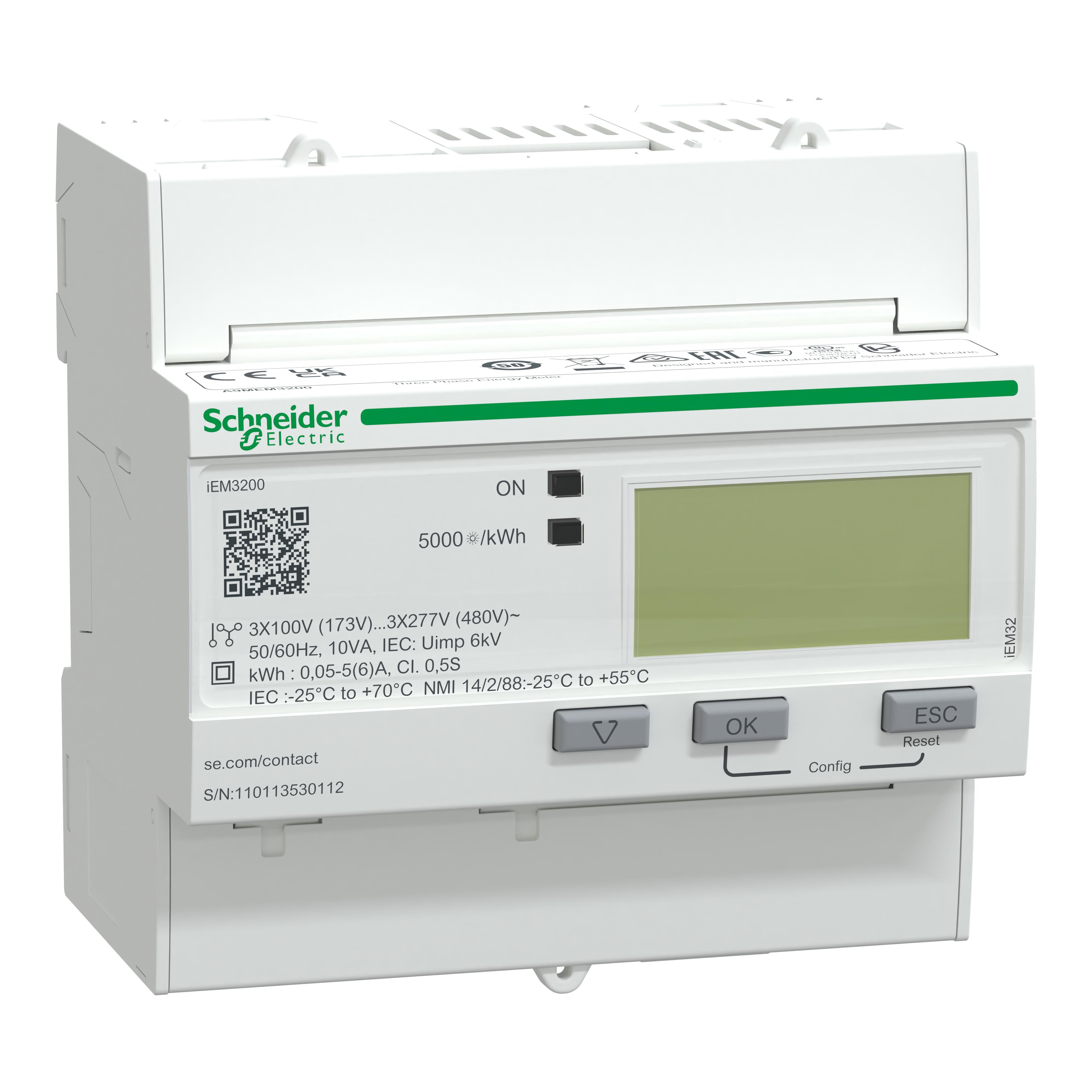

Schneider Electric A9MEM3200
Part Number # A9MEM3200
SKU # 2456559
$471.45 / Each
Typical price:$542.17 / Each
Schneider Electric A9MEM3200 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | A9MEM3200 |
| SKU #: | 2456559 |
| Dimensions: | 3.74 in H x 3.54 in W x 2.72 in D |
| Display Type: | LCD |
| Frequency Rating: | 50 to 60 Hz |
| Series: | SE Series |
| Country of origin: | CN |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 40151552 |
| UPC: | 03606480481536 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$471.45 / Each
Typical price:$542.17 / Each
Quantity:
Schneider Electric A9MEM3200
Brand: Schneider Electric
Part Number: A9MEM3200
Additional Description: SQD -A9MEM3200 (N) IEM3200 CT OPERATED CL 0.5S ENERGY METER NON-CANCELABLE, NON-RETURNABLE
Catalog Description: iEM3200 energy meter - CT
A9MEM3200 Application
For 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 toA9MEM3200 Includes
Green LED power-on indicator, flashing yellow LED for accuracy checking and communication indicatorsA9MEM3200 Item Features
- The offer ranges from basic kWh meters to more advanced energy meters able to measure a variety of electrical parameters
- The meters provide energy consumption data via graphical display, pulse output and/or Modbus communication
- There are there are ten different models to suit your specific needs
- The meters are fully compliant with the Acti 9 communication system, so integrating electrical distribution into your facility management system has never been simpler
- Compact size with double fixation on the DIN rail
- Anti-tamper security features ensure the integrity of you data
- Internal clock saves the date and time of the last reset
- Internal clock saves date and time for 48h in case of power outage
- Multi-tariff selection by digital inputs or the internal clock
- Digital output for alarming or configured as pulse output
- WAGES monitoring
- Active energy type of measurement
- External CT 1 A or 5 A input type
- 100 to 277 V173 to 480 V rated voltage
- Electronic technology type
- 32 samples/cycle sampling rate
- 1 to 32767000 mA measurement current
- 99999999 MWh maximum value measured
A9MEM3200 Standards
CE IEC 61010 safety)CE EN 61557-12 power monitor)CE IEC 61326-1 EMC)CULus UL 61010 safety)CULus ANSI C12.20 sub-meter)EAC sub-meter)RCM NMI M 6-1 sub-meter)UL|IEC 62053-23IEC 62053-22IEC 61036IEC 61557-12UL 61010-1IEC 61010|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govA9MEM3200 Warranty
18 monthsSKU #2456559Part Number #A9MEM3200UNSPSC40151552UPC03606480481536
Image provided may only be a representation of final product and may include optional equipment
