Part Number # ATS01N103FT
SKU # 1064204
Image Disclaimers Message
ATS01N103FT

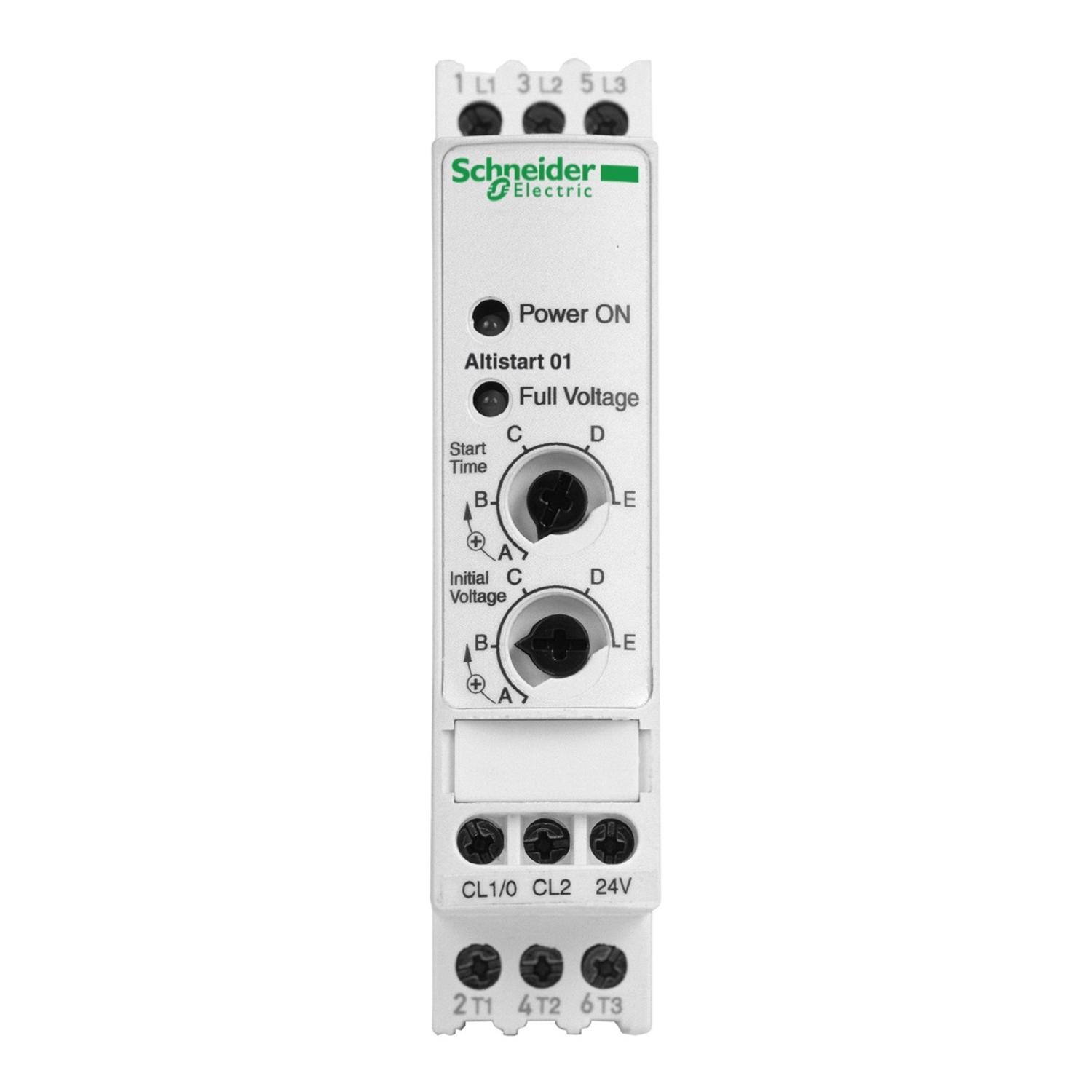

Schneider Electric ATS01N103FT Altistart 01 Soft Starter
Part Number # ATS01N103FT
SKU # 1064204
$103.89 / Each
Typical price:$120.00 / Each
Schneider Electric ATS01N103FT Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | ATS01N103FT |
| SKU #: | 1064204 |
| Amperage Rating: | 3, 3 A |
| Dimensions: | 23 mm W x 100 mm D x 100 mm H, 3.94 in H x 0.91 in W x 3.94 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Motor Power: | 1/2 hp, 1-1/2 hp |
| Operating Temperature: | -10 to 40, -10 to 40 deg C |
| Phase: | 1, 1 ph |
| Series: | ATS01N1 |
| Setting: | 1 to 5 s |
| Timing: | 1 to 5, 1 to 5 s |
| Type: | Integrated Bypass |
| Wattage: | 0.55/1.1 kW |
| Connection type: | Cage |
| Country of origin: | ID |
| Manufacturer Name: | YAGEO Corporation |
| UNSPSC: | 39121521 |
| UPC: | 00785901534181 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$103.89 / Each
Typical price:$120.00 / Each
Quantity:
- Telemecanique Altistart 01 Square D Soft Starter, Integrated Bypass, Series: ATS01N1, 99 to 528 VAC, 3 A, 50/60 Hz Frequency, 0.55/1.1 kW Wattage, 1/2 hp, 1-1/2 hp Motor, Setting: 1 to 5 s, 1 to 5 s Timing, 1 ph, Cage Connection, IP20 Enclosure, -10 to 40 deg C Operating, 23 mm W x 100 mm D x 100 mm H Dimensions
ATS01N103FT Application
Asynchronous Motors ApplicationsATS01N103FT Item Features
- Provides smooth starting for your pumps, fans, compressors and machinery, avoiding mechanical stresses and extending their service life progressive start limits the starting and stopping noise of motors, reducing hearing discomfort for operators on the work floor 22 mm W
- It is one of the smallest soft starters on the market
- It can be installed nearly everywhere simple setup with only two settings
- Possible to configure by non-specialists precise control over start time gives capability to match your systems inertia and mechanical limits integrated bypass reduces noise and decreases heat dissipation
- Compatibility with both single and 3 ph motors reduces the number of spare parts to stock
ATS01N103FT Standards
B44.1-96/ASME A17.5|C-Tick.1 Certified|CCC Certified|CE Certified|CISPR 11|CSA C22.2 No 14|CSA Certified|ECCN: EAR99|EN 50082-1|EN 50082-2|EN/IEC 60947-1|EN/IEC 60947-4-2|EN/IEC 60947-5-1|EN/IEC 60947-5-5|GoST-R Certified|IEC 1000-3-2|IEC 1000-3-4|IEC 60068-2-6-5/60068-2-6/60068-2-27-50/60068-2-27|IEC 60947-4-2|IEC 61000-4-11|IEC 61000-4-12|IEC 61000-4-2|IEC 61000-4-3|IEC 61000-4-5|IEC 61000-4-6|IEC/EN 60947-4-2|JIS C 4520|JIS C 852|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|REACH Compliant|RoHS Compliant|UL 508|UL Listed|WEEE CompliantSKU #1064204Part Number #ATS01N103FTUNSPSC39121521UPC00785901534181
