ATS01N109FT

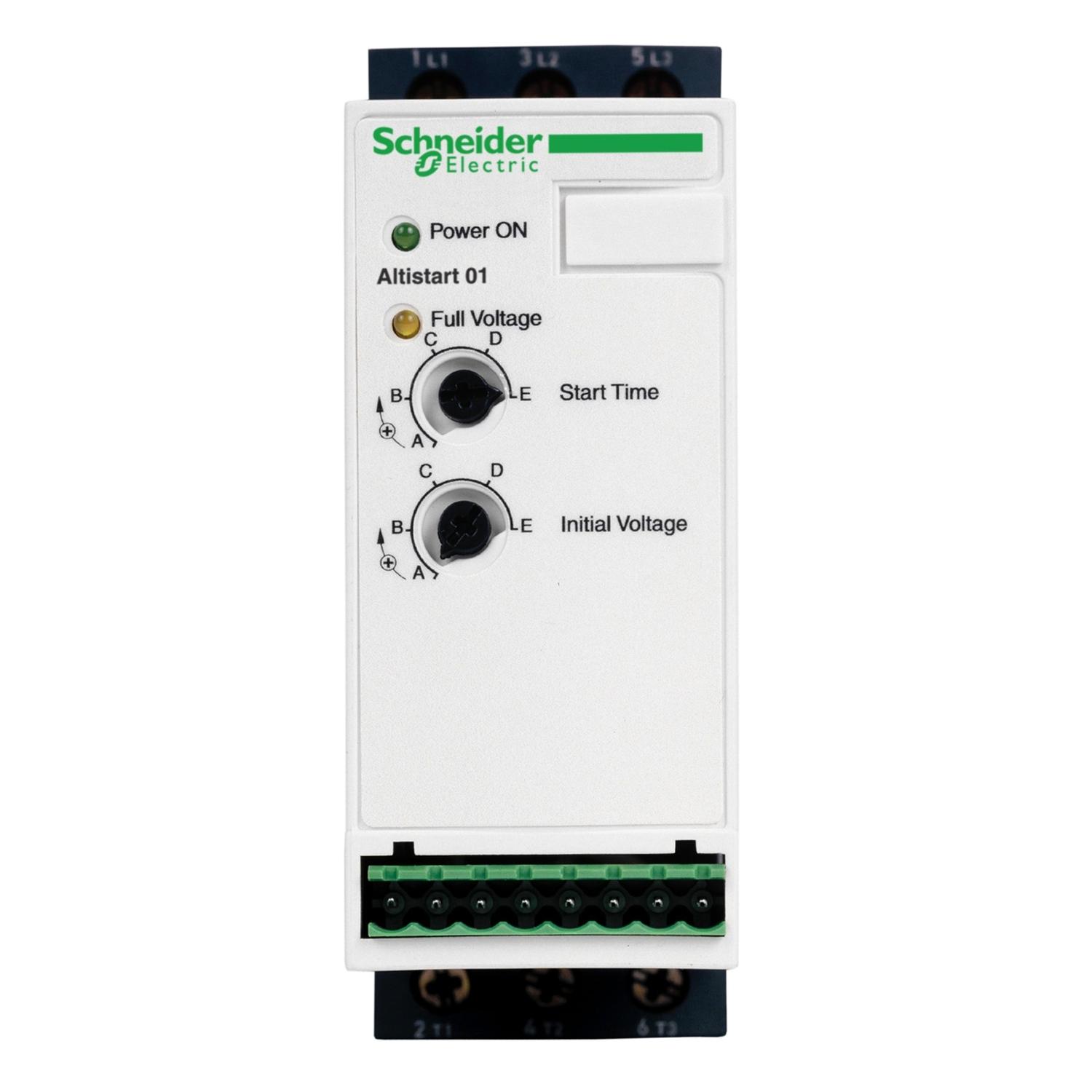

Schneider Electric ATS01N109FT Altistart 01 Soft Starter
Part Number # ATS01N109FT
SKU # 2133869
Schneider Electric ATS01N109FT Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | ATS01N109FT |
| SKU #: | 2133869 |
| Amperage Rating: | 9, 9 A |
| Dimensions: | 4.88 in H x 1.77 in W x 5.16 in D, 45 mm W x 131 mm D x 124 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Motor Power: | 1 hp, 2 hp, 5 hp |
| Operating Temperature: | -10 to 40, -10 to 40 deg C |
| Phase: | 1, 1 ph |
| Series: | ATS01N1 |
| Setting: | 1 to 5 s |
| Timing: | 1 to 5, 1 to 5 s |
| Type: | Integrated Bypass |
| Wattage: | 1.1/4 kW |
| Connection type: | Screw, Screw Clamp |
| Country of origin: | DE |
| Manufacturer Name: | YAGEO Corporation |
| UNSPSC: | 39121521 |
| UPC: | 00785901620761 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric ATS01N109FT Altistart 01 Soft Starter
Brand: Schneider Electric
Part Number: ATS01N109FT
Telemecanique Altistart 01 Square D Soft Starter, Integrated Bypass, Series: ATS01N1, 99 to 528 VAC, 9 A, 50/60 Hz Frequency, 1.1/4 kW Wattage, 1 hp, 2 hp, 5 hp Motor, Setting: 1 to 5 s, 1 to 5 s Timing, 1 ph, Screw Clamp Connection, IP20 Enclosure, -10 to 40 deg C Operating, 45 mm W x 131 mm D x 124 mm H Dimensions
Additional Description: SQD -ATS01N109FT SOFT-STARTER 9A 110 480V
Catalog Description: soft starter for asynchronous motor, Altistart 01, ATS01, 9A, 110 to 480V, 1.1 to 4kW
ATS01N109FT Application
Asynchronous Motors ApplicationsATS01N109FT Item Features
- This Altistart 01 can be used for a motor rated power up to 4kW or 5hp for 3-phase (110 to 480VAC) and Provides smooth starting for your pumps, fans, compressors and machinery, avoiding mechanical stresses and extending their service life progressive start limits the starting and stopping noise of motors, reducing hearing discomfort for operators on the work floor 45 mm W
- It is one of the smallest soft starters on the market
- It can be installed nearly everywhere simple setup with only two settings
- Possible to configure by non-specialists precise control over start time gives capability to match your systems inertia and mechanical limits integrated bypass reduces noise and decreases heat dissipation
- Compatibility with both single and 3 ph motors reduces the number of spare parts to stock
ATS01N109FT Standards
B44.1-96/ASME A17.5|C-Tick.1 Certified|CCC Certified|CE Certified|CISPR 11|CSA C22.2 No 14|CSA Certified|ECCN: EAR99|EN 50082-1|EN 50082-2|EN/IEC 60947-1|EN/IEC 60947-4-2|EN/IEC 60947-5-1|EN/IEC 60947-5-5|GoST-R Certified|IEC 1000-3-2|IEC 1000-3-4|IEC 60068-2-6-5/60068-2-6/60068-2-27-50/60068-2-27|IEC 60947-4-2|IEC 61000-4-11|IEC 61000-4-12|IEC 61000-4-2|IEC 61000-4-3|IEC 61000-4-5|IEC 61000-4-6|IEC/EN 60947-4-2|JIS C 4520|JIS C 852|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|REACH Compliant|RoHS Compliant|UL 508|UL Listed|WEEE CompliantSKU #2133869Part Number #ATS01N109FTUNSPSC39121521UPC00785901620761
