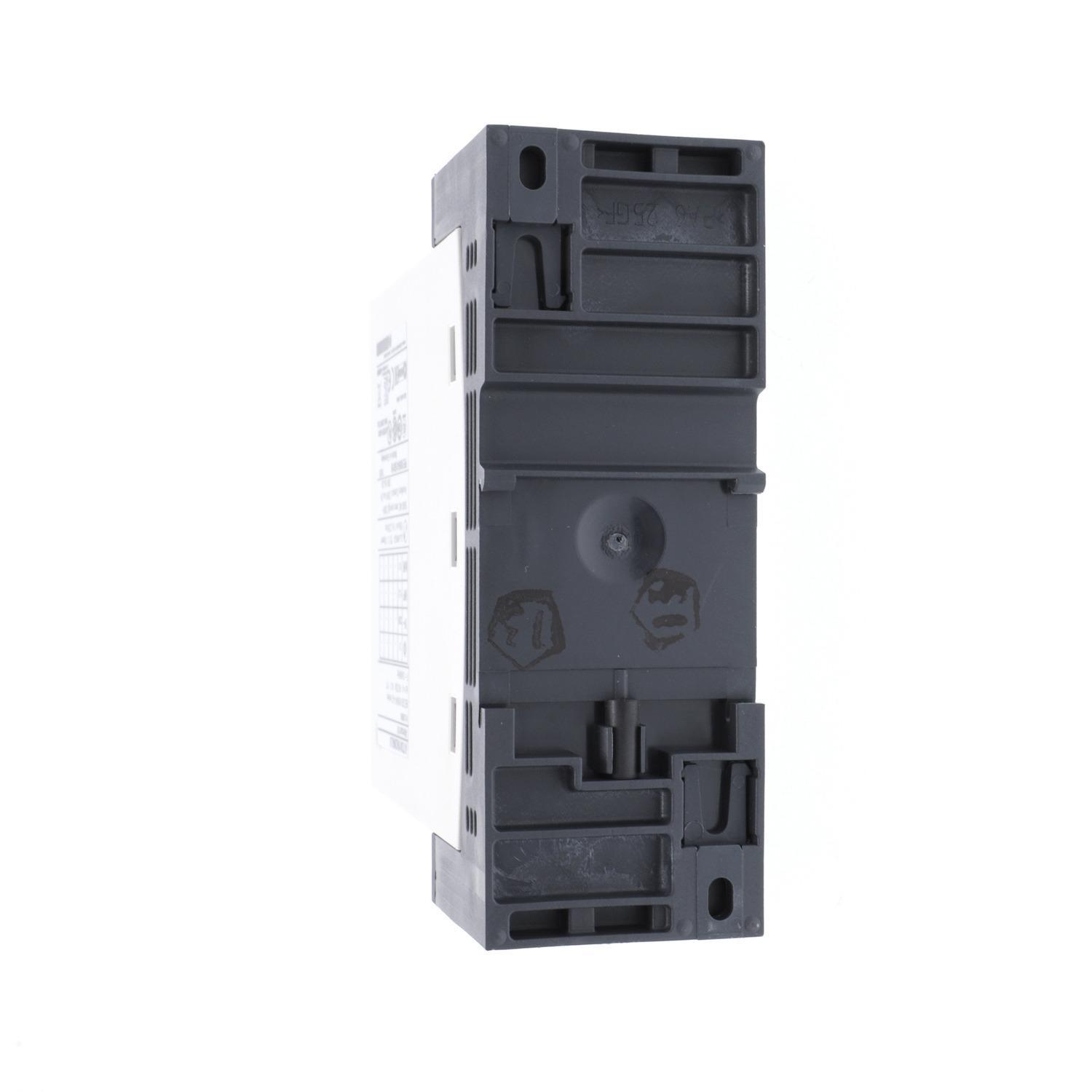

Schneider Electric ATS01N212LU Altistart 01 Soft Starter
Image Disclaimers Message
Schneider Electric ATS01N212LU Altistart 01 Soft Starter
Schneider Electric ATS01N212LU Altistart 01 Soft Starter
Part #:ATS01N212LU
SKU #: 2193448
$181.80/EA
Key Features
Part #:ATS01N212LU
SKU #: 2193448
Brand: Schneider Electric
Amperage Rating: 12, 12 A
Dimensions: 4.88 in H x 1.77 in W x 5.16 in D
Enclosure Type: IP20
Frequency Rating: 50/60, 50/60 Hz
Motor Power: 3, 3 hp
$181.80/EA
- This Altistart 01 can be used for a motor rated power up to 3kW or 3hp for 3-phase (200 to 240VAC),Dimensions 4
- Provides smooth starting for your pumps, fans, compressors and machinery, avoiding mechanical stresses and extending their service life progressive start limits the starting and stopping noise of motors, reducing hearing discomfort for operators on the work floor 45 mm wide
- It is one of the smallest soft starters on the market
- It can be installed nearly everywhere simple setup with only 2 settings
- Possible to configure by non-specialists precise control over start time gives capability to match your systems inertia and mechanical limits integrated bypass reduces noise and decreases heat dissipation
Specifications
Brand: Schneider Electric
Amperage Rating: 12, 12 A
Dimensions: 4.88 in H x 1.77 in W x 5.16 in D
Enclosure Type: IP20
Frequency Rating: 50/60, 50/60 Hz
Motor Power: 3, 3 hp
Operating Temperature: -10 to 40, -10 to 40 deg C
Phase: 3
Series: ATS01N2
Timing: 1 to 10, 1 to 10 s
Type: Integrated Bypass
Voltage Rating: 200 to 240, 200 to 240 VAC
Connection type: Screw
Country of origin: US
Manufacturer Name: YAGEO Corporation
UNSPSC: 39121521
UPC: 00785901675860
Schneider Electric ATS01N212LU Altistart 01 Soft Starter
Telemecanique Altistart 01 Square D Soft Starter, Integrated Bypass, Series: ATS01N2, 200 to 240 VAC, 12 A, 50/60 Hz, 3 hp Motor, 1 to 10 s Timing, 3, Screw, IP20, -10 to 40 deg C Operating, 4.88 in H x 1.77 in W x 5.16 in D
Additional Description: SQD -ATS01N212LU SOFT-START STOP 12A 200 240V
Catalog Description: soft starter for asynchronous motor, Altistart 01, ATS01, 12A, 200 to 240V, 2.2 to 3kW
Item FeaturesFor asynchronous motor
Item Features
Item FeaturesRoHS Compliant|IEC/EN 60947-4-2|UL Listed|CSA Certified|GoST-R Certified|C-Tick.1 Certified|CCC Certified|CE Certified|IEC 61000-4-12|IEC 61000-4-2|IEC 61000-4-3|IEC 61000-4-5|CISPR 11|IEC 60947-4-2|EN 50082-2|IEC 1000-3-2|IEC 1000-3-4|IEC 61000-4-6|IEC 61000-4-11|EN 50082-1|EN/IEC 60947-4-2|B44.1-96/ASME A17.5|REACH Compliant|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
