Part Number # ATS480C21Y
SKU # 2419620
Image provided may only be a representation of
final product and may include optional equipment
Brand: Schneider Electric
ATS480C21Y

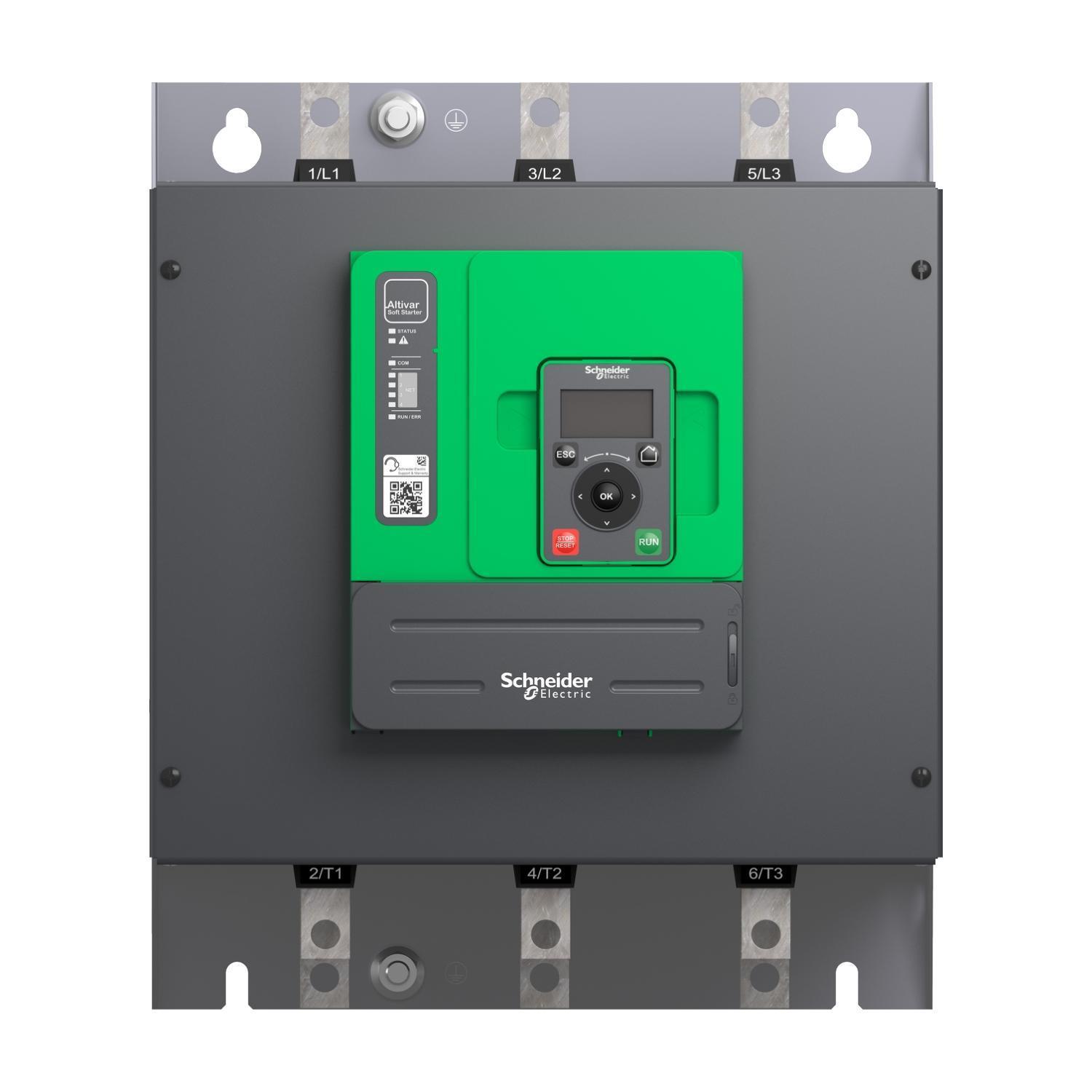

Schneider Electric ATS480C21Y ATS480 External Bypass Soft Starter
Part Number # ATS480C21Y
SKU # 2419620
$3729.59 / Each
Schneider Electric ATS480C21Y Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | ATS480C21Y |
| SKU #: | 2419620 |
| Amperage Rating: | 210 A |
| Coil Voltage: | 110 to 230 V AC, 110 to 230 VAC |
| Dimensions: | 14.96 in H x 12.60 in W x 10.91 in D |
| Enclosure Type: | IP00 |
| Frequency Rating: | 50 to 60 Hz |
| Motor Power: | 60, 75, 150, 200 hp |
| Operating Temperature: | 104 to 140 deg F |
| Phase: | 3 |
| Series: | ATS480 |
| Type: | External Bypass |
| Wattage: | 55 to 200 kW |
| Connection type: | RJ45 |
| Country of origin: | CN, ID |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121521 |
| UPC: | 03606481089106 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3729.59 / Each
Quantity:
Schneider Electric ATS480C21Y ATS480 External Bypass Soft Starter
Brand: Schneider Electric
Part Number: ATS480C21Y
Additional Description: SQD -ATS480C21Y Soft starter ATS480 210A 208 to 690V
Catalog Description: Soft starter, Altistart 480, 210A, 208 to 690V AC, control supply 110 to 230V AC
ATS480C21Y Application
Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applicationsATS480C21Y Item Features
- Operating cycle, Normal duty and heavy duty
- Motor type, asynchronous motors, IE2 - IE3 - IE4 motors
- Motor Control, Torque Control (TCS), voltage control
- Current limitation 500% current rating (up 700% of the rated motor current)
- Dynamic braking
- DC injection
- Thermal protection, Electronic overload relay, with PTC, with PT100 2- or 3-wire
- Pre-heating
- Smoke extraction
- Multi-motor cascade
- 2nd motor set
- Cybersecurity compliant firmware upgrade
- Embedded Modbus serial
- Options, EtherNet/IP, Modbus TCP, CANopen (RJ45 Daisy chain, Sub-D, screw terminals), PROFINET, PROFIBUS DP V1
- Highly robust and reliable even for the most demanding applications or in harsh environments
- Flexibility to improve the continuity of the service of your applications
- User account management to enforce authorization
- Enhanced cybersecurity features built-in to restrict or disable port and services
- Threat intelligence to generate security related reports
- Secure boot and firmware upgrade
ATS480C21Y Standards
RoHS|REACH|Marine certified DNV|ABS|EAC|cULus|CE|UKCA|CCC|IEC/EN60947-4-1|UL 60947-4-2|IEC 60664-1|IEC 61000-4-3|IEC 61000-4-5|IEC 61000-4-11|EN/IEC 61131-2|IEC 60664-1|IEC 61000-4-4|EN/IEC 60947-4-2|IEC 60947-4-2|EN/IEC 60068-2-3|IEC 61000-4-12|IEC 60721-3-3|IP00SKU #2419620Part Number #ATS480C21YUNSPSC39121521UPC03606481089106
