Part Number # ATV320U06M2WS
SKU # 2452224
Image Disclaimers Message
ATV320U06M2WS

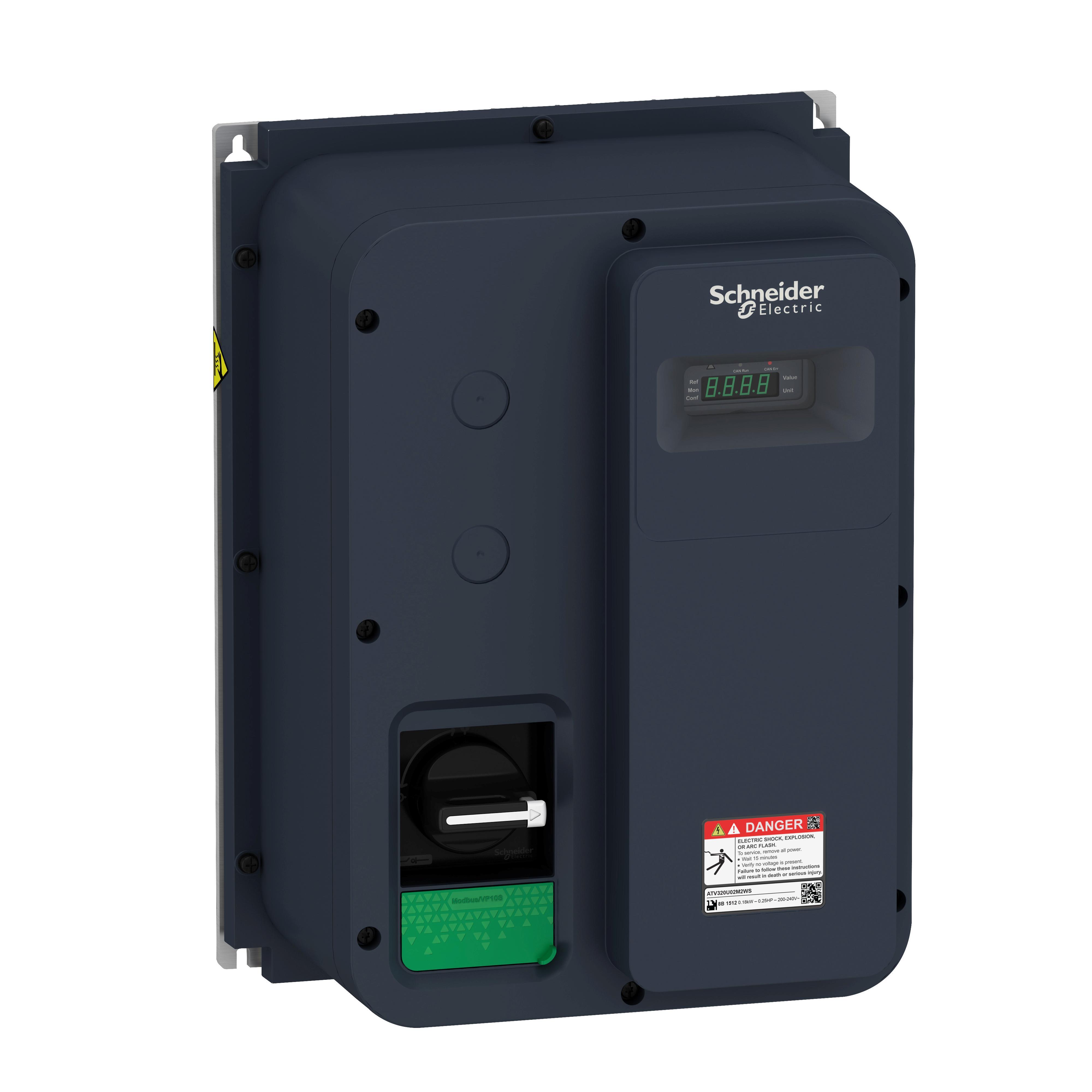

Schneider Electric ATV320U06M2WS
Part Number # ATV320U06M2WS
SKU # 2452224
$675.05 / Each
Schneider Electric ATV320U06M2WS Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | ATV320U06M2WS |
| SKU #: | 2452224 |
| Amperage Rating: | 3.7 A |
| Enclosure Type: | IP65 |
| Type: | Variable Speed Drive |
| Country of origin: | ID |
| Depth: | 7.17 in |
| Height: | 13.39 in |
| Mounting type: | Wall |
| Width: | 9.84 in |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 26111503 |
| UPC: | 03606489548582 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$675.05 / Each
Quantity:
- Schneider Electric ATV320U06M2WS, Variable Speed Drive, 200 to 240 V, 3.7 A, 9.84 in Width, 7.17 in Depth, 13.39 in Height, IP65 Enclosure, Wall Mounting
ATV320U06M2WS Application
Complex machinesATV320U06M2WS Includes
5 safety functions that help machines meet safety requirementsATV320U06M2WS Item Features
- Improved machine performance
- Extended machine availability
- Reduced total machine cost
- Advanced connectivity via Ethernet (Modbus TCP, Ethernet/IP, Profinet, EtherCAT) or serial (Modbus RTU, CANopen, Profibus DP, DeviceNet) based networks
- Reliable motor control and leading-edge performance for asynchronous and synchronous motors
- Proven functionality in harsh environments operating in ambient temperatures up to 60 deg C and class 3C3 coated printed circuit boards to protect against corrosion
- The Altivar 320 drive meets the needs of simple or advanced machines from 0.25 Hp to 20 Hp
- Modbus serialCANopen communication port protocol
- Class C2 EMC filter integrated emc filter
- With disconnect switch variant
- Communication module, CANopen communication module, EtherCAT communication module, Profibus DP V1 communication module, Profinet communication module, Ethernet Powerlink communication module, Ethernet/IP communication module, DeviceNet option card
- 7 discrete input number
- Positive logic (source)Negative logic (sink) discrete input logic
- 3 analogue input number
- AI1 voltage 0 to 10 V DC 30 kOhm 10 bitsAI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bitsAI3 current 0 to 20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits analogue input type
- 1 analogue output number
- Software-configurable current AQ1 0 to 20 mA 800 Ohm 10 bitsSoftware-configurable voltage AQ1 0 to 10 V DC 470 Ohm 10 bits analogue output type
- Configurable relay logic R1A 1 NO 100000 cyclesConfigurable relay logic R1B 1 NC 100000 cyclesConfigurable relay logic R1CConfigurable relay logic R2A 1 NO 100000 cyclesConfigurable relay logic R2C relay output type
- Slave CANopen method of access
- True 4 quadrant operation possible
ATV320U06M2WS Standards
IP65|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|CE|ATEX|NOM|GOST|EAC|RCM|KCSKU #2452224Part Number #ATV320U06M2WSUNSPSC26111503UPC03606489548582
