Part Number # ATV320U06N4B
SKU # 2340137
Image provided may only be a representation of
final product and may include optional equipment
Brand: Schneider Electric
ATV320U06N4B

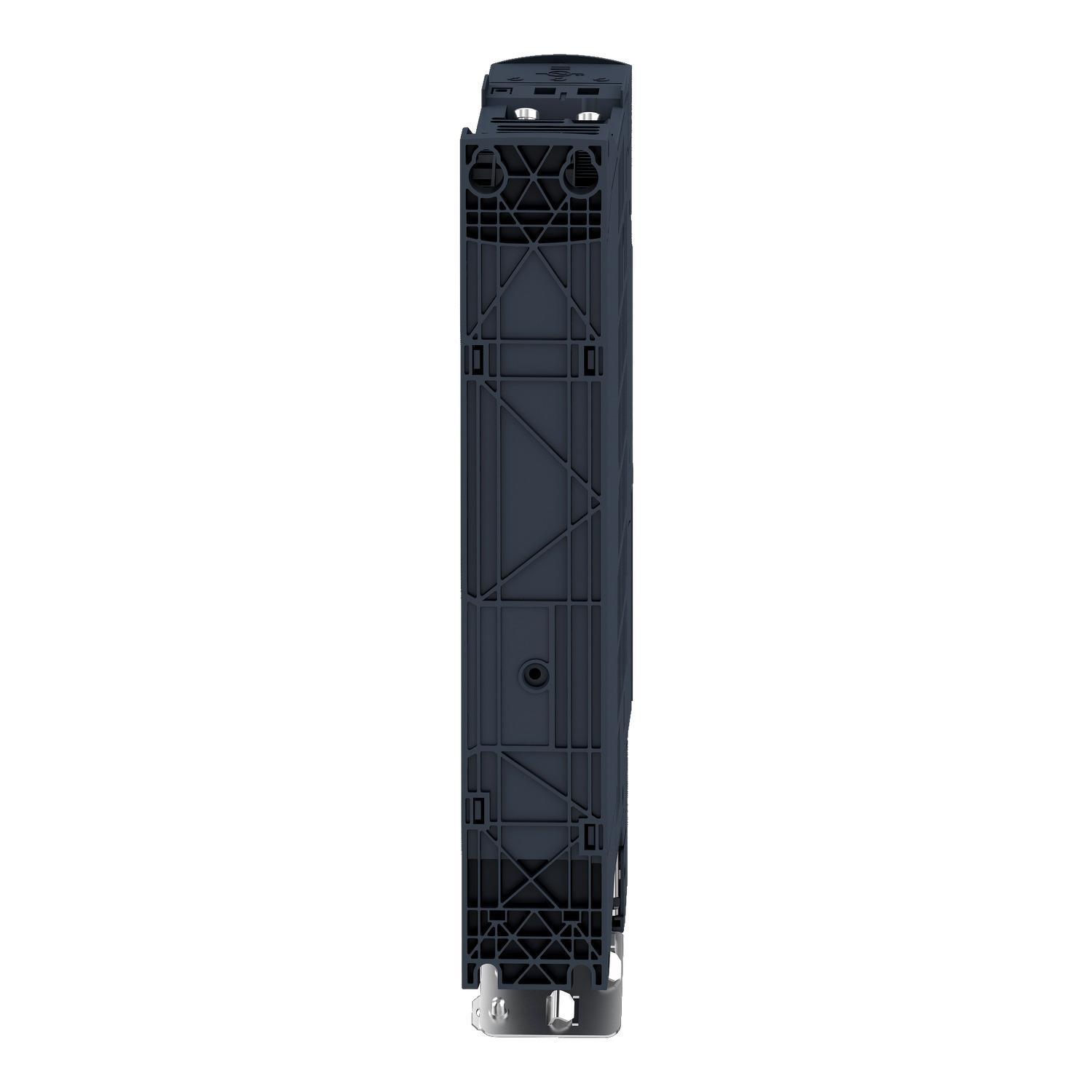

Schneider Electric ATV320U06N4B Ac Variable Speed Drive
Part Number # ATV320U06N4B
SKU # 2340137
$548.24 / Each
Schneider Electric ATV320U06N4B Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | ATV320U06N4B |
| SKU #: | 2340137 |
| Amperage Rating: | 2.2/2.8, 2.2/2.8 A |
| Enclosure Type: | IP20 |
| Horsepower: | 3/4, 3/4 hp |
| Series: | Altivar 320, Altivar™ 320 |
| Type: | 3-Phase Book |
| Country of origin: | ID, US |
| Depth: | 9.65, 9.65 in |
| Height: | 12.8, 12.8 in |
| Width: | 1.77, 1.77 in |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122001 |
| UPC: | 00785901862604 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$548.24 / Each
Quantity:
Schneider Electric ATV320U06N4B Ac Variable Speed Drive
Brand: Schneider Electric
Part Number: ATV320U06N4B
Schneider Electric Square D AC Variable Speed Drive, 3-Phase Book, Series: Altivar 320, 400/480 VAC, 2.2/2.8 A, 3/4 hp, 1.77 in Width, 9.65 in Depth, 12.8 in Height, IP20 Enclosure
Additional Description: SQD -ATV320U06N4B ATV320 BOOK 0.55KW - 3PH - 380 - 500V -0.75HP-400/480V 3PH
Catalog Description: variable speed drive, Altivar Machine ATV320, 0.55kW, 380 to 500V, 3 phases, book
ATV320U06N4B Application
Material Handling, Packaging, Textiles, Hoisting, Mechanical Actuators, Material Working, Conveyors, Carton Packers, Gantry Cranes, Woodworking, Metal Processing, Fans, Complex Machine, Asynchronous and Synchronous Motors ApplicationsATV320U06N4B Item Features
- MachineStruxure integration in SoMachine
- Operation in velocity mode and torque control (with current limitation)
- Customizable and flexible application functions with ATV logic (up to 50 Function blocks)
- Embedded safety functions dedicated to targeted application segments
- 2 8 A at 380 VAC, 2 2 A at 500 VAC heavy duty amperage rating
- This Schneider Electric Altivar 320 variable speed drive / inverter can feed 3-phase synchronous and asynchronous power motors with a rated power up to 0.55 kilowatts / 0.75 horsepower and a rated voltage from 380 to 500Vac
- https://www.youtube.com/watch?v=JxS1Q0Zz-mA&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn
ATV320U06N4B Standards
REACH Compliant|Green Premium|WEEE Compliant|EN/IEC 61800-3|EN/IEC 61800-3 Environment 2 Category C3|EN/IEC 61800-5-1|IEC 61000-3-12|IEC 60721-3|IEC 61508|IEC 13849-1|CE Certified|ATEX Compliant|UL 508|CSA 22.2|NOM Certified|EAC Certified|RCM Certified|KC Certified|UL Listed|CSA Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2340137Part Number #ATV320U06N4BUNSPSC39122001UPC00785901862604
