Part Number # ATV320U30M3C
SKU # 2333596
Image Disclaimers Message
ATV320U30M3C

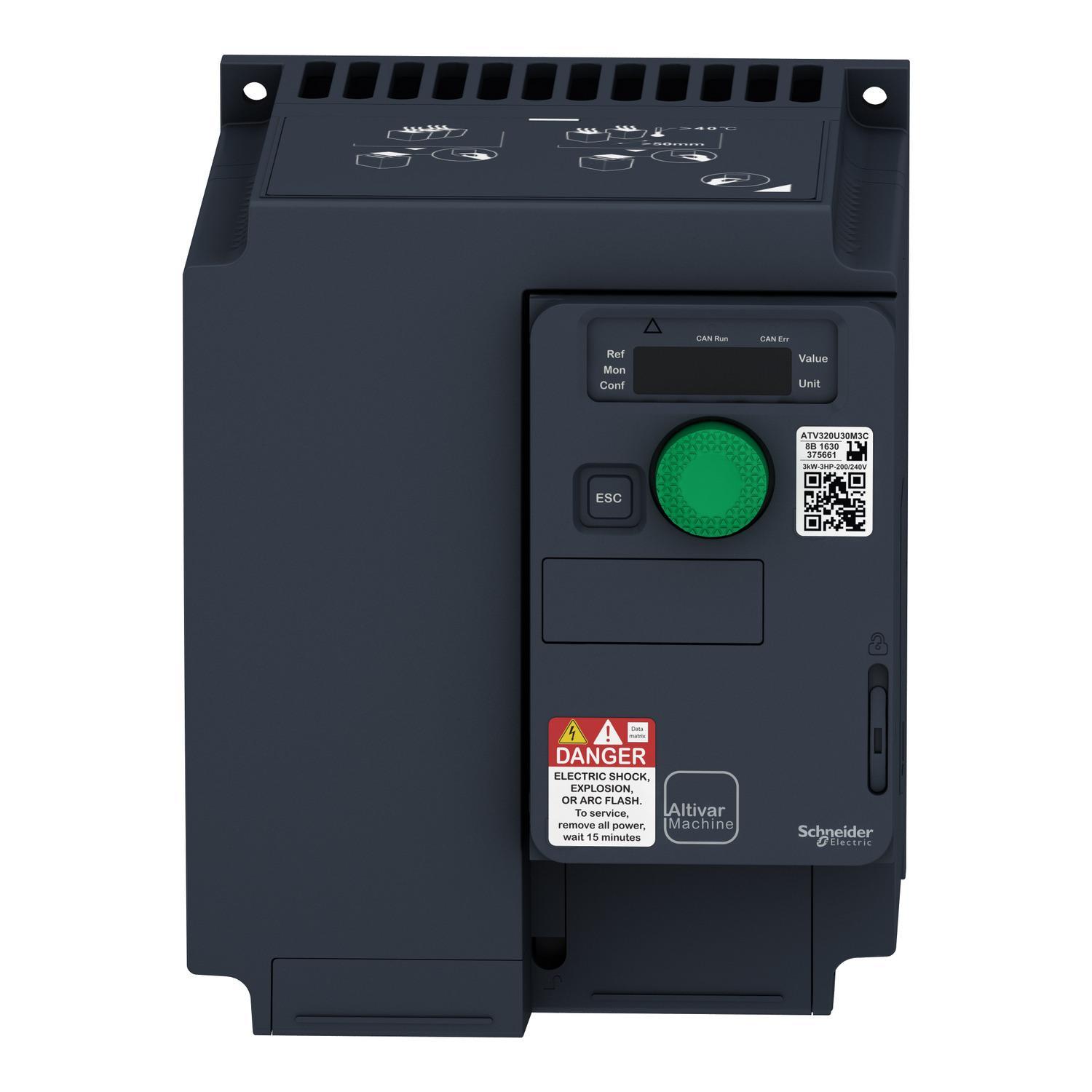

Schneider Electric ATV320U30M3C Ac Variable Speed Drive
Part Number # ATV320U30M3C
SKU # 2333596
$779.30 / Each
Schneider Electric ATV320U30M3C Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | ATV320U30M3C |
| SKU #: | 2333596 |
| Amperage Rating: | 15.9/19, 15.9/19 A |
| Enclosure Type: | IP20 |
| Horsepower: | 3, 3 hp |
| Series: | Altivar 320, Altivar™ 320 |
| Type: | 3-Phase Compact |
| Country of origin: | ID, US |
| Depth: | 6.22, 6.22 in |
| Height: | 7.24, 7.24 in |
| Width: | 5.51, 5.51 in |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122001 |
| UPC: | 00785901529422 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$779.30 / Each
Quantity:
Schneider Electric ATV320U30M3C Ac Variable Speed Drive
Brand: Schneider Electric
Part Number: ATV320U30M3C
Schneider Electric Square D AC Variable Speed Drive, 3-Phase Compact, Series: Altivar 320, 200/240 VAC, 15.9/19 A, 3 hp, 5.51 in Width, 6.22 in Depth, 7.24 in Height, IP20 Enclosure
Additional Description: SQD -ATV320U30M3C ATV320 3KW 200V 3PH COMPACT CONTROL VARI -3KW-200/240V 3PH
Catalog Description: variable speed drive, Altivar Machine ATV320, 3kW, 200 to 240V, 3 phases, compact
ATV320U30M3C Application
Material Handling, Packaging, Textiles, Hoisting, Mechanical Actuators, Material Working, Conveyors, Carton Packers, Gantry Cranes, Woodworking, Metal Processing, Fans, Complex Machine, Asynchronous and Synchronous Motors ApplicationsATV320U30M3C Item Features
- Control of asynchronous and synchronous motors; including IE2 loop, IE3 and PM motors in open
- integration in SoMachine
- Operation in velocity mode and torque control (with current limitation)
- Customizable and flexible application functions with ATV logic (up to 50 Function blocks)
- Numerous application functions for targeted application segments
- Embedded safety functions dedicated to targeted application segments
- 3 kW for heavy duty horsepower rating
- 19 A at 200 VAC, 15.9 A at 240 VAC for heavy duty amperage rating
- Without EMC filter
- https://www.youtube.com/watch?v=JxS1Q0Zz-mA&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn
ATV320U30M3C Standards
REACH Compliant|Green Premium|WEEE Compliant|EN/IEC 61800-3|EN/IEC 61800-3 Environment 2 Category C3|EN/IEC 61800-5-1|IEC 61000-3-12|IEC 60721-3|IEC 61508|IEC 13849-1|CE Certified|ATEX Compliant|UL 508|CSA 22.2|NOM Certified|EAC Certified|RCM Certified|KC Certified|UL Listed|CSA Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2333596Part Number #ATV320U30M3CUNSPSC39122001UPC00785901529422
