Part Number # ATV630D55N4
SKU # 2312359
Image Disclaimers Message
ATV630D55N4

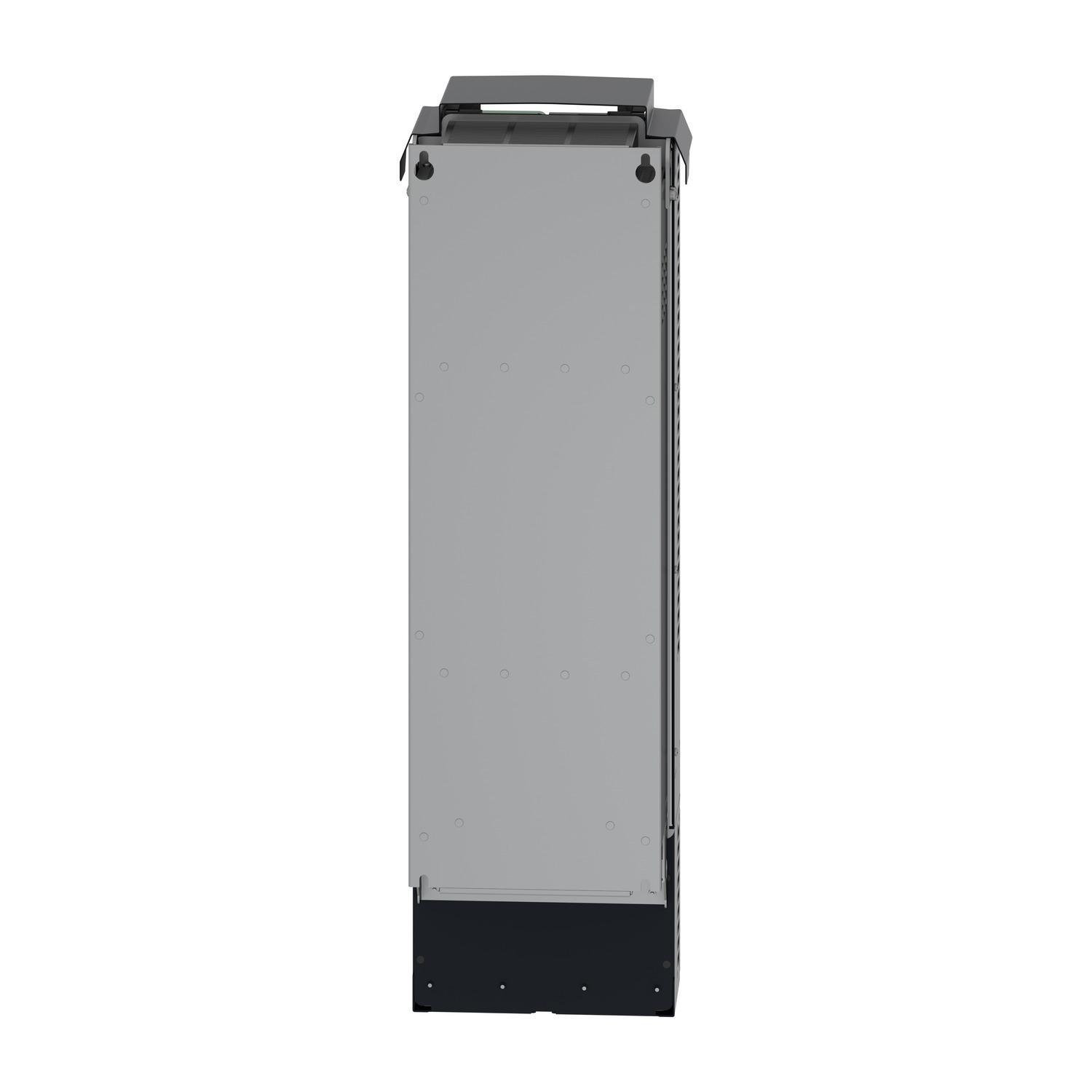

Schneider Electric ATV630D55N4 Altivar 630 Ac Variable Speed Drive
Part Number # ATV630D55N4
SKU # 2312359
$11914.88 / Each
Schneider Electric ATV630D55N4 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | ATV630D55N4 |
| SKU #: | 2312359 |
| Amperage Rating: | 71.8/81.4/84.2/97.2, 71.8/81.4/84.2/97.2 A |
| Display Type: | LED, Remote Graphic |
| Enclosure Type: | NEMA 1/IP00/IP20/IP21 |
| Horsepower: | 60 hp, 75 hp |
| Series: | Altivar 630, Altivar® 630, Altivar™ Process 630 |
| Type: | 3-Phase Type 1 Standard |
| Country of origin: | IN |
| Depth: | 12.72, 12.72 in |
| Height: | 36.3, 36.3 in |
| Mounting type: | Wall |
| Width: | 11.42, 11.42 in |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122001 |
| UPC: | 00785901976400 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$11914.88 / Each
Quantity:
- Schneider Electric Altivar 630 Square D AC Variable Speed Drive, 3-Phase Type 1 Standard, 380 to 480 V AC, 71.8/81.4/84.2/97.2 A, 60 hp, 75 hp, 11.42 in Width, 12.72 in Depth, 36.3 in Height, NEMA 1/IP00/IP20/IP21 Enclosure, LED Display, Wall Mounting
ATV630D55N4 Application
Waste Water Treatment Plants, Oil, Gas, Mining, Minerals, Metals, Food, Beverage, Process, Utilities, Asynchronous and Synchronous Motors ApplicationsATV630D55N4 Item Features
- Accurate measurement for monitoring system energy consumption (deviation <5%)
- Installation energy drift detection
- Embedded Ethernet with direct access to system configuration and monitoring
- Integration of actual pump curves to optimize the system operating point
- Optimized pump monitoring based on actual operating point
- Sensorless estimated flow rate
- Measurements expressed in working units
- Limitation of overvoltage at the motor terminals
- Contextual access to technical documentation through dynamic QR code
- Continuous and historical real time measurements with customizable dashboards
- Predictive and preventive maintenance tracking functions (temperatures with PT100/1000 probe, fan monitoring)
- 75 hp at normal duty, 60 hp at heavy duty horsepower rating
- 97.2 A at 380 VAC normal duty, 84.2 A at 480 VAC normal duty, 81.4 A at 380 VAC heavy duty, 71.8 A at 480 VAC heavy duty amperage rating
ATV630D55N4 Standards
ATEX INERIS|ATEX Zone 2/22|CE Certified|CSA Certified|DNV-GL Approved|EN/IEC 60068-2-6/60068-2-27/61800-3 2, 4, 8, 12/61000-4-6/60068-2-6-1/60721-3-3/61000-4-5|EN/IEC 61800-3|EN/IEC 61800-3 Environment 1 Category C2|EN/IEC 61800-3 Environment 2 Category C3|EN/IEC 61800-5-1|Green Premium|IEC 13849-1|IEC 60721-3|IEC 61000-3-12|IEC 61508|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|REACH Compliant|RoHS Compliant|SEMI F47-0706|TUV Certified|UL 508C|UL Listed|WEEE CompliantSKU #2312359Part Number #ATV630D55N4UNSPSC39122001UPC00785901976400
