Part Number # ATV930D75N4
SKU # 2327146
Image provided may only be a representation of
final product and may include optional equipment
ATV930D75N4

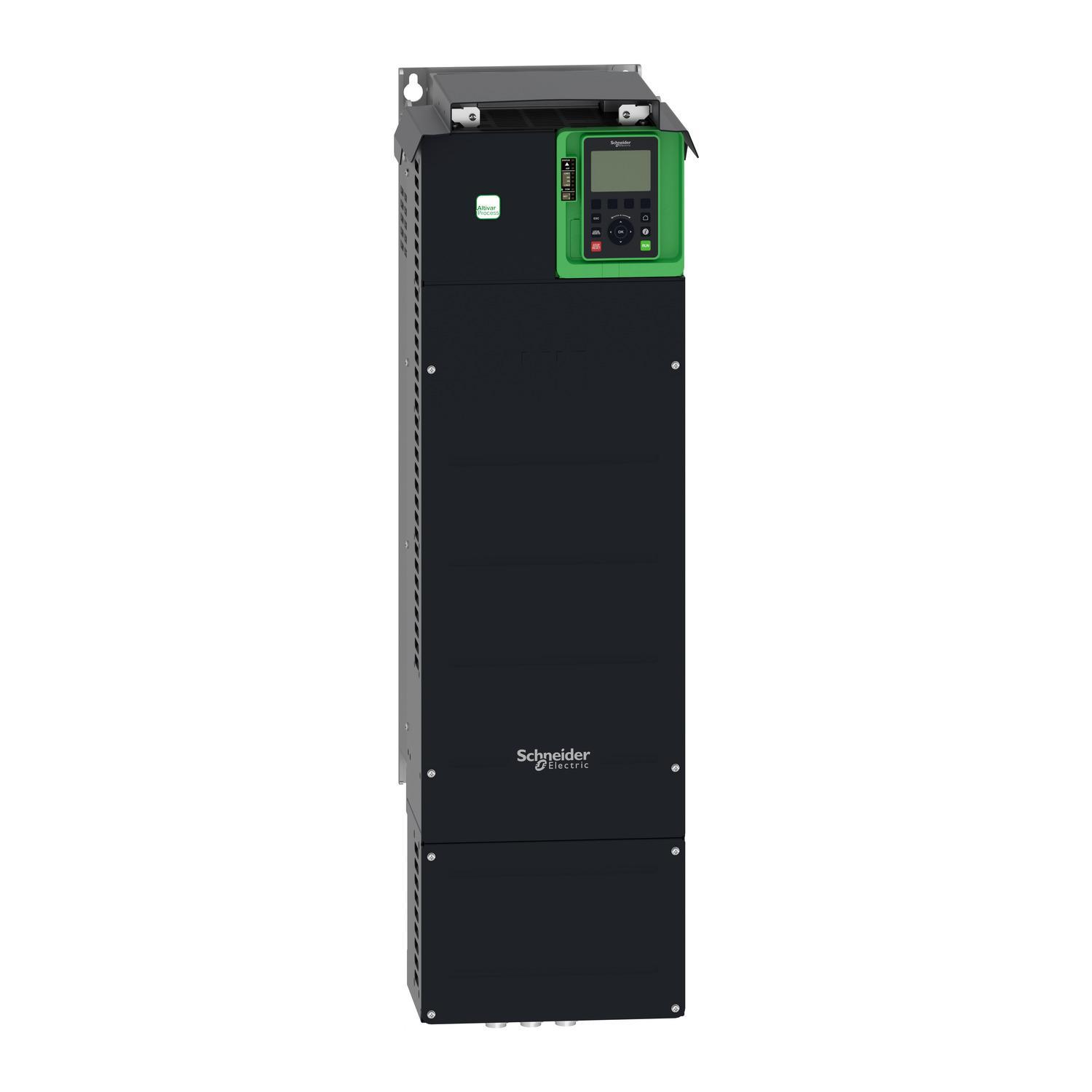

Schneider Electric ATV930D75N4 Altivar Process 930 Variable Speed Drive
Part Number # ATV930D75N4
SKU # 2327146
Schneider Electric ATV930D75N4 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | ATV930D75N4 |
| SKU #: | 2327146 |
| Amperage Rating: | 106 A Heavy Duty/145 A Normal Duty |
| Display Type: | Red LED |
| Enclosure Type: | IP21 |
| Horsepower: | 100, 100 hp |
| Series: | ATV900 |
| Type: | 3-Phase |
| Country of origin: | IN, US |
| Depth: | 325, 325 mm |
| Height: | 922, 922 mm |
| Mounting type: | Wall |
| Width: | 290, 290 mm |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122001 |
| UPC: | 00785901090465 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric ATV930D75N4 Altivar Process 930 Variable Speed Drive
Brand: Schneider Electric
Part Number: ATV930D75N4
Schneider Electric Square D Altivar Process 930 Variable Speed Drive, 3-Phase, Series: ATV900, 400/480 V, 106 A Heavy Duty/145 A Normal Duty, 100 hp, 290 mm Width, 325 mm Depth, 922 mm Height, IP21 Enclosure, Red LED Display, Wall Mounting
Additional Description: SQD -ATV930D75N4 ATV930 IP21 75KW 400V-480V spee 100HP400V/480VWITH BC
Catalog Description: Variable Speed Drive, Altivar Process ATV900, ATV930, 75kW, 400 to 480V, with braking unit, IP21
ATV930D75N4 Application
Industrial Application, Synchronous Motor and Asynchronous MotorATV930D75N4 Standards
IEC 60068-2-27|IEC 61000-3-12|IEC 61000-4-2|IEC 61000-4-3|IEC 61000-4-4|IEC 61000-4-5|IEC 61000-4-6|EN/IEC 60721-3-3|EN/IEC 60721-3-3|2 EN/IEC 61800-5-1|IEC 60068-2-3|EN/IEC 61800-3|EN/IEC 61800-3|EN/IEC 61800-3|EN/IEC 61800-5-1|IEC 61000-3-12|IEC 60721-3|IEC 61508|IEC 13849-1|NOM 117|REACH|TUV|UL Type 1 UL 508C|REACH Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65PROP65s.ca.govSKU #2327146Part Number #ATV930D75N4UNSPSC39122001UPC00785901090465
