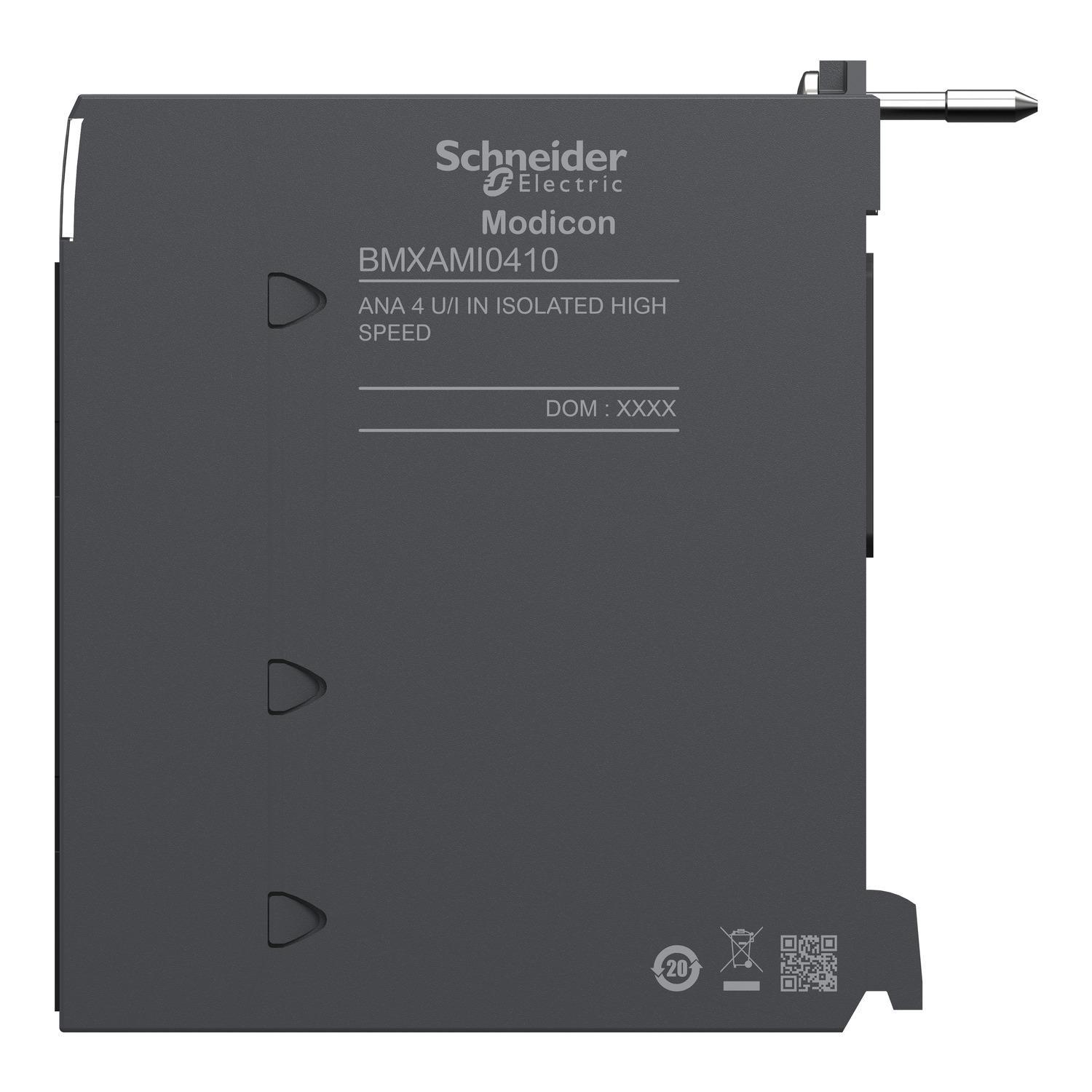

Schneider Electric BMXAMI0410 Modicon M340 Analog Input Module
Image Disclaimers Message
Schneider Electric BMXAMI0410 Modicon M340 Analog Input Module
Schneider Electric BMXAMI0410 Modicon M340 Analog Input Module
Part #:BMXAMI0410
SKU #: 2144513
Key Features
Part #:BMXAMI0410
SKU #: 2144513
Brand: Schneider Electric
Amperage Rating: 0 to 20 mA, 150/45
Series: X80
Temperature Rating (Degrees F): 0 to 60, 0 to 60 deg C
Type: 20-Way 1-Connector Isolated High Speed, Isolated High Speed
Country of origin: FR
- (1) connector 20 ways electrical connection
- Isolated input output isolation
- High level input
- 10 MOhm input impedance
- 250 Ohm internal conversion resistor
- 0.1% to 15 ppm/deg C precision of internal conversion resistor
- First order digital filtering
- 1 ms +1 ms x number of channel used fast read cycle time
- 5 ms for 4 channel nominal read cycle time
- Internal recalibration
- 120 dB common mode between channel
- +/-10000 by default, +/-32000 in user scale digital value format
- 300 VDC between channel, 1400 VDC between channel and ground, 1400 VDC between channel and bus isolation voltage
- 10 to 95% without condensation relative humidity
- IP20 degree of protection conforming to IEC 60529
- TC protective treatment
Schneider Electric BMXAMI0410 Modicon M340 Analog Input Module
Schneider Electric Modicon M340 Square D Analog Input Module, 20-Way 1-Connector Isolated High Speed, Series: X80, 4 Inputs, 24 bit Conversion Rate, 16 bit Resolution, 0 to 20 mA, 0 to 60 deg C
Additional Description: SQD -BMXAMI0410 ANA 4 U/I IN ISOLATED HIGH SPEED SPEED MODULE
Catalog Description: analog isolated high level input module, Modicon X80, 4 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
