Part Number # BMXAMI0410H
SKU # 2214242
Image provided may only be a representation of
final product and may include optional equipment
BMXAMI0410H

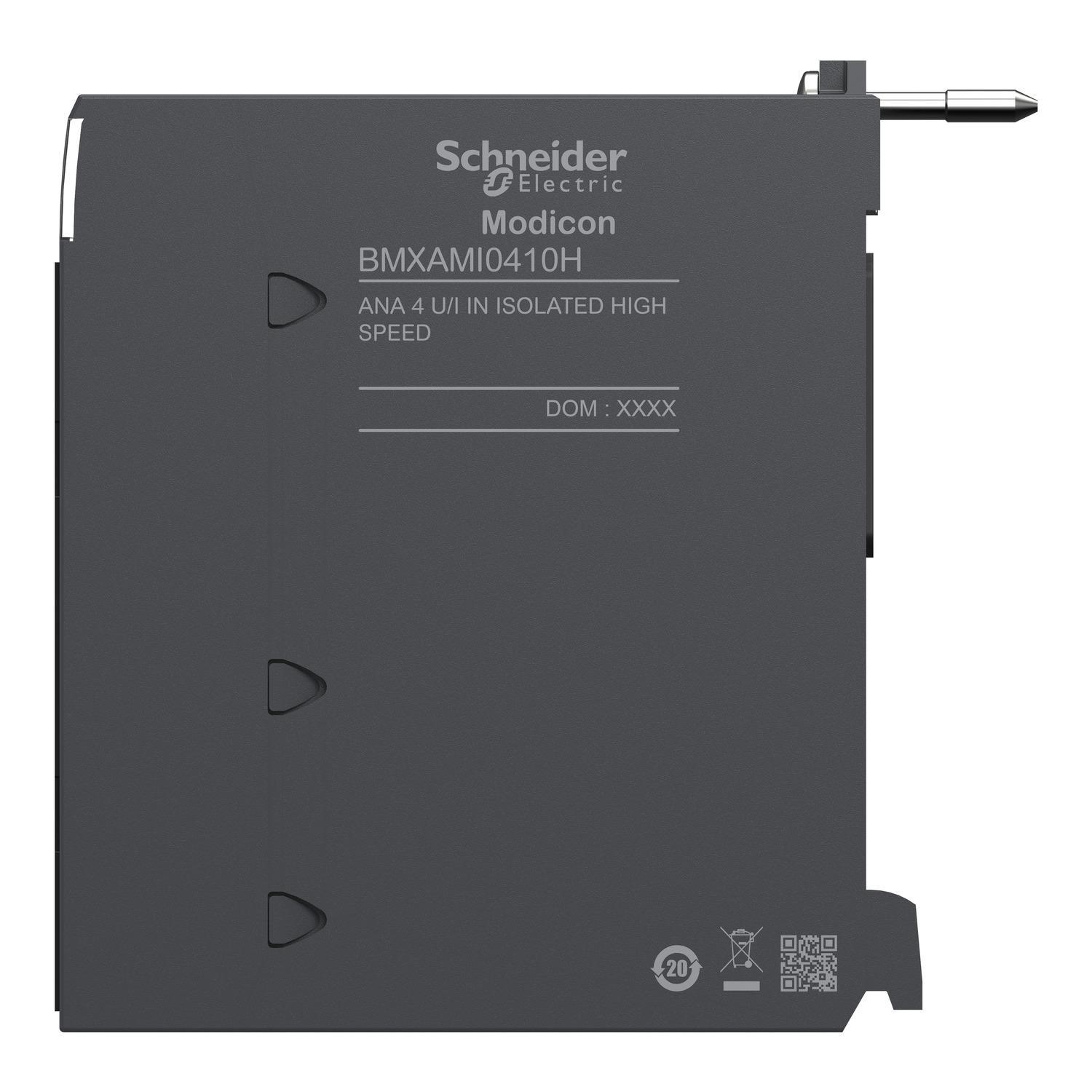

Schneider Electric BMXAMI0410H Modicon X80 Analog Input Module
Part Number # BMXAMI0410H
SKU # 2214242
Schneider Electric BMXAMI0410H Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | BMXAMI0410H |
| SKU #: | 2214242 |
| Amperage Rating: | 0 to 20/4 to 20, 0 to 20/4 to 20 mA |
| Dimensions: | 3.93 in H x 6.29 in D |
| Signal Range: | +/- 10 V, 0 to 20/4 to 20 mA |
| Temperature Rating (Degrees F): | -25 to 70, -25 to 70 deg C |
| Terminal Type: | Cage/Screw/Spring |
| Country of origin: | US |
| Number of inputs: | 4 |
| Resolution: | 16, 16 bit |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 32151705 |
| UPC: | 00785901687276 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric BMXAMI0410H Modicon X80 Analog Input Module
Brand: Schneider Electric
Part Number: BMXAMI0410H
Schneider Electric Modicon X80 Analog Input Module, 4 Inputs, +/- 10 V, 0 to 20/4 to 20 mA Signal, 5 ms Conversion Rate, 16 bit Resolution, 24 VDC, 0 to 20/4 to 20 mA, 0.82 to 1.3 W Power, Cage/Screw/Spring Terminal, -25 to 70 deg C, 3.93 in H x 6.29 in D Dimensions
Additional Description: SQD -BMXAMI0410H (N) H ANA 4 U/I HL IN ISOLATED NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Analog isolated high level input module, Modicon X80, 4 I, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment
BMXAMI0410H Application
Water Wastewater, Mining, Minerals, Metals, Food and Beverage, Oil and Gas, OEM Process, Energy, Automotive, Infrastructure, Building and Severe Environment ApplicationsBMXAMI0410H Includes
Backplane, All-in-Rack Modules, Power Supply, Ethernet Rio Module Drop Head, All I/O Modules, Communication Modules (Except Ethernet) and Expert ModulesBMXAMI0410H Item Features
- The X80 family incorporates the compatible modules common for Quantum Ethernet I/O drops and M340 PLC, all with a M340 form factor
BMXAMI0410H Standards
RoHS Compliant|UL Listed|CSA Certified|IEC-Ex Certified|CE Certified|Merchant Navy Certified|ATEX Compliant|RCM Certified|EAC Certified|EN 61010-2-201|EN 61131-2|EN 61000-6-2|EN 61000-6-4|REACH Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govBMXAMI0410H Warranty
18 MonthsSKU #2214242Part Number #BMXAMI0410HUNSPSC32151705UPC00785901687276
