Part Number # BMXCPS3540T
SKU # 2310251
BMXCPS3540T

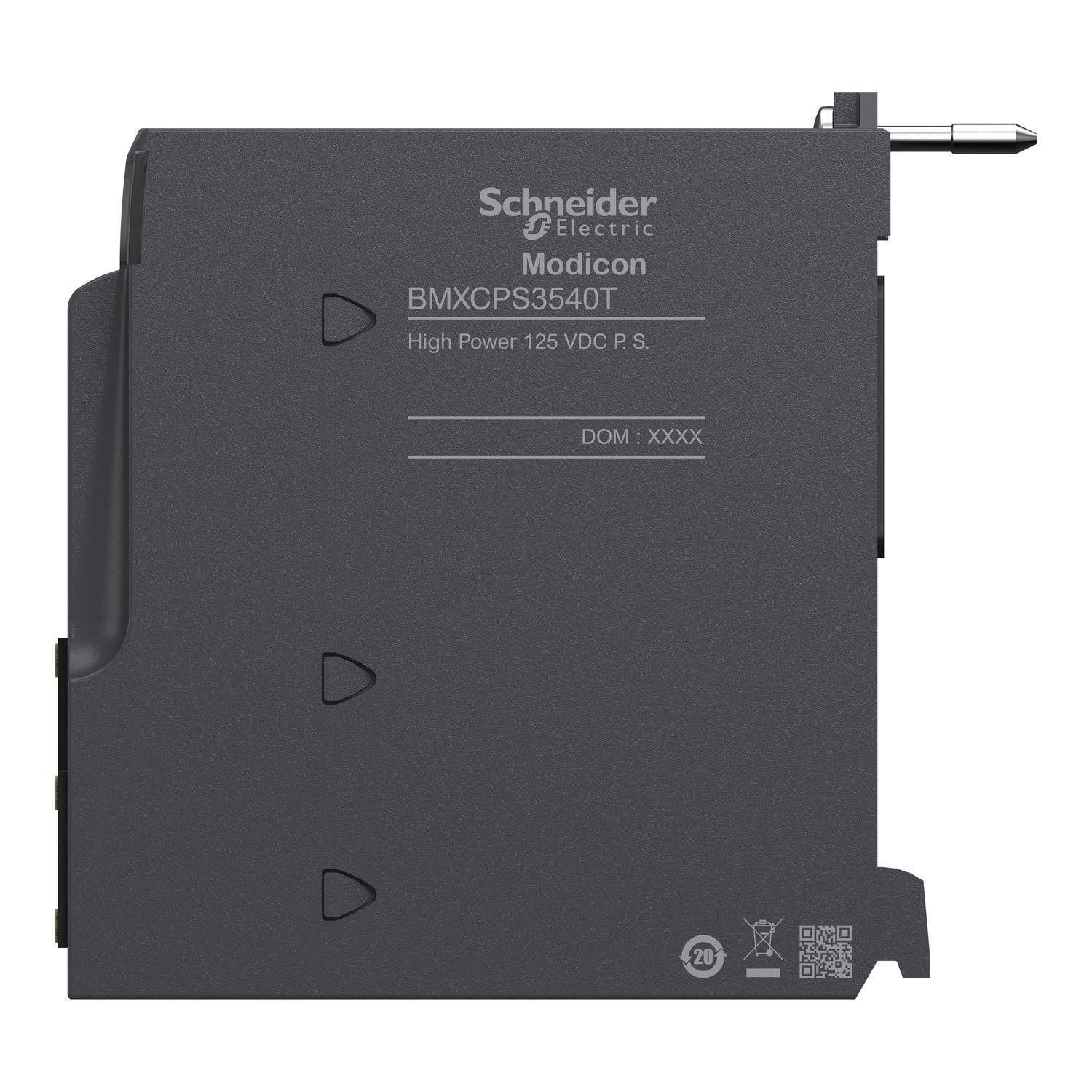

Schneider Electric BMXCPS3540T Modicon X80 Power Supply Module
Part Number # BMXCPS3540T
SKU # 2310251
Schneider Electric BMXCPS3540T Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | BMXCPS3540T |
| SKU #: | 2310251 |
| Input Voltage: | 125, 125 V AC, 125 VAC |
| Power Dissipation: | <=8.5, <=8.5 W |
| Specifications: | 30 A at 125 V AC Inrush Current, (1) Green LED Signaling, 30 A at 125 VAC Inrush Current, (1) Green LED Signaling |
| Temperature Rating (Degrees F): | -25 to 70, -25 to 70 deg C |
| Country of origin: | ID |
| Input current: | 350, 350 mA |
| Output current: | 1.3/4.5, 1.3/4.5 A |
| Output voltage: | 24, 24 V DC, 24 VDC |
| Power consumption: | 31.2, 31.2 W |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 32151706 |
| UPC: | 00785901675853 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric BMXCPS3540T Modicon X80 Power Supply Module
Brand: Schneider Electric
Part Number: BMXCPS3540T
Schneider Electric Modicon X80 Power Supply Module, 125 VAC Input, 24 VDC Output, 350 mA Input Current, 1.3/4.5 A Output Current, 31.2 W Power Consumption, <=8.5 W Power Dissipation, Specifications: 30 A at 125 VAC Inrush Current, (1) Green LED Signaling, -25 to 70 deg C
Additional Description: SQD -BMXCPS3540T HIGH POWER 125 VDC P. S.
Catalog Description: power supply module, Modicon X80, 125V DC, for extended temperature
BMXCPS3540T Application
Water Wastewater, Mining, Minerals, Metals, Food and Beverage, Oil and Gas, OEM Process, Energy, Automotive, Infrastructure and Building ApplicationsBMXCPS3540T Item Features
- Innovative I/O
- Robust
- Compact
- High quality
- Hot swap
- Wide selection of modules - digital I/O, analog I/O, expert and communication
- Long term offer (new)
BMXCPS3540T Standards
RoHS Compliant|REACH Compliant|ATEX Compliant|CE Certified|CSA Certified|UL Listed|RCM Certified|IEC-Ex Certified|Merchant Navy Certified|EAC Certified|EN 61000-6-2|EN 61000-6-4|EN 61131-2|EN 61010-2-201|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2310251Part Number #BMXCPS3540TUNSPSC32151706UPC00785901675853
Image provided may only be a representation of final product and may include optional equipment
