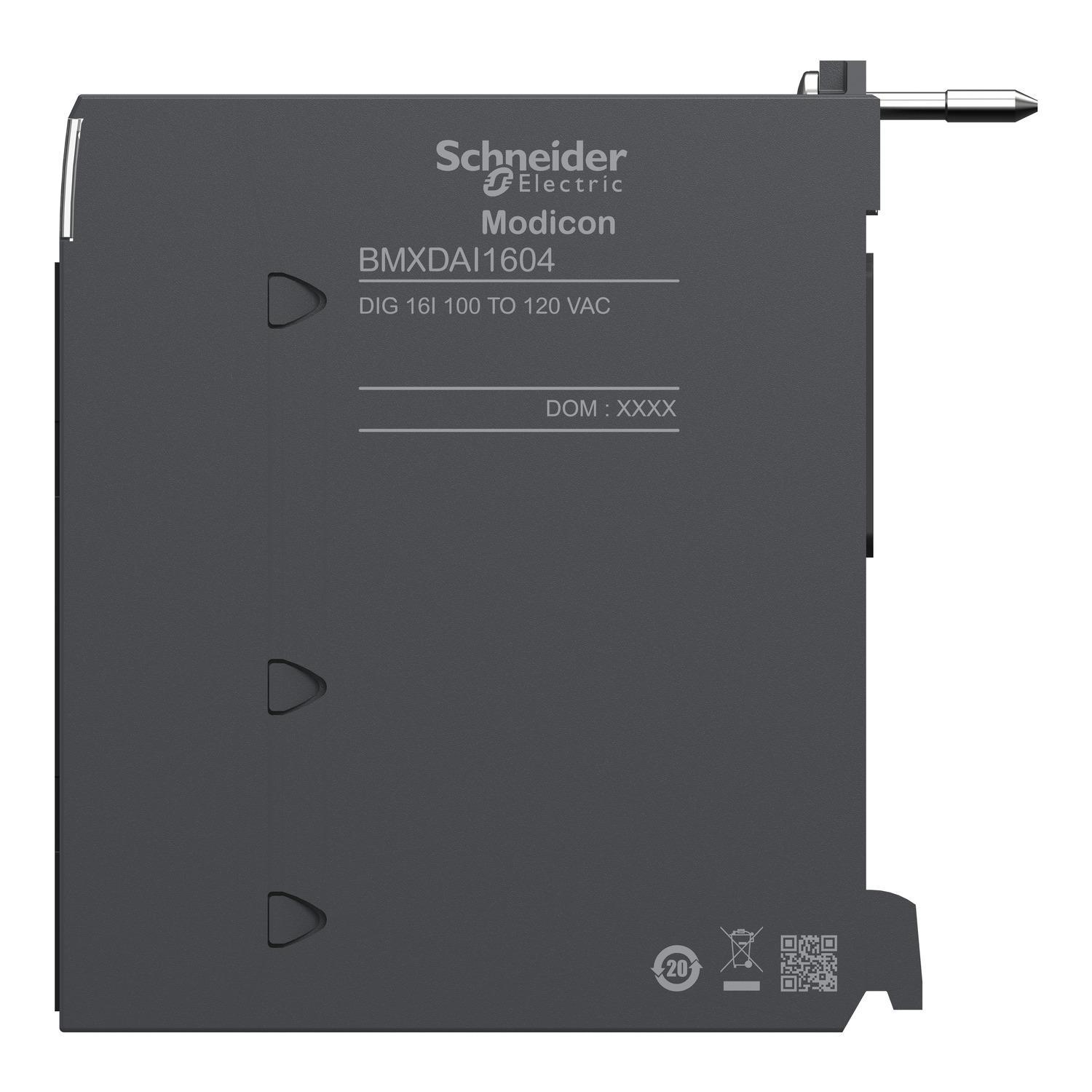

Schneider Electric BMXDAI1604 Modicon M340 Discrete Input Module
Image Disclaimers Message
Schneider Electric BMXDAI1604 Modicon M340 Discrete Input Module
Schneider Electric BMXDAI1604 Modicon M340 Discrete Input Module
Part #:BMXDAI1604
SKU #: 2144508
$462.18/EA
Key Features
Part #:BMXDAI1604
SKU #: 2144508
Brand: Schneider Electric
Amperage Rating: 5, 5 mA
Power Rating: 3.8, 3.8 W
Temperature Rating (Degrees F): 0 to 60, 0 to 60 deg C
Voltage Rating: 120, 120 VAC
Country of origin: FR
$462.18/EA
Call For Availability
- 20-way connector electrical connection
- Capacitive input
- With two-wire/three-wire proximity sensors conforming to IEC 60947-5-2 input compatibility
- 50/60 Hz frequency rating
- 47 to 63 Hz network frequency
- 13000 Ohm input impedance
- >10 MOhm at 500 VDC insulation-resistance
- <=3.8 W power dissipation
- 10 ms AC activation filtering time
- 20 ms AC deactivation filtering time
- 90 mA at 3.3 VDC typical current consumption
- (1) external fuse per group of channel 0.5 A fast blow protection
- 1504958 H MTBF reliability
- <40 VDC sensor fault, >82 VDC sensor OK voltage detection threshold
- IP20 deg of protection
- 1500 VAC at 50/60 Hz 1 min, primary/secondary dielectric strength
- 10 to 95% without condensation relative humidity
- TC protective treatment
- 1 LED green module operating (RUN)/1 LED per channel green channel diagnostic/1 LED red module I/O/1 LED red module error (ERR)
Specifications
Brand: Schneider Electric
Amperage Rating: 5, 5 mA
Power Rating: 3.8, 3.8 W
Temperature Rating (Degrees F): 0 to 60, 0 to 60 deg C
Voltage Rating: 120, 120 VAC
Country of origin: FR
Number of inputs: 16
Number of outputs: 16
Manufacturer Name: Schneider Electric
UNSPSC: 32151706
UPC: 00785901607595
Item FeaturesFor Modicon X80 modules applications
Item Features
Item FeaturesCE Certified|CSA Certified|EAC Certified|EN 61000-6-2|EN 61000-6-4|EN 61010-2-201|EN 61131-2|EN 61131-2|Merchant Navy Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|RCM Certified|REACH Compliant|RoHS Compliant|UL Listed
