CA2SK11T7

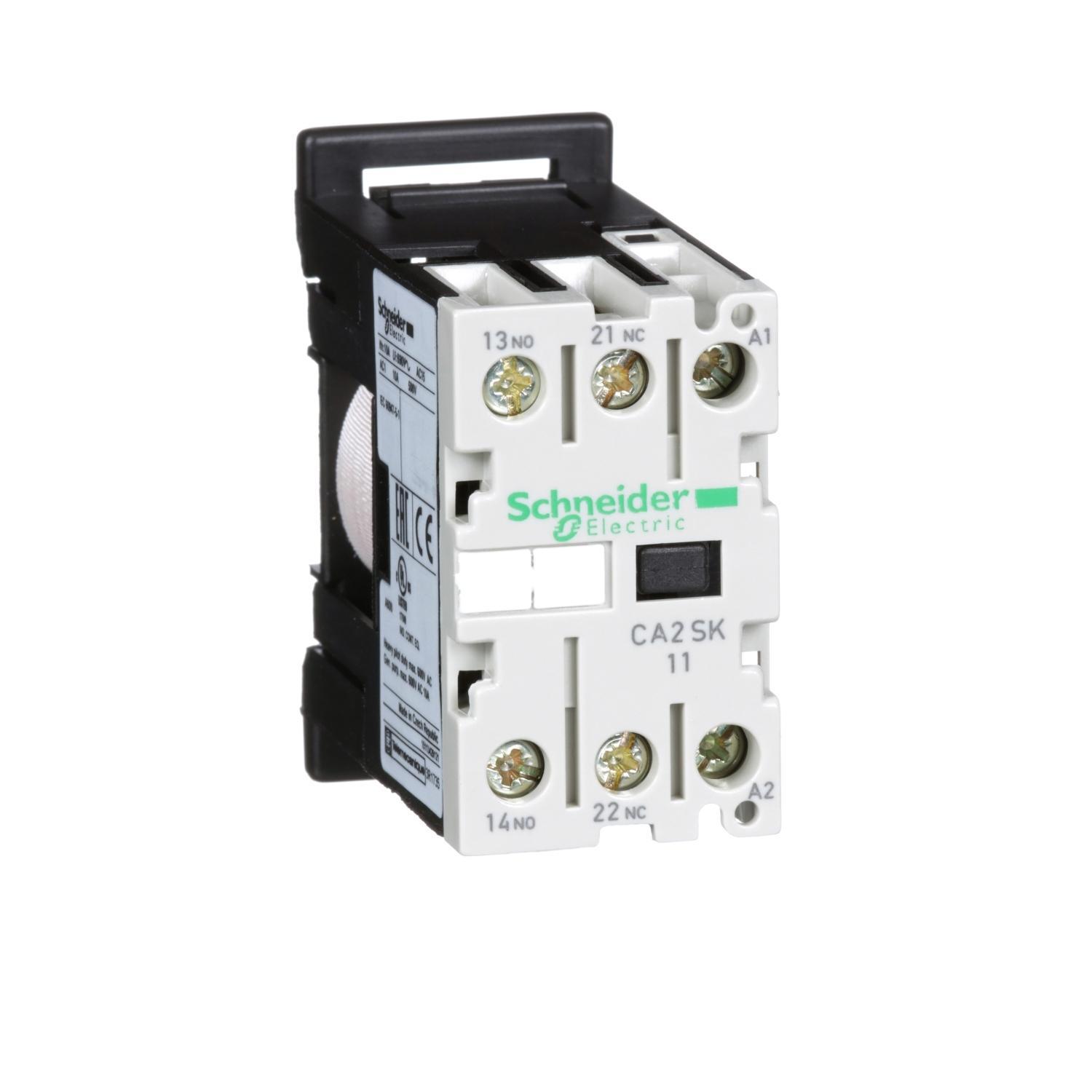

Schneider Electric CA2SK11T7 Iec Control Relay
Part Number # CA2SK11T7
SKU # 2247193
$58.00 / Each
Typical price:$58.73 / Each
Schneider Electric CA2SK11T7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | CA2SK11T7 |
| SKU #: | 2247193 |
| Amperage Rating: | 10, 10 A |
| Coil Voltage: | 480, 480 VAC |
| Contact Form: | 1NC-1NO, 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Dimensions: | 2.2 in H x 1.06 in W x 2.19 in D |
| Enclosure Type: | IP2X |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 2 |
| Series: | TeSys SK, TeSys™ SK |
| Temperature Rating (Degrees F): | -20 to 50, -20 to 50 deg C |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Country of origin: | CZ |
| Mounting type: | Plate/Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122331 |
| UPC: | 00785901744160 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$58.00 / Each
Typical price:$58.73 / Each
Quantity:
- Schneider Electric Square D IEC Control Relay, Series: TeSys SK, 10 A, 4.2/16 VA Power, 50/60 Hz Frequency, 480 VAC Coil, 1NO-1NC 1 Form A/1 Form B Contact Form, 2 Pole, Plate/Rail Mounting, Screw Clamp Terminal, IP2X Enclosure, -20 to 50 deg C, 2.2 in H x 1.06 in W x 2.19 in D Dimensions
CA2SK11T7 Application
For multi-pole switching applications at voltages up to 600 and control circuit applicationsCA2SK11T7 Item Features
- 16 VA inrush and 4.2 VA hold-in power rating
CA2SK11T7 Standards
RoHS Compliant|REACH Compliant|UL File No. E148.39|CCN NKCR|CSA File No. LR12721|Class 3211-03|SEMKO Certified|SEV Certified|DEMKO Certified|BS 5424|VDE 0660|NF C 63-110|IEC 60947|NF C 63-110|cULus Listed|WEEE Compliant|ECCN: EAR99|PROP65SKU #2247193Part Number #CA2SK11T7UNSPSC39122331UPC00785901744160
