Schneider Electric CA2SK20G7 Tesys Control Relay
Part Number # CA2SK20G7
SKU # 36297
CA2SK20G7

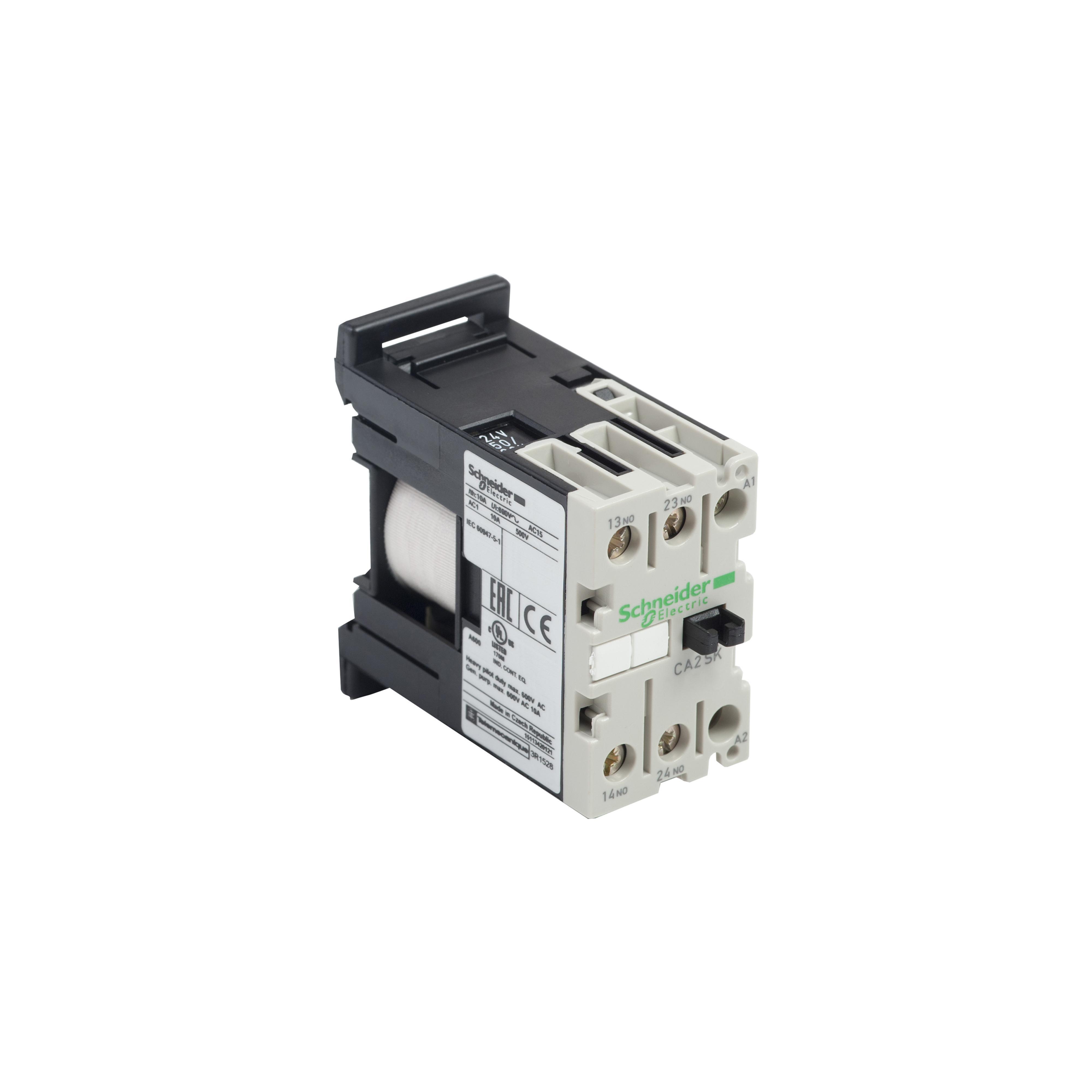

Schneider Electric CA2SK20G7 Tesys Control Relay
Part Number # CA2SK20G7
SKU # 36297
$58.73 / Each
Schneider Electric CA2SK20G7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | CA2SK20G7 |
| SKU #: | 36297 |
| Amperage Rating: | 10 A |
| Coil Voltage: | 120 V AC |
| Contact Form: | 2NO 2 Form A |
| Contact Rating: | 10 A at 690 V AC |
| Dimensions: | 27 mm W x 56 mm H x 55.5 mm D |
| Enclosure Type: | IP2X |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 2 |
| Series: | SK Series |
| Temperature Rating (Degrees F): | -20 to 50 deg C |
| Terminal Type: | Screw Clamp |
| Country of origin: | CZ |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122331 |
| UPC: | 00785901866718 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$58.73 / Each
Quantity:
- Schneider Electric Square D TeSys Control Relay, Series: SK Series, 10 A, 50/60 Hz Frequency, 120 V AC Coil, 2NO 2 Form A Contact Form, 10 A at 690 VAC Contact, 2 Pole, Surface Mounting, Screw Clamp Terminal, IP2X Enclosure, -20 to 50 deg C, 27 mm W x 56 mm H x 55.5 mm D Dimensions
CA2SK20G7 Application
Control Circuit ApplicationsCA2SK20G7 Item Features
- High durability and stable performance - up to 20 cycles/min for operating rates
- Reliable in high and low temperature environment
- Modularity design and compact size for easy maintenance, save time and space on installation
CA2SK20G7 Standards
CCN NKCR|CSA File No. LR12721 Class 321103|cULus Listed|DEMKO Certified|IEC Certified|RoHS Compliant|SEMKO Certified|SEV Certified|UL File No. E148.39|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #36297Part Number #CA2SK20G7UNSPSC39122331UPC00785901866718
Image provided may only be a representation of final product and may include optional equipment
