CA2SKE20T7

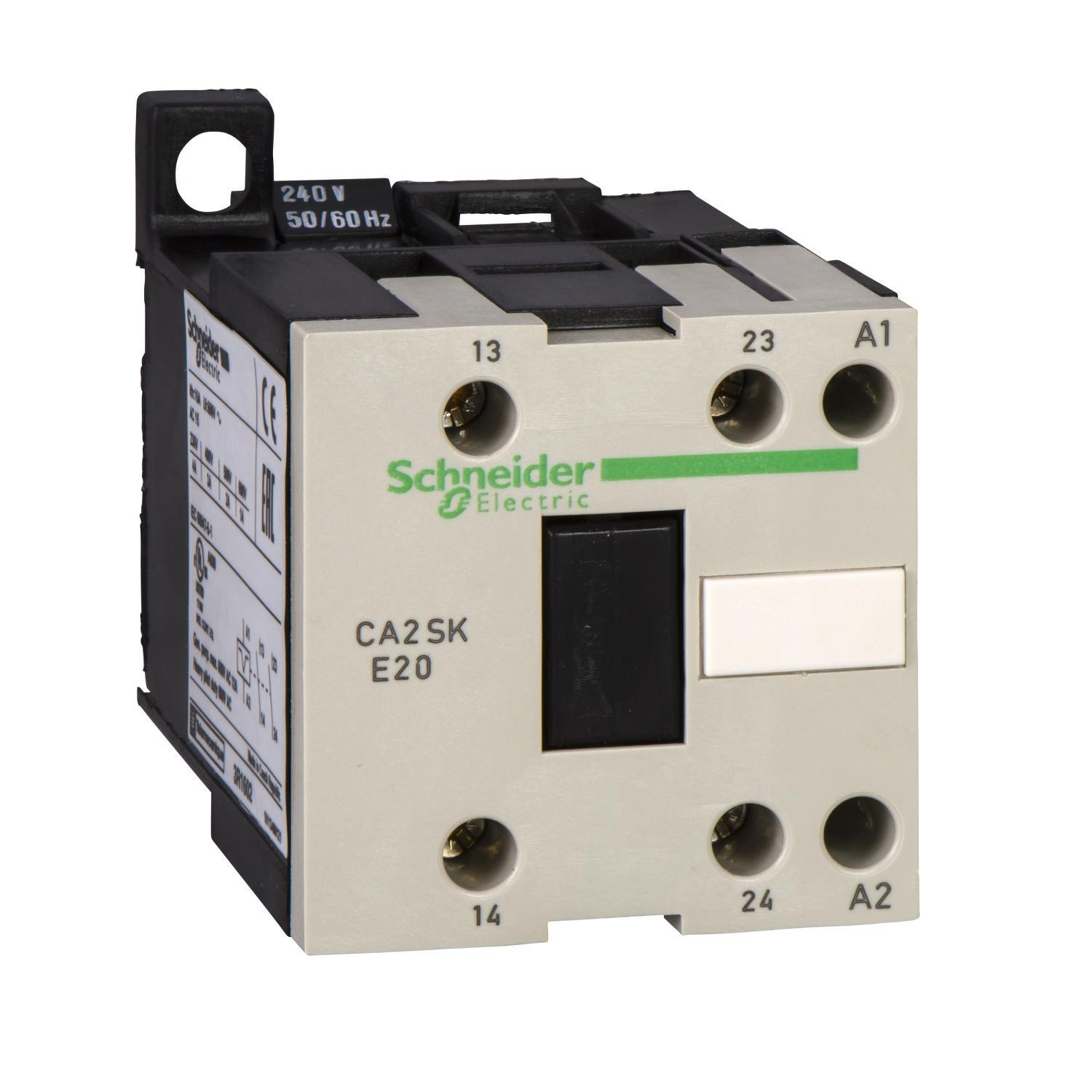

Schneider Electric CA2SKE20T7 Tesys Iec Control Relay
Part Number # CA2SKE20T7
SKU # 305990
$159.14 / Each
Typical price:$161.16 / Each
Schneider Electric CA2SKE20T7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | CA2SKE20T7 |
| SKU #: | 305990 |
| Amperage Rating: | 10, 10 A |
| Coil Voltage: | 480, 480 V AC, 480 VAC |
| Contact Form: | 2NO, 2NO 2 Form A |
| Contact Rating: | 10 A at 690 V AC, 10 A at 690 VAC |
| Dimensions: | 2.2 in H x 1.06 in W x 2.19 in D, 27 mm W x 55.5 mm D x 56 mm H |
| Enclosure Type: | IP2X |
| Frequency Rating: | 400, 400 Hz |
| Series: | SK, SK Series |
| Temperature Rating (Degrees F): | -20 to 50 deg C, -4 to 122 |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Country of origin: | CZ |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122327 |
| UPC: | 00785901326557 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$159.14 / Each
Typical price:$161.16 / Each
Quantity:
- Schneider Electric Square D TeSys IEC Control Relay, Series: SK, 10 A, 400 Hz Frequency, 480 VAC Coil, 2NO 2 Form A Contact Form, 10 A at 690 V AC Contact, Surface Mounting, Screw Clamp Terminal, IP2X Enclosure, -20 to 50 deg C, 27 mm W x 55.5 mm D x 56 mm H Dimensions
CA2SKE20T7 Application
For use with control circuit applicationsCA2SKE20T7 Item Features
- 690 VAC conforming to CSA C22.2 No 14, 690 VAC conforming to BS 5424, 690 VAC conforming to IEC 60947, 690 VAC conforming to VDE 0110 group C, 690 VAC conforming to UL 508 rated insulation voltage
- 6 to 8 ms coil de-energization and no opening and 7 to 14 ms coil energization and no closing operating time
- 1200 cycles/hr operating rate
- 1.5 W heat dissipation
- -58 to 158 deg F storage temperature
- 690 VAC system voltage
CA2SKE20T7 Standards
BS 5424|CSA Certified|cULus Listed|ECCN: EAR99|IEC 60947|NF C 63-110|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|RoHS Compliant|VDE 0660SKU #305990Part Number #CA2SKE20T7UNSPSC39122327UPC00785901326557
