Part Number # CA3KN313BD3
SKU # 2445626

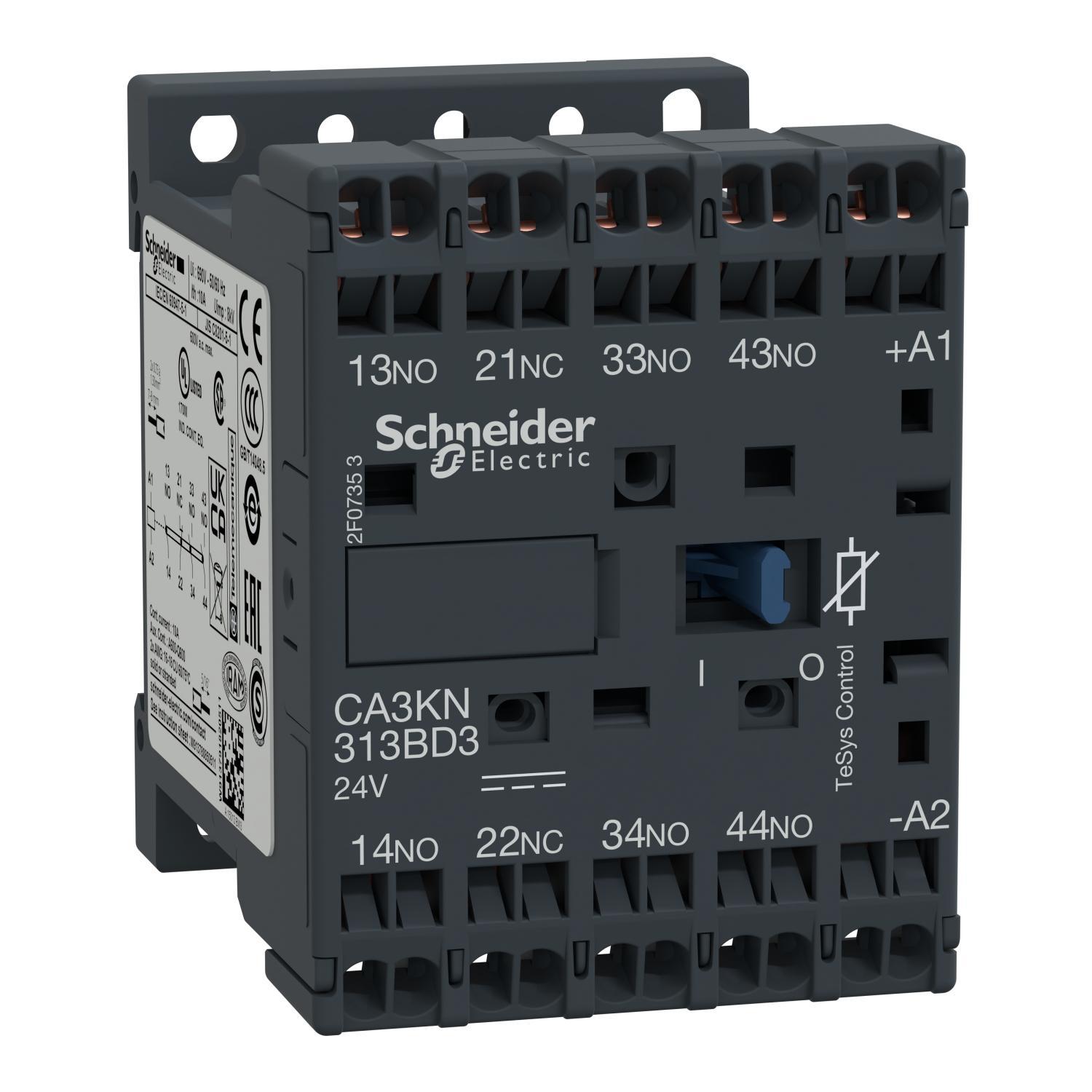

Image provided may only be a representation of
final product and may include optional equipment
Brand: Schneider Electric
CA3KN313BD3
Schneider Electric CA3KN313BD3
Part Number # CA3KN313BD3
SKU # 2445626
$77.89 / Each
Typical price:$78.88 / Each
Schneider Electric CA3KN313BD3 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | CA3KN313BD3 |
| SKU #: | 2445626 |
| Amperage Rating: | 10 A |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Form: | 3NO-1NC, 3NO-1NC 3 Form A/1 Form B |
| Contact Rating: | 110 A at 690 V |
| Dimensions: | 45 mm W x 57 mm D x 58 mm H |
| Enclosure Type: | IP2X |
| Series: | CA3K |
| Temperature Rating (Degrees F): | -25 to 50 deg C |
| Terminal Type: | Spring |
| Country of origin: | FR |
| Mounting type: | DIN Rail/Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122331 |
| UPC: | 03389110701678 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$77.89 / Each
Typical price:$78.88 / Each
Quantity:
Schneider Electric CA3KN313BD3
Brand: Schneider Electric
Part Number: CA3KN313BD3
Schneider Electric,CONTROL RELAY 600V 10AMP IEC + OPTIONS,-25...50 °C,10 A at <= 50 °C,3 NO + 1 NC,TeSys,control circuit,control relay,plate-rail
Additional Description: SQD -CA3KN313BD3 RELAY SPRING TERMINALS
Catalog Description: Control relay, TeSys K, 3 NO + 1 NC, lt or eq to 690V, 24VDC standard coil
CA3KN313BD3 Application
For industrial applicationCA3KN313BD3 Standards
BS 5424|CSA Certified|ECCN: EAR99|IEC 60947|NF C63-140|NF F 16-101|NF F 16-102|Green Premium|RoHS Compliant|UL 94|VDE 0660|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.govSKU #2445626Part Number #CA3KN313BD3UNSPSC39122331UPC03389110701678
