Brand: Schneider Electric
CA3SK11BD

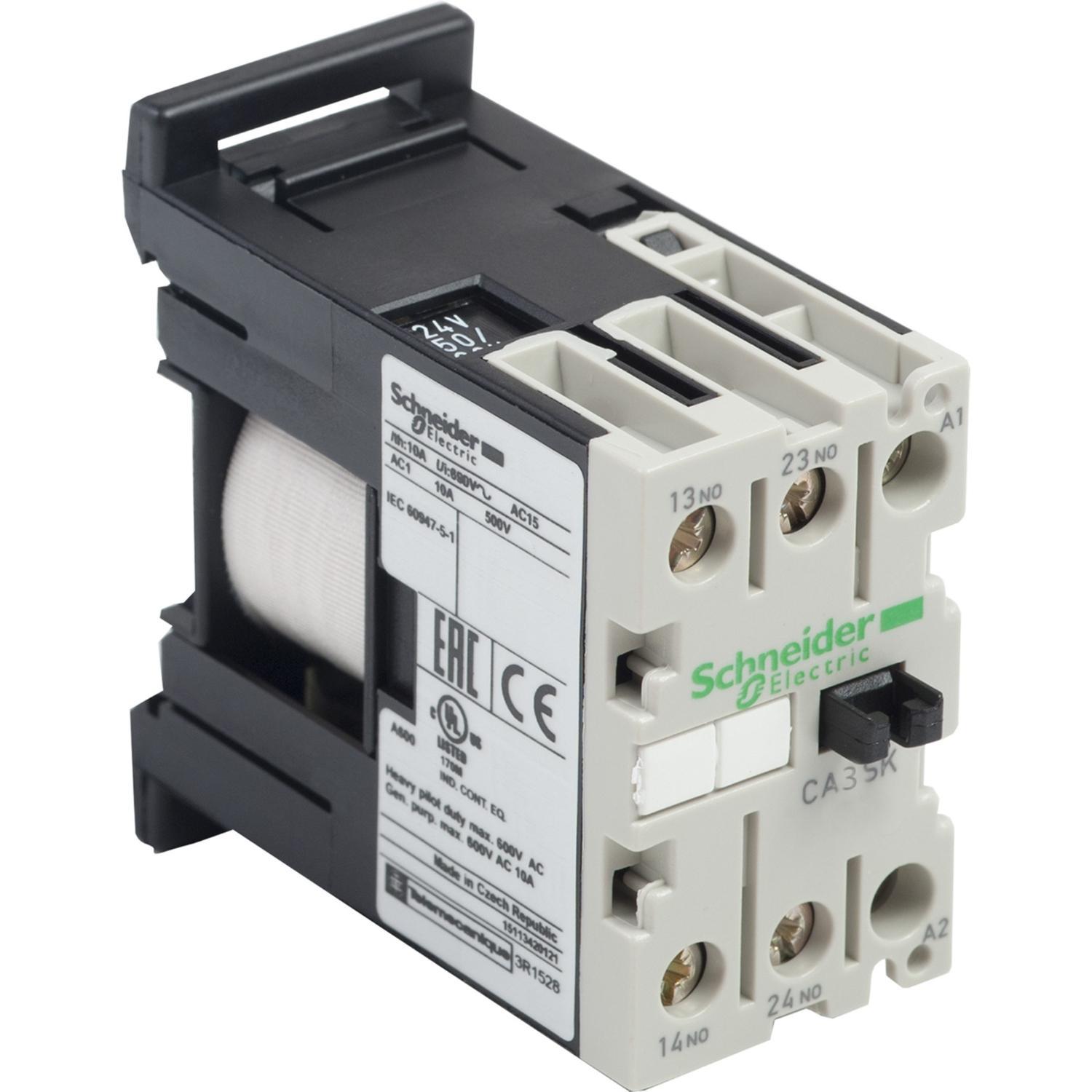

Schneider Electric CA3SK11BD Tesys Control Relay
Part Number # CA3SK11BD
SKU # 36308
$67.61 / Each
Typical price:$68.47 / Each
Schneider Electric CA3SK11BD Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | CA3SK11BD |
| SKU #: | 36308 |
| Amperage Rating: | 10, 10 A |
| Coil Voltage: | 110, 110 V DC, 110 VDC |
| Contact Form: | 1NC-1NO, 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Contact Rating: | 10 A at 690 V AC, 10 A at 690 VAC |
| Dimensions: | 1.06 in W x 2.19 in D x 2.2 in H |
| Enclosure Type: | IP2X |
| Frequency Rating: | 400, 400 Hz |
| Series: | SK Series |
| Temperature Rating (Degrees F): | -20 to 50, -20 to 50 deg C |
| Terminal Type: | Screw Clamp |
| Country of origin: | US |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122331 |
| UPC: | 00785901866749 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$67.61 / Each
Typical price:$68.47 / Each
Quantity:
- Schneider Electric Square D TeSys Control Relay, Series: SK Series, 10 A, 400 Hz Frequency, 110 VDC Coil, 1NO-1NC 1 Form A/1 Form B Contact Form, 10 A at 690 V AC Contact, Surface Mounting, Screw Clamp Terminal, IP2X Enclosure, -20 to 50 deg C, 1.06 in W x 2.19 in D x 2.2 in H Dimensions
CA3SK11BD Application
Control Circuit ApplicationsCA3SK11BD Item Features
- 690 VAC conforming to CSA C22.2 No 14, 690 VAC conforming to BS 5424, 690 VAC conforming to IEC 60947, 690 VAC conforming to VDE 0110 group C, 690 VAC conforming to UL 508 rated insulation voltage
- 10 to 18 ms coil energization and NC opening, 4 to 6 ms coil de-energization and no opening, 8 to 12 ms coil energization and NO closing, 6 to 8 ms coil de-energization and NC closing operating time
- 1200 cycles/hr operating rate
- -58 to 158 deg F storage temperature
- 690 VAC system voltage
CA3SK11BD Standards
BS 5424|Buy American Act Compliant|CSA Certified|cULus Listed|IEC 60947|NFC 63-110|RoHS Compliant|UL Listed|VDE 0660|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #36308Part Number #CA3SK11BDUNSPSC39122331UPC00785901866749
